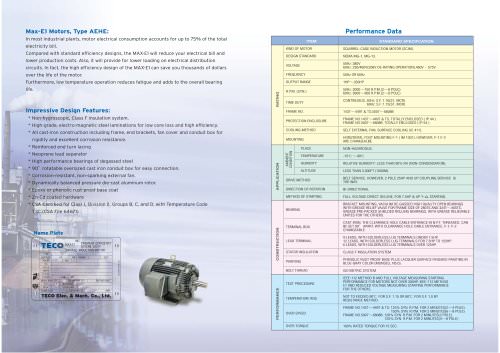

Premium Efficiency - 2 / 4 Pages

Max-E1 Motors, Type AEHE:

In most industrial plants, motor electrical consumption accounts for up to 75% of the total

electricity bill.

Compared with standard efficiency designs, the MAX-E1 will reduce your electrical bill and

lower production costs. Also, it will provide for lower loading on electrical distribution

circuits. In fact, the high efficiency design of the MAX-E1 can save you thousands of dollars

over the life of the motor.

Furthermore, low temperature operation reduces fatigue and adds to the overall bearing

life.

Impressive Design Features:

* Non-hygroscopic, Class F insulation system.

* High-grade, electro-magnetic steel laminations for low core loss and high efficiency.

* All cast-iron construction including frame, end brackets, fan cover and conduit box for

rigidity and excellent corrosion resistance.

* Reinforced end turn lacing

* Neoprene lead separator

* High performance bearings of degassed steel

* 90° rotatable oversized cast iron conduit box for easy connection.

* Corrosion-resistant, non-sparking external fan.

* Dynamically balanced pressure die-cast aluminum rotor.

* Epoxy or phenolic rust-proof base coat

n-Cd coated hardware

1 CSA Certified for Class I, Division 2, Groups B, C, and D, with Temperature Code

T3C.(CSA File 64671)

lame Plate

TEC©'

PREMIUM EFFICIENCY

SEVERE DUTY

3-PHASE INDUCTION MOTOR

OUTPUT

POLES

VOLTS

AMPS

NENA. NOM. EFF. NEMA. MIN. EFF.

sTF 1.15 BEARINGS I

RATING CONT.

V NETWORK AT

TECO Elec. & Mach. Co., Ltd.

Performance Data





RATING

KIND OF MOTOR

SQUIRREL-CAGE INDUCTION MOTOR (SCIM).

DESIGN STANDARD

NEMAMG-1, MG-13.

VOLTAGE

50Hz: 380V

60Hz: 230/460V(208V DE-RATING OPERATION),460V - 575V

FREQUENCY

50Hz OR 60Hz

OUTPUT RANGE

1HP~-350HP

R.P.M. (SYN.)

50Hz: 3000~750 R.P.M.(2~8 POLE)

60Hz: 3600~900 R.P.M.(2~8 POLE)

TIME DUTY

CONTINUOUS, 50Hz: S.F. 1.10(S1, MCR)

60Hz: S.F. 1.15(S1, MCR)

FRAME NO.

143T—449T & TS,5007~6808B

PROTECTION ENCLOSURE

FRAME N0.143T~449T & TS: TOTALLY ENCLOSED ( IP 44 )

FRAME N0.5007~6808B: TOTALLY ENCLOSED ( IP 54 )

COOLING METHOD

SELF EXTERNAL FAN, SURFACE COOLING (IC 411).

MOUNTING

HORIZONTAL FOOT MOUNTING F-1 (IM 1001), HOWEVER, F-1.F-2

ARE CHANGEALBE.

APPLICATION

AMBIENT

CONDITION

PLACE

NON-HAZARDOUS.

TEMPERATURE

-15^C -^4QX^

HUMIDITY

RELATIVE HUMIDITY: LESS THAN 90% RH (NON-CONDENSATION).

ALTITUDE

LESS THAN 3.300FT (1000M).

DRIVE METHOD

BELT SERVICE, HOWEVER, 2 POLE 25HP AND UP COUPLING SERVICE IS

THE WAY.

DIRECTION OF ROTATION

BI-DIRECTIONAL

METHOD OF STARTING

FULL VOLTAGE DIRECT ON LINE, FOR 7.5HP & UP Y-A STARTING.

CONSTRUCTION

BEARING

BRACKET MOUNTING, VACUUM DE-GASSED HIGH QUALITY OPEN BEARINGS

WITH GREASE RELIEF VALVE FOR FRAME SIZE OF 280TS AND 324T~405TS,

GREASE PRE-PACKED SHIELDED ROLLING BEARINGS, WITH GREASE RELIEVABLE

UNITES FOR THE OTHERS.

TERMINAL BOX

CAST IRON, THE CLEARANCE HOLE CABLE ENTRANCE IN N.P.T. THREADED, CAN

BE SET 90" APART, WITH CLEARANCE HOLE CABLE ENTRANCE, F-1, F-2

CHANGEABLE.

LEAD TERMINAL

9 LEADS, WITH SOLDERLESS LUG TERMINALS UNDER 7.5HP.

12 LEADS, WITH SOLDERLESS LUG TERMINALS FOR 7.5HP TO 125HP.

6 LEADS, WITH SOLDERLESS LUG TERMINALS OVER 125HP.

STATOR INSULATION

CLASS F INSULATION SYSTEM

PAINTING

PHENOLIC RUST PROOF BASE PLUS LACQUER SURFACE FINISHED PAINTING IN

BLUE-GRAY COLOR (MUNSELL N5.0).

BOLT THREAD

ISO METRIC SYSTEM

PERFORMANCE

TEST PROCEDURE

IEEE-112 METHOD B AND FULL VOLTAGE MEASURING STARTING

PERFORMANCE FOR MOTORS NOT OVER 300HP, IEEE-112 METHOD

E1 AND REDUCED VOLTAGE MEASURING STARTING PERFORMANCE

FOR THE OTHERS.

TEMPERATURE RISE

NOT TO EXCEED 90r FOR S.F. 1.15 OR 80r FORS.F.1.0BY

RESISTANCE METHOD.

OVER SPEED

FRAME N0.143T—449T & TS: 125% SYN. R.P.M. FOR 2 MINUTES(2—4 POLE)

150% SYN. R.P.M. FOR 2 MINUTES(6~8 POLE)

FRAME N0.5007—6808B: 120% SYN. R.P.M. FOR 2 MINUTES(2 POLE)

125% SYN. R.P.M. FOR 2 MINUTES(4—8 POLE)

OVER TORQUE

160% RATED TORQUE FOR 15 SEC.

Premium Efficiency
  1. P. 1

    HEAD OFFICE Teco Electric & Machinery Co., Ltd 10F No,3-1, Yuan Cyu St. Nan-Kang Taipei 115 Taiwan ROC Tel:+886 2 6615 9111 www.teco.com.tw UNITED...
  2. P. 2

  3. P. 3

    Dimensions Totally-Enclosed Fan-Cooled Horizontal Foot-Mounted, Type AEHE KEY LENGTH FIG. 1 FIG. 2                         1.510.75 143T12.754.00  0.342.256.75.112.34  3.50.3514 5.8421.521 145T2.755.00  0.342.256.75.913.32  3.50.3514 6.32331.51182T23.754.50  0.412.758.85.914.71  450.651.75 6.965521.5184T3.755.50  0.412.758.86.915.73  450.651.75 7.487.57.532213T4.255.50  0.413.59.856.917.98  5.250.71.75 8.35101053215T4.257.00  0.413.59.858.3519/48  5.250.71.75 9.115157.55254T35.008.25  0.534.2511.89.8523.7  6.250.651.95 11.332020107.5256T5.0010.00  0.534.2511.811£25/44  6.250.651.95 12.1925   284TS45.509.50  0.534.751411.725/43  70.72.95 12.6B 251510284T5.509.50  0.534.751411.726.8  70.72.95 12.6830   286TS5.5011.00  0.534.751413.226.93  70.72.95 13.43 302015286T35.5011.00  0.534.751413.228.3  70.72.95 13.4340   324TS46.2510.50  0.665.2515.7512828/43  81.13.15 14.18 402520324T6.2510.50  0.665.2515.7512£29.93  81.13.15 14.1850   326TS6.2512.00  0.665.2515.75143529.92  81.13.15 14.92 503025326T6.2512.00  0.665.2515.7514353142  81.13.15 14.9260   364TS7.0011.25  0.665.8817.713.7530/44  91.33.55 15.19 604030364T7.0011.25  0.665.8817.713.7532.57  91.33.55 15.1975   365TS7.0012.25  0.665.8817.7147531/42  91.33.55 15.67 755040365T7.0012.25  0.665.8817.7147533.55  91.33.55 15.67  6050404T8.0012.25  0.816.6219.715.1536.3  101.553.95 16.3100   405TS8.0013.75  0.816.6219.716.7534.8  101.553.95 17.05 1007560405T8.0013.75  0.816.6219.716.7537.8  101.553.95 17.05 ★...
  4. P. 4

    Dimensions Totally-Enclosed Fan-Cooled Horizontal Foot-Mounted, Type AEHE L M N-W CL2 2F2 ...
