Catalog excerpts

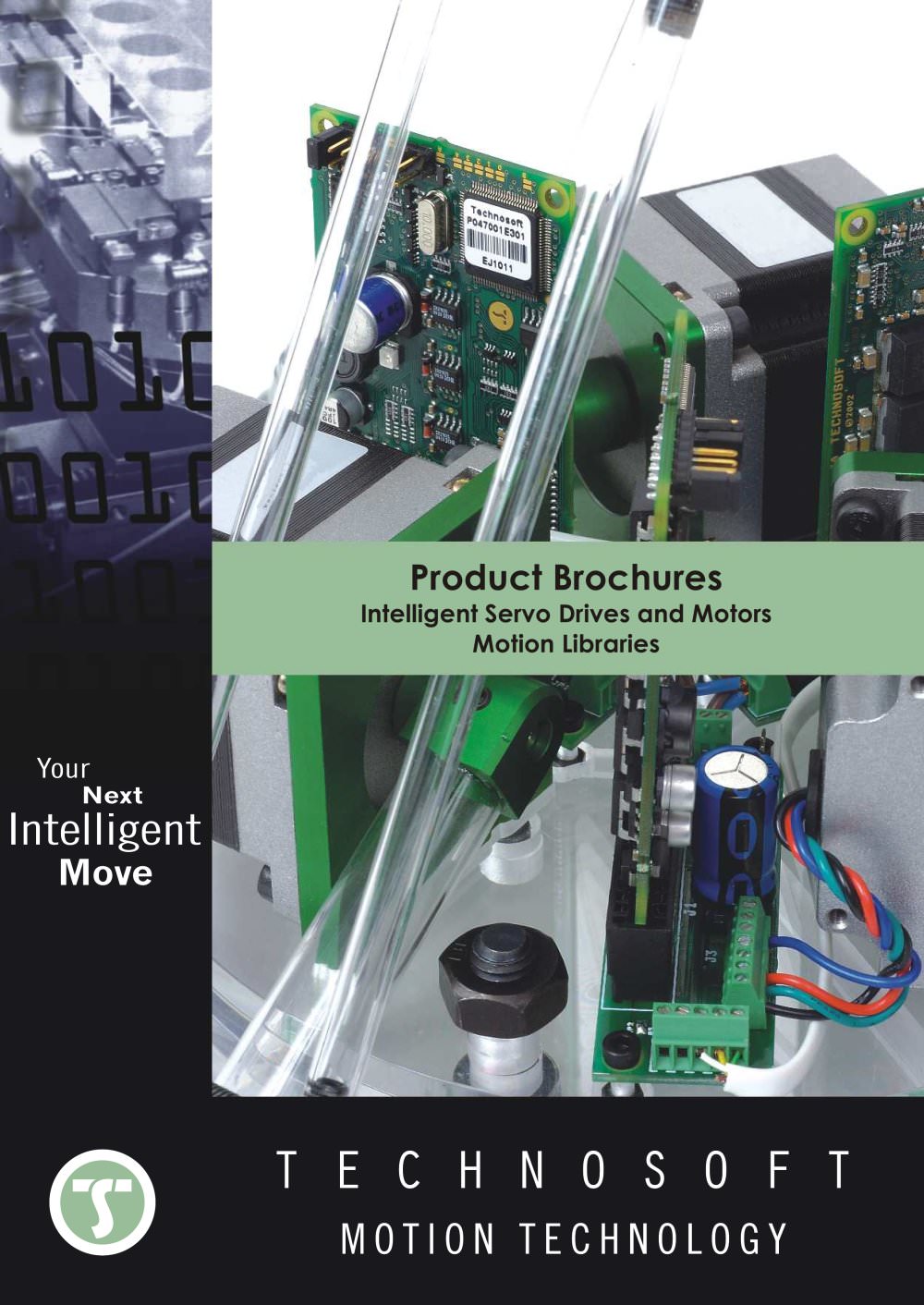

Technosoft Product Brochures-1

Intelligent Servo Drives and MotorsMotion Libraries >

 Open the catalog to page 1
Technosoft Product Brochures-4

D > IGITAL D > RIVE FOR B > RUSHLESS , DC B > RUSH , L > INEAR AND S > TEP M > OTORS The PIM2401 is a new Technosofthigh-performance intelligent plug-in control module, combining motion controller, drive and PLC functionality in asingle compact unit.The PIM2401 drive is a flexible,cost effective and compact solu- tion, particularly adapted for distributed and co-ordinated control of brushless, DC, linear or step motors of powers up to 25W, with voltages up to 24V. Typical applications include dis- tributed motor control with possi- bilities of gearing and electronic CAM functions in a CAN network...

 Open the catalog to page 4
Technosoft Product Brochures-5

Dimensions in mmDrawings not to scale [email protected] Motor TypesPositioncontrol Torquecontrol Speedcontrol EASTERN EUROPE Tel.: +40 (0)21 425 90 95Fax: +40 (0)21 425 90 97 Brushless DC / ACDC Brush Linear Step [email protected] UNITED STATES Tel.: +1 734 667 5275Fax: +1 734 667 5276 [email protected] > P091.035.PIM2401 LFT.0309 www.technosoftmotion.com >

 Open the catalog to page 5
Technosoft Product Brochures-6

OTORS The PIM2403 is a new Technosofthigh-performance intelligent plug-in control module, combining motion controller, drive and PLC functionality in asingle compact unit.The PIM2403 drive is a flexible,cost effective and compact solu- tion, particularly adapted for distributed and co-ordinated control of brushless, DC, linear or step motors of powers up to 75W, with voltages up to 24V. Typical applications include dis- tributed motor control with possi- bilities of gearing and electronic CAM functions in a CAN network operation (optional configura- tion). The PIM2403 hardware structure is based...

 Open the catalog to page 6
Technosoft Product Brochures-7

Ordering Information > OTION ONTROL IBRARIES HeadquartersSWITZERLAND > [email protected] Motor TypesPositioncontrol Torquecontrol Speedcontrol EASTERN EUROPE Tel.: +40 (0)21 425 90 95Fax: +40 (0)21 425 90 97 Brushless DC / ACDC Brush Linear Step [email protected] UNITED STATES Tel.: +1 734 667 5275Fax: +1 734 667 5276 [email protected] > P091.037.PIM2403 LFT.0309 www.technosoftmotion.com >

 Open the catalog to page 7
Technosoft Product Brochures-8

D > IGITAL M > OTOR C > ONTROL FOR B > RUSHLESS , DC B > RUSH , L > INEAR AND S > TEP M > OTORS The ISCM4805 and ISCM8005are new Technosoft high-perfor- mance intelligent servo modules, combining motion controller, drive and PLC functionality in asingle compact unit.The ISCM modules are flexible,cost effective and compact solu- tions, particularly adapted for distributed and co-ordinated control of brushless, DC, linear or step motors of powers up to 240W, with voltages up to 80V. Typical applications include dis- tributed motor control with possi- bilities of gearing and electronic CAM functions...

 Open the catalog to page 8
Technosoft Product Brochures-9

A1A2A3A4A5A6A7A8A9A10A11 A12A13A14A15A17 +V MOT A / A+B / A- C / B+BRAKE / B-+5VENCA+ENCB+ENCZ+ / CAPIPULSE/ IOLSP ENABLE / AUTOGNDCAN_HTX232FEEDBACK / IOHALL_1 A16 B1B2 B3B4B5 B6B7B8 B9 B10B11B12B13B14 B15 B16 +V MOT A / A+B / A-C / B+BRAKE / B- LOG _ /LH1 CAN_LGND +V _ /LH2ENCA _ /LH3ENCB _ 2ENCZ HALL _ 3HALL LSN REF / DIR / IORX232 B17 Drawings not to scale > DC supply voltage: logic 12-48V motor 12-48V 12-80V Maximum continuous current 5A Peak current (100 ms. max.) 16A Minimal load inductance 200 microHenry* 330 microHenry* Nominal switching frequency 20kHz Operating ambient temperature...

 Open the catalog to page 9
Technosoft Product Brochures-12

D > IGITAL M > OTOR C > ONTROL FOR B > RUSHLESS , DC B > RUSH , L > INEAR AND S > TEP M > OTORS The ISM4803 is a new Technosofthigh-performance intelligent servo module, combining motion controller, drive and PLC functionality in a single compactunit.The ISM module is a flexible, costeffective and compact solution, particularly adapted for distributed and co-ordinated control of brushless, DC, linear or step motors of powers up to 150W, with voltages up to 48V. Typical applications include dis- tributed motor control with possi- bilities of gearing and electronic CAM functions in a CAN network...

 Open the catalog to page 12
Technosoft Product Brochures-13

IBRARIES *at 48V and 20kHz switching frequency > IT P040.001.ExxxTML_LIB Motion Control Library** > **ask for existing libraries types [email protected] BENELUX Tel.: +32 (0)14 21 13 21Fax: +32 (0)14 21 13 23 [email protected] > Motor - sensor configurations EASTERN EUROPE > Standard control schemes supported by the ISM Drive Tel.: +40 (0)21 425 90 95Fax: +40 (0)21 425 90 97 > Motor PMSM BLDC DC STEP STEP Sensor BRUSH (2-ph.) (3-ph.) [email protected] > Encoder UNITED STATES > Encoder + Hall Tel.: +1 734 667 5275Fax: +1 734 667 5276 > Tacho Linear Halls [email protected]...

 Open the catalog to page 13
Technosoft Product Brochures-14

D > IGITAL D > RIVE FOR B > RUSHLESS , DC B > RUSH , L > INEAR AND S > TEP M > OTORS The IBL2401 is a new Technosofthigh-performance intelligent drive, combining motion controller, drive and PLC functionality in a single compactunit.The IBL2401 drive is a flexible,cost effective and compact solu- tion, particularly adapted for distributed and co-ordinated control of brushless, DC, linear and step motors of powers up to 25W, with voltages up to 24V. Typical applications include dis- tributed motor control with possi- bilities of gearing and electronic CAM functions in a CAN network operation (optional...

 Open the catalog to page 14
Technosoft Product Brochures-15

44.0 29.0 3.240.0 Intelligent Servo Drive IBL2401-CAN 50.053.216.0 60.0 Dimensions in mmDrawings not to scale **ask for existing libraries types [email protected] > Motor TypesPositioncontrol Torquecontrol Speedcontrol [email protected] Brushless DC / ACDC Brush Linear Step UNITED STATES Tel.: +1 734 667 5275Fax: +1 734 667 5276 [email protected] > P091.035.LFT.0309 www.technosoftmotion.com >

 Open the catalog to page 15
Technosoft Product Brochures-16

U > NIVERSAL D > RIVE FOR B > RUSHLESS , DC B > RUSH , L > INEAR AND S > TEP M > OTORS The IBL2403 is a new Technosofthigh-performance intelligent drive, combining motion controller, drive and PLC functionality in a single compactunit.The IBL2403 drive is a flexible,cost effective and compact solu- tion, particularly adapted for distributed and co-ordinated control of brushless, DC, linear or step motors of powers up to 75W, with voltages up to 24V. Typical applications include dis- tributed motor control with possi- bilities of gearing and electronic CAM functions in a CAN network operation...

 Open the catalog to page 16
