| IPS110 Intelligent Stepper Minidrive Digital Motor Control for DC and Step Motors | ||||||||||||||||||||||||||
| 25W | ||||||||||||||||||||||||||

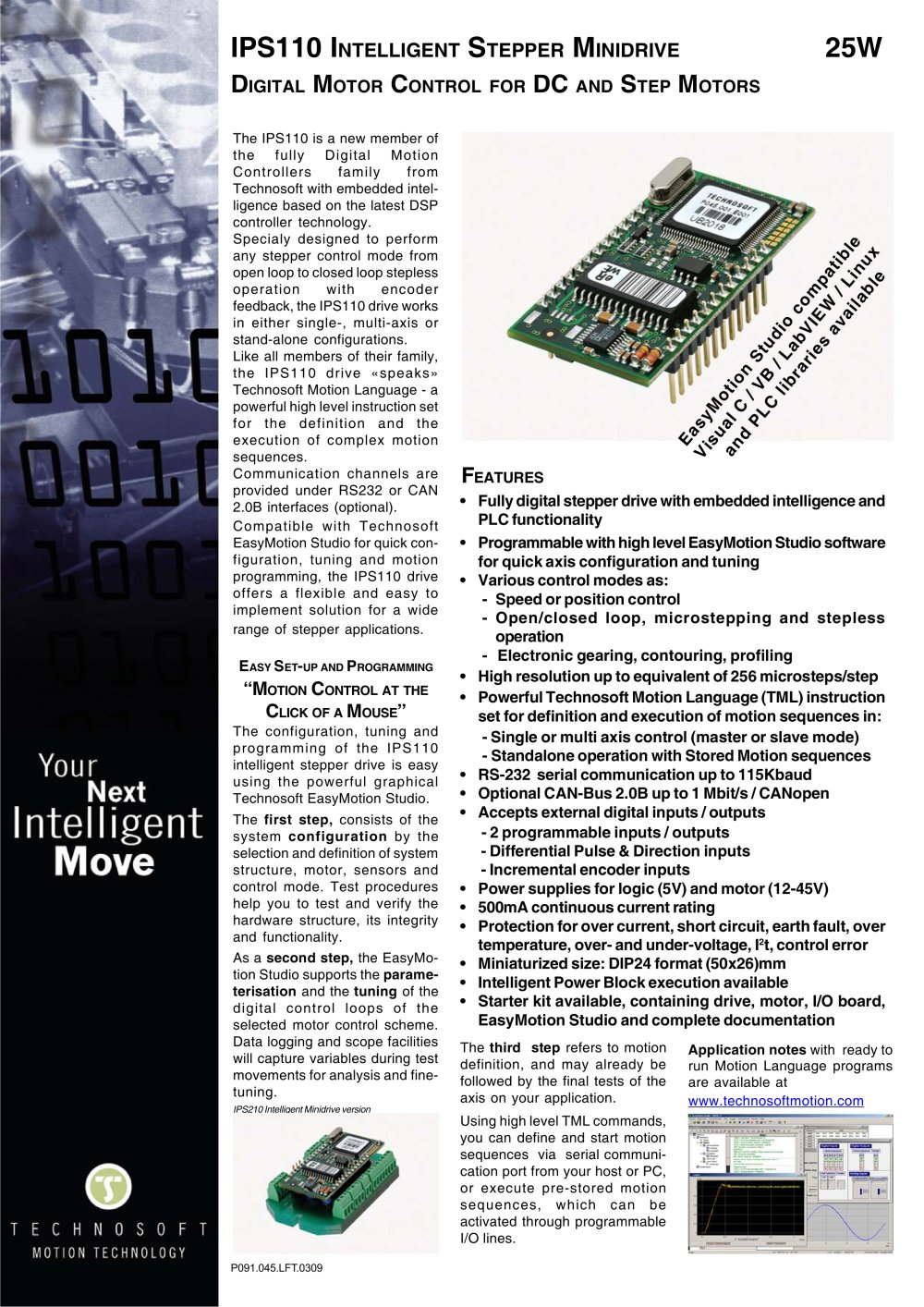

| The IPS110 is a new member of the fully Digital Motion Controllers family from Technosoft with embedded intelligence based on the latest DSP controller technology. Specialy designed to perform any stepper control mode from open loop to closed loop stepless operation with encoder feedback, the IPS110 drive works in either single-, multi-axis or stand-alone configurations. Like all members of their family, the IPS110 drive «speaks» Technosoft Motion Language - a powerful high level instruction set for the definition and the execution of complex motion sequences. Communication channels are provided under RS232 or CAN 2.0B interfaces (optional). Compatible with Technosoft EasyMotion Studio for quick configuration, tuning and motion programming, the IPS110 drive offers a flexible and easy to implement solution for a wide range of stepper applications. Easy Set-up and Programming "Motion Control at the Click of a Mouse" The configuration, tuning and programming of the IPS110 intelligent stepper drive is easy using the powerful graphical Technosoft EasyMotion Studio. The first step, consists of the system configuration by the selection and definition of system structure, motor, sensors and control mode. Test procedures help you to test and verify the hardware structure, its integrity and functionality. As a second step, the EasyMo-tion Studio supports the parame-terisation and the tuning of the digital control loops of the selected motor control scheme. Data logging and scope facilities will capture variables during test movements for analysis and fine-tuning. IPS210 Intelliaent Minidrive version | ||||||||||||||||||||||||||
| S -fi | ||||||||||||||||||||||||||
| <s>°>V | ||||||||||||||||||||||||||
| Features | ||||||||||||||||||||||||||
| Fully digital stepper drive with embedded intelligence and PLC functionality Programmable with high level EasyMotion Studio software for quick axis configuration and tuning Various control modes as: - Speed or position control - Open/closed loop, microstepping and stepless operation - Electronic gearing, contouring, profiling High resolution up to equivalent of 256 microsteps/step Powerful Technosoft Motion Language (TML) instruction set for definition and execution of motion sequences in: - Single or multi axis control (master or slave mode) - Standalone operation with Stored Motion sequences RS-232 serial communication up to 115Kbaud Optional CAN-Bus 2.0B up to 1 Mbit/s / CANopen Accepts external digital inputs / outputs - 2 programmable inputs / outputs - Differential Pulse & Direction inputs - Incremental encoder inputs Power supplies for logic (5V) and motor (12-45V) 500mA continuous current rating Protection for over current, short circuit, earth fault, over temperature, over- and under-voltage, I2t, control error Miniaturized size: DIP24 format (50x26)mm Intelligent Power Block execution available Starter kit available, containing drive, motor, I/O board, EasyMotion Studio and complete documentation | ||||||||||||||||||||||||||
| Your Next Intelligent Move | ||||||||||||||||||||||||||
| The third step refers to motion definition, and may already be followed by the final tests of the axis on your application. Using high level TML commands, you can define and start motion sequences via serial communication port from your host or PC, or execute pre-stored motion sequences, which can be activated through programmable I/O lines. | ||||||||||||||||||||||||||
| Application notes with ready to run Motion Language programs are available at www.technosoftmotion.com | ||||||||||||||||||||||||||
| TECHNOSOFT MOTION TECHNOLOGY | ||||||||||||||||||||||||||
| P091.045.LFT.0309 | ||||||||||||||||||||||||||
