Techniks CNC Router Tooling - Techniks - #9

Text version of the page

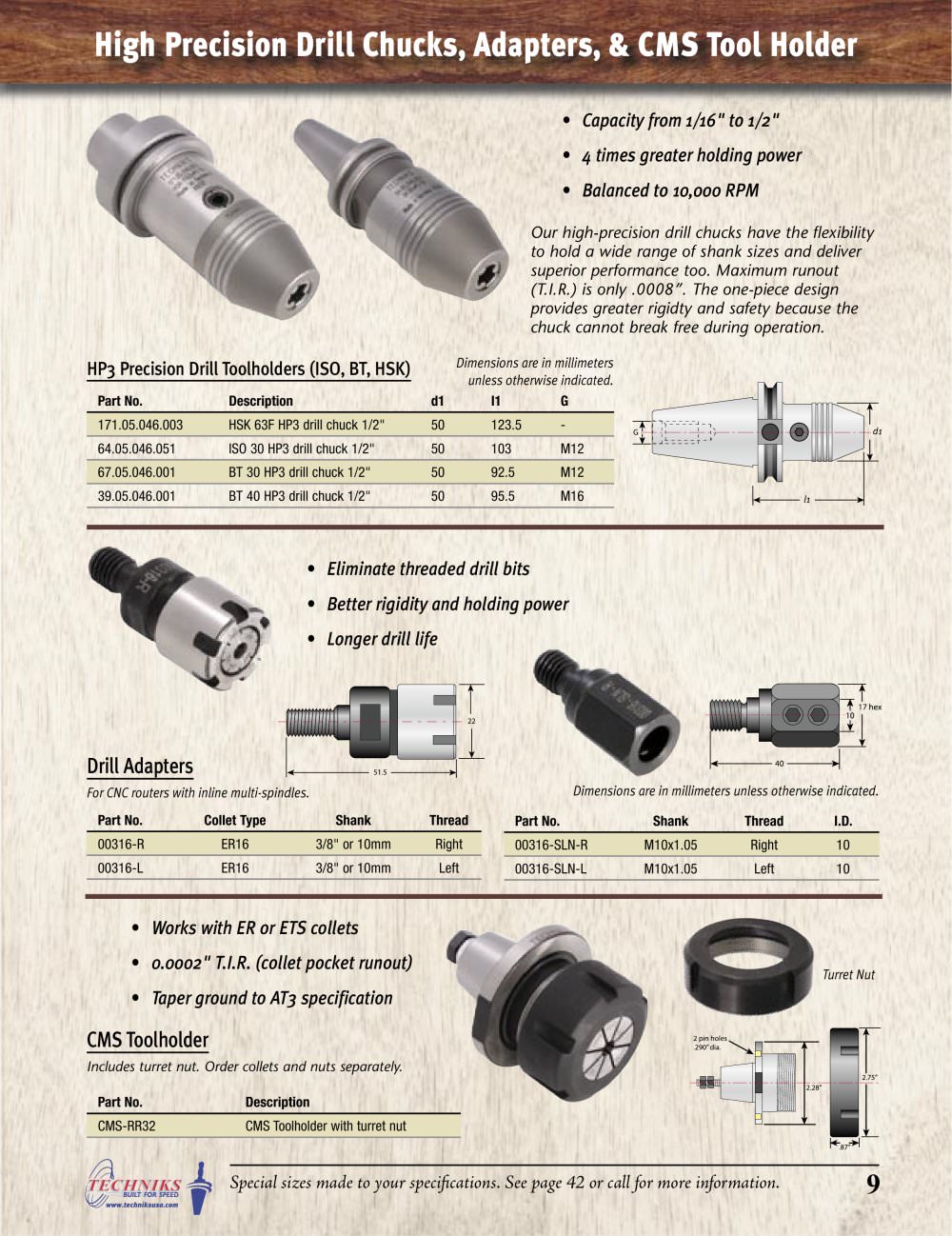

9 High Precision Drill Chucks, Adapters, & CMS Tool Holder • Capacity from 1/16" to 1/2" • 4 times greater holding power • Balanced to 10,000 RPM Part No. Collet Type Shank Thread 00316-R ER16 3/8" or 10mm Right 00316-L ER16 3/8" or 10mm Left Part No. Shank Thread I.D. 00316-SLN-R M10x1.05 Right 10 00316-SLN-L M10x1.05 Left 10 Drill Adapters For CNC routers with inline multi-spindles. CMS Toolholder Includes turret nut. Order collets and nuts separately. Part No. Description CMS-RR32 CMS Toolholder with turret nut • Works with ER or ETS collets • 0.0002" T.I.R. (collet pocket runout) • Taper ground to AT3 specification HP3 Precision Drill Toolholders (ISO, BT, HSK) Part No. Description d1 I1 G 171.05.046.003 HSK 63F HP3 drill chuck 1/2" 50 123.5 - 64.05.046.051 ISO 30 HP3 drill chuck 1/2" 50 103 M12 67.05.046.001 BT 30 HP3 drill chuck 1/2" 50 92.5 M12 39.05.046.001 BT 40 HP3 drill chuck 1/2" 50 95.5 M16 Turret Nut Our high-precision drill chucks have the flexibility to hold a wide range of shank sizes and deliver superior performance too. Maximum runout (T.I.R.) is only .0008”. The one-piece design provides greater rigidty and safety because the chuck cannot break free during operation. • Eliminate threaded drill bits • Better rigidity and holding power • Longer drill life Dimensions are in millimeters unless otherwise indicated. Dimensions are in millimeters unless otherwise indicated. Special sizes made to your specifi cations. See page 42 or call for more information.
