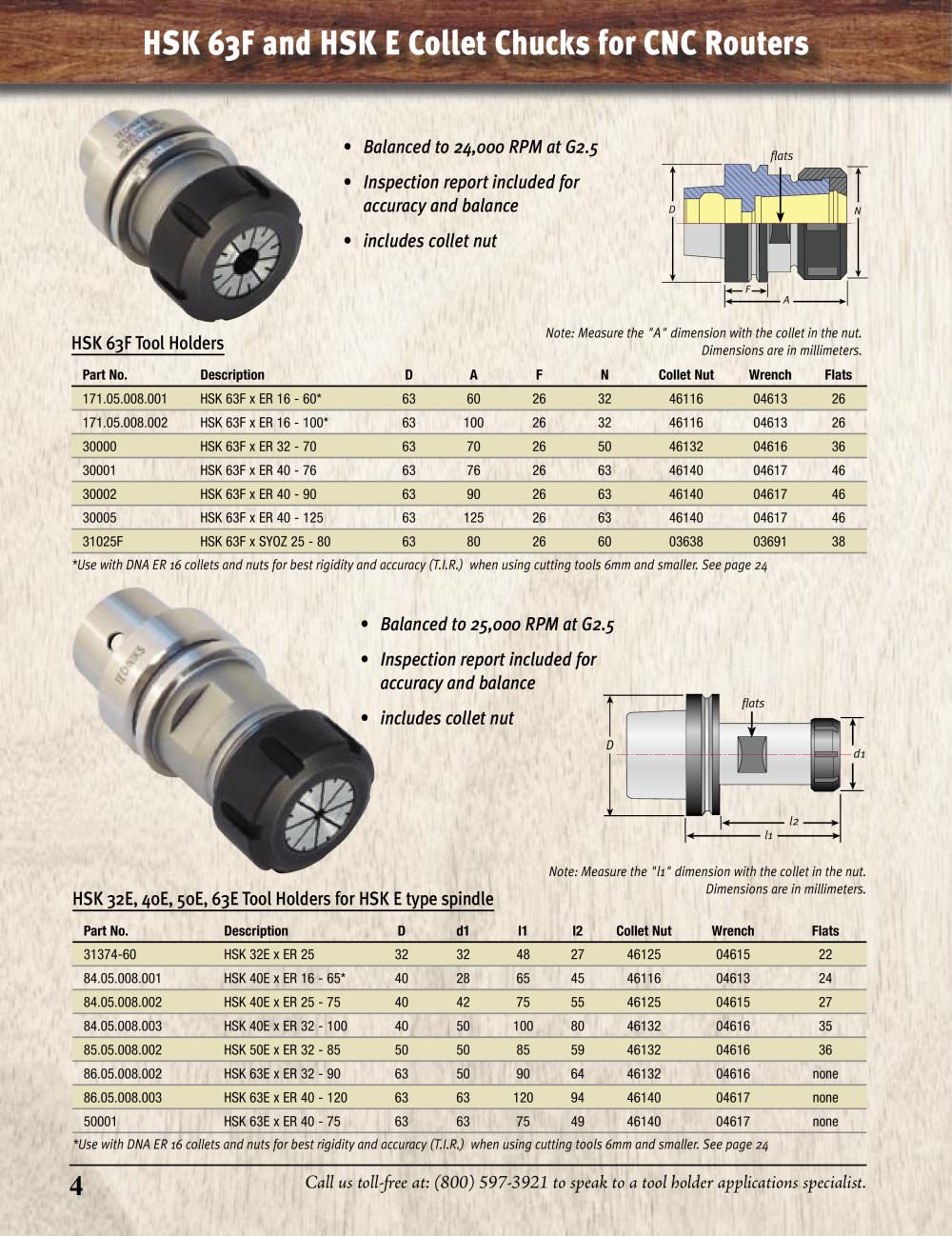

Call us toll-free at: (800) 597-3921 to speak to a tool holder applications s 4 pecialist. HSK 63F and HSK E Collet Chucks for CNC Routers HSK 63F Tool Holders Part No. Description D A F N Collet Nut Wrench Flats 171.05.008.001 HSK 63F x ER 16 - 60* 63 60 26 32 46116 04613 26 171.05.008.002 HSK 63F x ER 16 - 100* 63 100 26 32 46116 04613 26 30000 HSK 63F x ER 32 - 70 63 70 26 50 46132 04616 36 30001 HSK 63F x ER 40 - 76 63 76 26 63 46140 04617 46 30002 HSK 63F x ER 40 - 90 63 90 26 63 46140 04617 46 30005 HSK 63F x ER 40 - 125 63 125 26 63 46140 04617 46 31025F HSK 63F x SYOZ 25 - 80 63 80 26 60 03638 03691 38 *Use with DNA ER 16 collets and nuts for best rigidity and accuracy (T.I.R.) when using cutting tools 6mm and smaller. See page 24 • Balanced to 24,000 RPM at G2.5 • Inspection report included for accuracy and balance • includes collet nut HSK 32E, 40E, 50E, 63E Tool Holders for HSK E type spindle Part No. Description D d1 l1 l2 Collet Nut Wrench Flats 31374-60 HSK 32E x ER 25 32 32 48 27 46125 04615 22 84.05.008.001 HSK 40E x ER 16 - 65* 40 28 65 45 46116 04613 24 84.05.008.002 HSK 40E x ER 25 - 75 40 42 75 55 46125 04615 27 84.05.008.003 HSK 40E x ER 32 - 100 40 50 100 80 46132 04616 35 85.05.008.002 HSK 50E x ER 32 - 85 50 50 85 59 46132 04616 36 86.05.008.002 HSK 63E x ER 32 - 90 63 50 90 64 46132 04616 none 86.05.008.003 HSK 63E x ER 40 - 120 63 63 120 94 46140 04617 none 50001 HSK 63E x ER 40 - 75 63 63 75 49 46140 04617 none *Use with DNA ER 16 collets and nuts for best rigidity and accuracy (T.I.R.) when using cutting tools 6mm and smaller. See page 24 .... .... .... • Balanced to 25,000 RPM at G2.5 • Inspection report included for accuracy and balance • includes collet nut Note: Measure the "l1" dimension with the collet in the nut. Dimensions are in millimeters. Note: Measure the "A" dimension with the collet in the nut. Dimensions are in millimeters. A D N F flats flats
