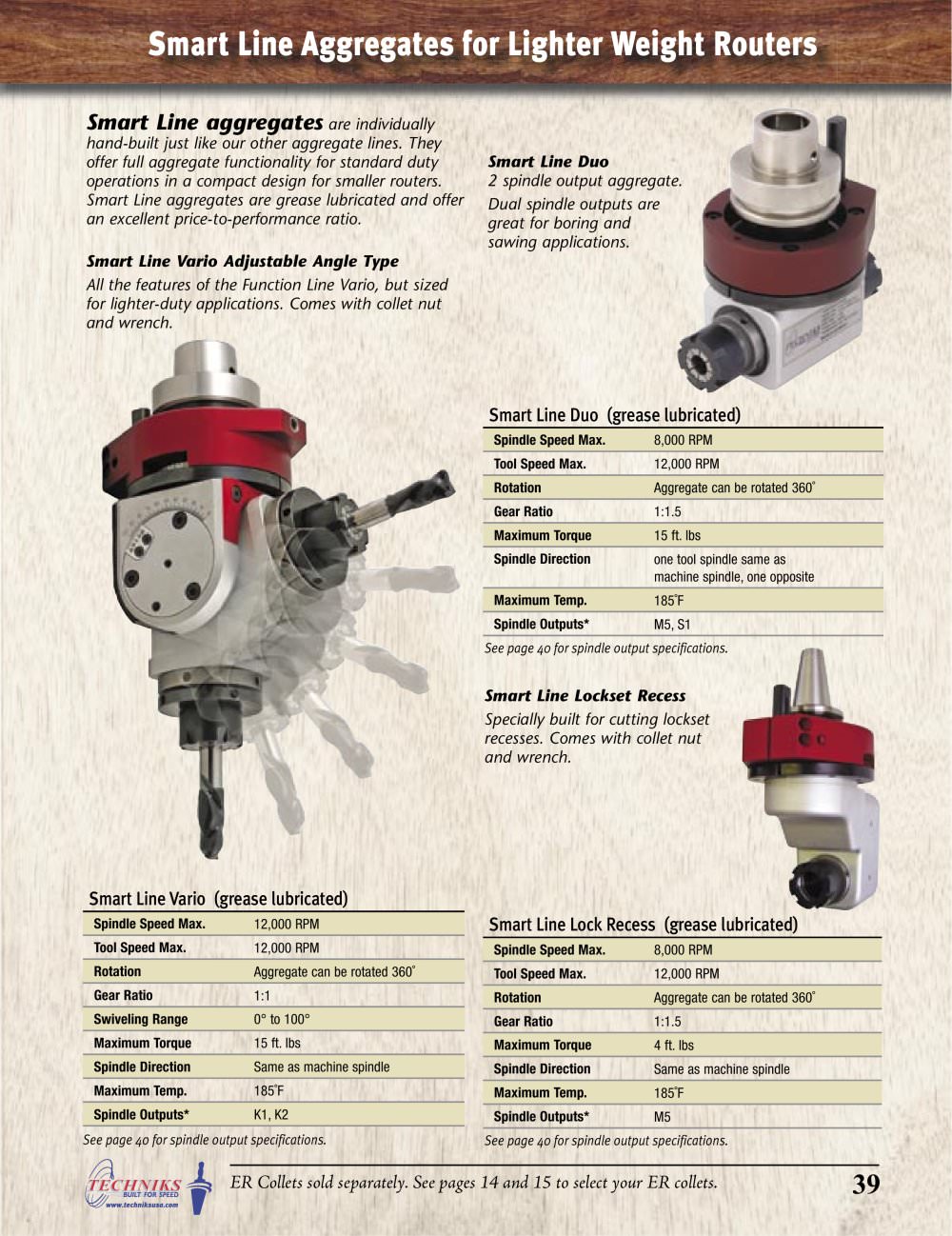

39 Smart Line Aggregates for Lighter Weight Routers Smart Line Vario (grease lubricated) Spindle Speed Max. 12,000 RPM Tool Speed Max. 12,000 RPM Rotation Aggregate can be rotated 360¢ª Gear Ratio 1:1 Swiveling Range 0° to 100° Maximum Torque 15 ft. lbs Spindle Direction Same as machine spindle Maximum Temp. 185¢ªF Spindle Outputs* K1, K2 Smart Line Duo (grease lubricated) Spindle Speed Max. 8,000 RPM Tool Speed Max. 12,000 RPM Rotation Aggregate can be rotated 360¢ª Gear Ratio 1:1.5 Maximum Torque 15 ft. lbs Spindle Direction one tool spindle same as machine spindle, one opposite Maximum Temp. 185¢ªF Spindle Outputs* M5, S1 Smart Line Lock Recess (grease lubricated) Spindle Speed Max. 8,000 RPM Tool Speed Max. 12,000 RPM Rotation Aggregate can be rotated 360¢ª Gear Ratio 1:1.5 Maximum Torque 4 ft. lbs Spindle Direction Same as machine spindle Maximum Temp. 185¢ªF Spindle Outputs* M5 Smart Line aggregates are individually hand-built just like our other aggregate lines. They offer full aggregate functionality for standard duty operations in a compact design for smaller routers. Smart Line aggregates are grease lubricated and offer an excellent price-to-performance ratio. Smart Line Vario Adjustable Angle Type All the features of the Function Line Vario, but sized for lighter-duty applications. Comes with collet nut and wrench. Smart Line Duo 2 spindle output aggregate. Dual spindle outputs are great for boring and sawing applications. Smart Line Lockset Recess Specially built for cutting lockset recesses. Comes with collet nut and wrench. See page 40 for spindle output specifications. See page 40 for spindle output See page 40 for spindle output specifications. specifications. ER Collets sold separately. See pages 14 and 15 to select your ER collets.
