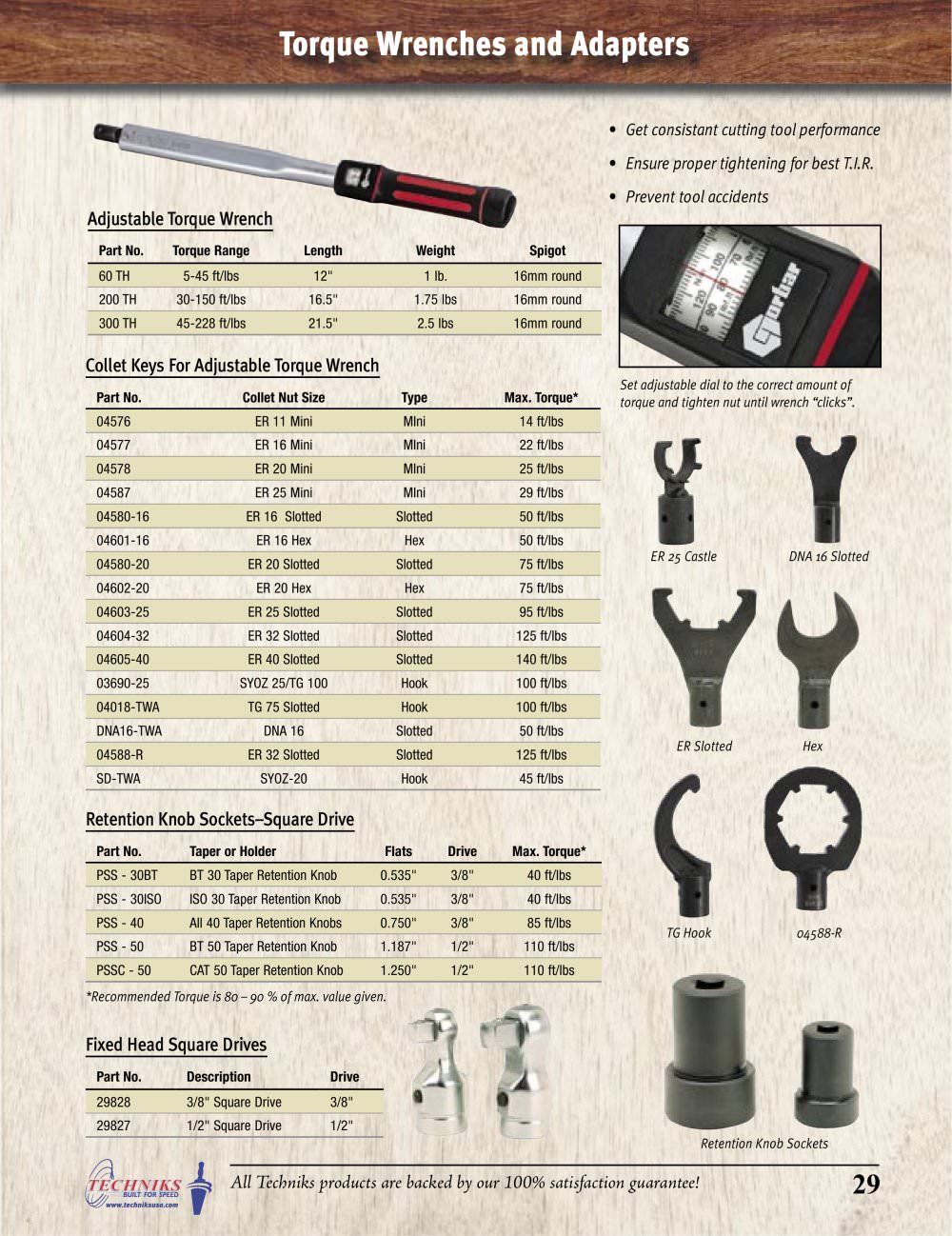

All Techniks products are backed by our 100% satisfaction guarantee! 29 Fixed Head Square Drives Part No. Description Drive 29828 3/8" Square Drive 3/8" 29827 1/2" Square Drive 1/2" Collet Keys For Adjustable Torque Wrench Part No. Collet Nut Size Type Max. Torque* 04576 ER 11 Mini MIni 14 ft/lbs 04577 ER 16 Mini MIni 22 ft/lbs 04578 ER 20 Mini MIni 25 ft/lbs 04587 ER 25 Mini MIni 29 ft/lbs 04580-16 ER 16 Slotted Slotted 50 ft/lbs 04601-16 ER 16 Hex Hex 50 ft/lbs 04580-20 ER 20 Slotted Slotted 75 ft/lbs 04602-20 ER 20 Hex Hex 75 ft/lbs 04603-25 ER 25 Slotted Slotted 95 ft/lbs 04604-32 ER 32 Slotted Slotted 125 ft/lbs 04605-40 ER 40 Slotted Slotted 140 ft/lbs 03690-25 SYOZ 25/TG 100 Hook 100 ft/lbs 04018-TWA TG 75 Slotted Hook 100 ft/lbs DNA16-TWA DNA 16 Slotted 50 ft/lbs 04588-R ER 32 Slotted Slotted 125 ft/lbs SD-TWA SYOZ-20 Hook 45 ft/lbs Adjustable Torque Wrench Part No. Torque Range Length Weight Spigot 60 TH 5-45 ft/lbs 12" 1 lb. 16mm round 200 TH 30-150 ft/lbs 16.5" 1.75 lbs 16mm round 300 TH 45-228 ft/lbs 21.5" 2.5 lbs 16mm round Retention Knob Sockets–Square Drive Part No. Taper or Holder Flats Drive Max. Torque* PSS - 30BT BT 30 Taper Retention Knob 0.535" 3/8" 40 ft/lbs PSS - 30ISO ISO 30 Taper Retention Knob 0.535" 3/8" 40 ft/lbs PSS - 40 All 40 Taper Retention Knobs 0.750" 3/8" 85 ft/lbs PSS - 50 BT 50 Taper Retention Knob 1.187" 1/2" 110 ft/lbs PSSC - 50 CAT 50 Taper Retention Knob 1.250" 1/2" 110 ft/lbs *Recommended Torque is 80 – 90 % of max. value given. Set adjustable dial to the correct amount of torque and tighten nut until wrench “clicks”. • Get consistant cutting tool performance • Ensure proper tightening for best T.I.R. • Prevent tool accidents ER 25 Castle DNA 16 Slotted ER Slotted TG Hook 04588-R Hex Retention Knob Sockets Torque Wrenches and Adapters
