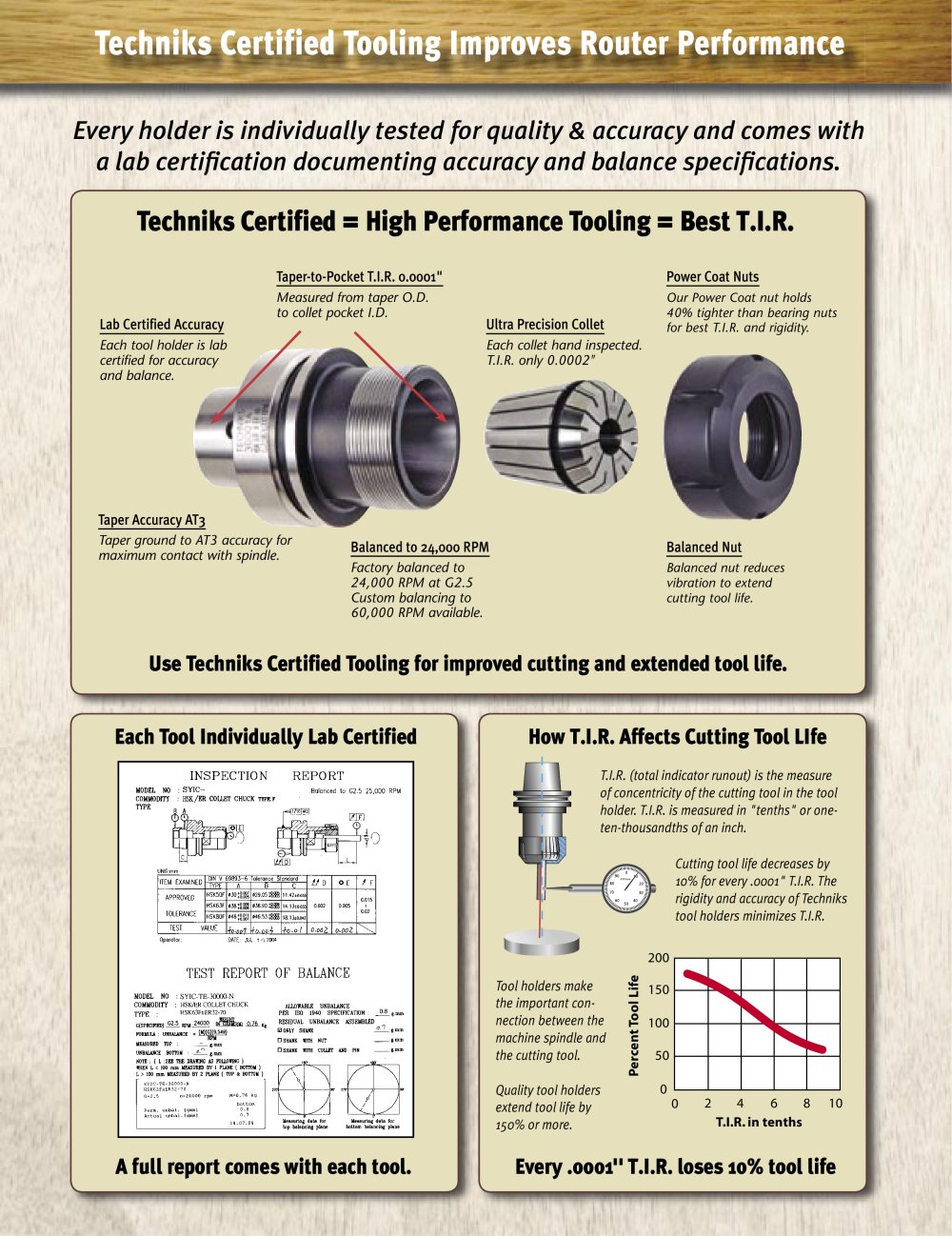

Every holder is individually tested for quality & accuracy and comes with a lab certifi cation documenting accuracy and balance specifi cations. Taper-to-Pocket T.I.R. 0.0001" Measured from taper O.D. to collet pocket I.D. Taper Accuracy AT3 Taper ground to AT3 accuracy for maximum contact with spindle. Power Coat Nuts Our Power Coat nut holds 40% tighter than bearing nuts for best T.I.R. and rigidity. Balanced Nut Balanced nut reduces vibration to extend cutting tool life. Techniks Certified Tooling Improves Router Performance Balanced to 24,000 RPM Factory balanced to 24,000 RPM at G2.5 Custom balancing to 60,000 RPM available. Lab Certified Accuracy Each tool holder is lab certified for accuracy and balance. Ultra Precision Collet Each collet hand inspected. T.I.R. only 0.0002" Techniks Certified = High Performance Tooling = Best T.I.R. Use Techniks Certified Tooling for improved cutting and extended tool life. Each Tool Individually Lab Certified How T.I.R. Affects Cutting Tool LIfe T.I.R. (total indicator runout) is the measure of concentricity of the cutting tool in the tool holder. T.I.R. is measured in "tenths" or oneten- thousandths of an inch. Every .0001" T.I.R. loses 10% tool life Cutting tool life decreases by 10% for every .0001" T.I.R. The rigidity and accuracy of Techniks tool holders minimizes T.I.R. A full report comes with each tool. Tool holders make the important connection between the machine spindle and the cutting tool. Quality tool holders extend tool life by 150% or more. 0 50 100 150 200 Percent Tool Life T.I.R. in tenths 0 2 4 6 8 10
