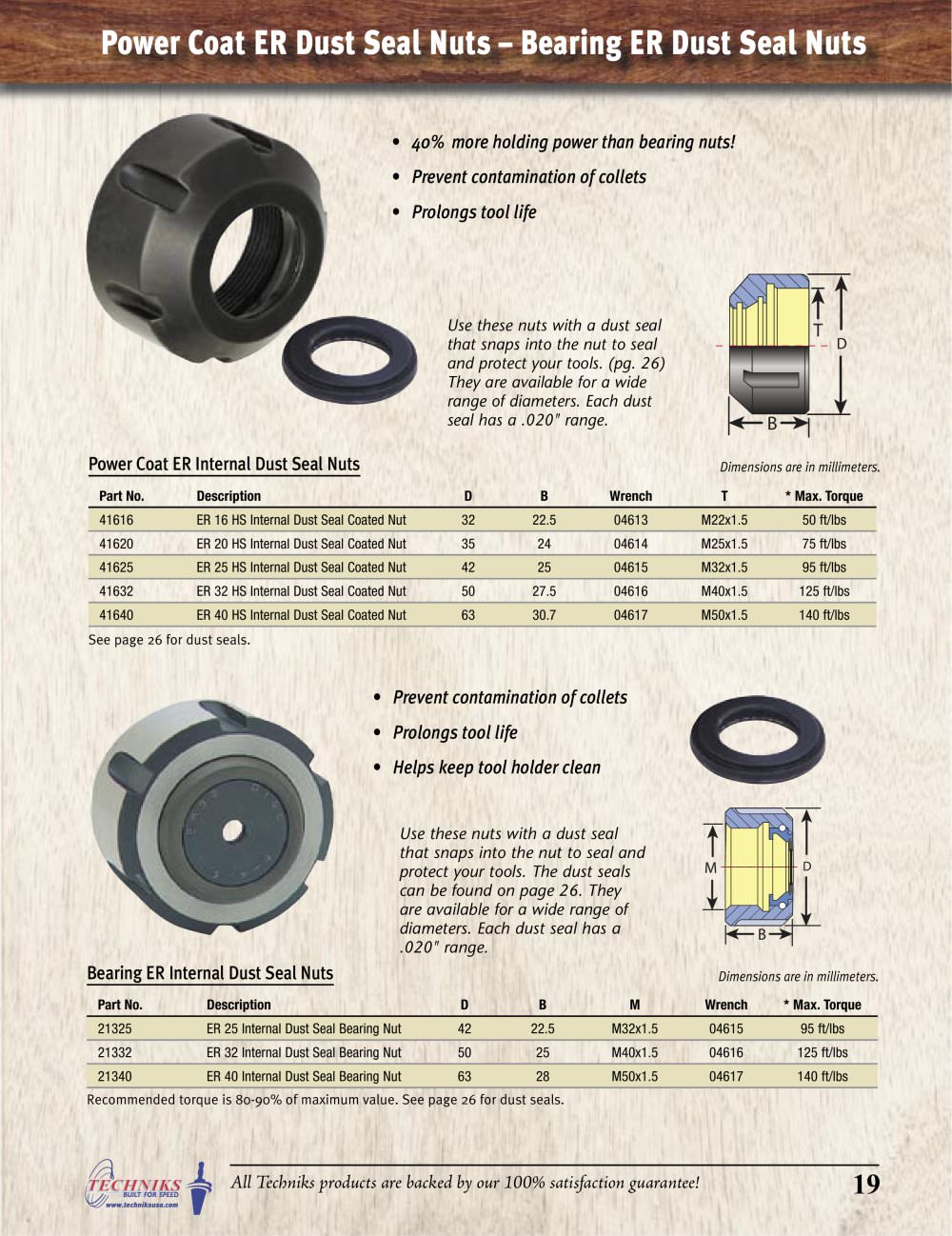

All Techniks products are backed by our 100% satisfaction guarantee! 19 Power Coat ER Dust Seal Nuts – Bearing ER Dust Seal Nuts Power Coat ER Internal Dust Seal Nuts Part No. Description D B Wrench T * Max. Torque 41616 ER 16 HS Internal Dust Seal Coated Nut 32 22.5 04613 M22x1.5 50 ft/lbs 41620 ER 20 HS Internal Dust Seal Coated Nut 35 24 04614 M25x1.5 75 ft/lbs 41625 ER 25 HS Internal Dust Seal Coated Nut 42 25 04615 M32x1.5 95 ft/lbs 41632 ER 32 HS Internal Dust Seal Coated Nut 50 27.5 04616 M40x1.5 125 ft/lbs 41640 ER 40 HS Internal Dust Seal Coated Nut 63 30.7 04617 M50x1.5 140 ft/lbs See page 26 for dust seals. Bearing ER Internal Dust Seal Nuts Part No. Description D B M Wrench * Max. Torque 21325 ER 25 Internal Dust Seal Bearing Nut 42 22.5 M32x1.5 04615 95 ft/lbs 21332 ER 32 Internal Dust Seal Bearing Nut 50 25 M40x1.5 04616 125 ft/lbs 21340 ER 40 Internal Dust Seal Bearing Nut 63 28 M50x1.5 04617 140 ft/lbs Recommended torque is 80-90% of maximum value. See page 26 for dust seals. Use these nuts with a dust seal that snaps into the nut to seal and protect your tools. (pg. 26) They are available for a wide range of diameters. Each dust seal has a .020" range. Dimensions are in millimeters. • 40% more holding power than bearing nuts! • Prevent contamination of collets • Prolongs tool life Use these nuts with a dust seal that snaps into the nut to seal and protect your tools. The dust seals can be found on page 26. They are available for a wide range of diameters. Each dust seal has a .020" range. Dimensions are in millimeters. • Prevent contamination of collets • Prolongs tool life • Helps keep tool holder clean
