Machine d'assemblageSoudage par résistance Soudo brasage - Ultrasons - Induction

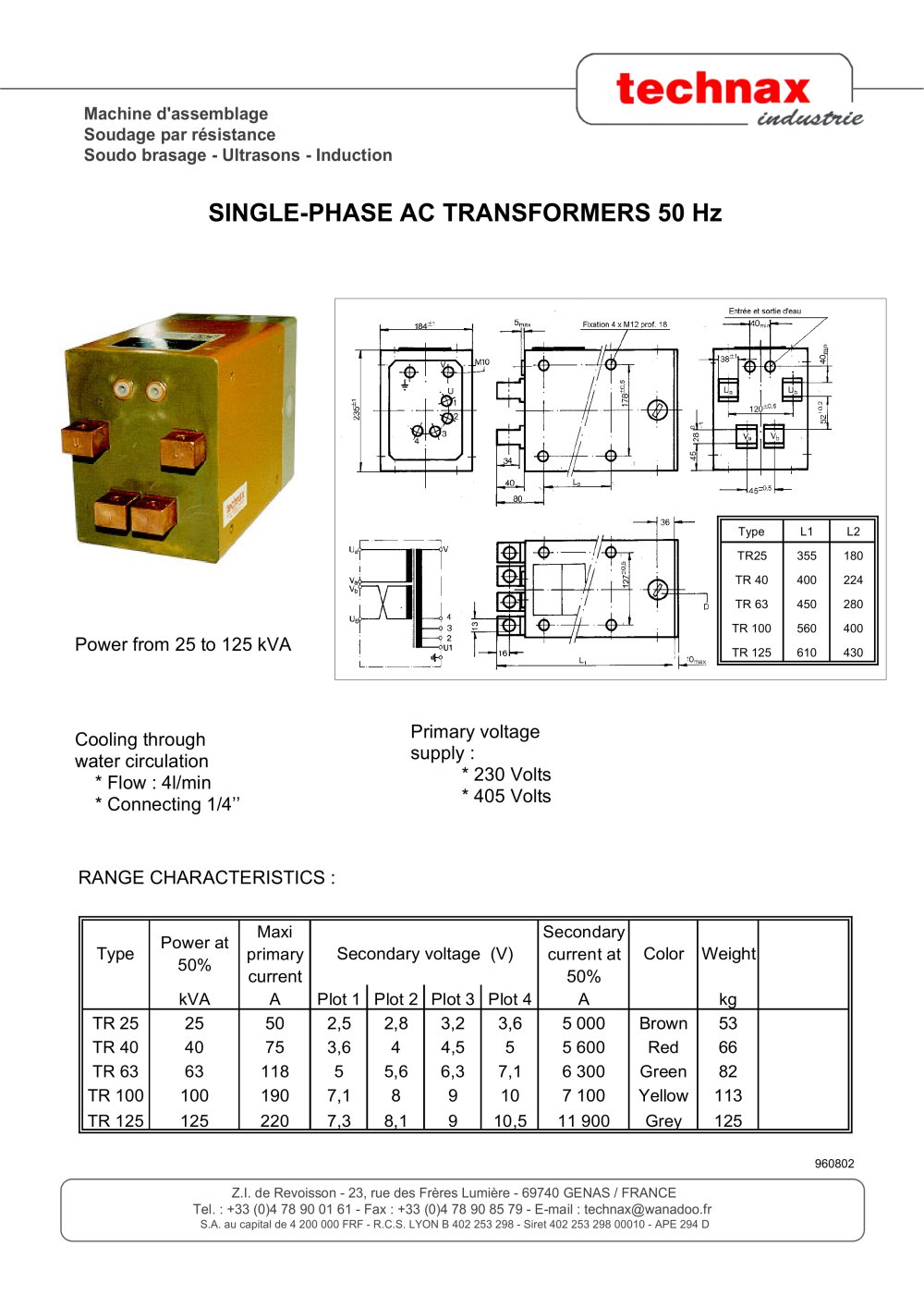

Single-phase AC transformers 50Hz - 16585 SINGLE-PHASE AC TRANSFORMERS 50 Hz

Type L1L2 TR25 355180 TR 40 400224 TR 63 450280 TR 100 560400

Power from 25 to 125 kVA

TR 125 610430

Cooling through water circulation * Flow : 4l/min * Connecting 1/4’’

Primary voltagesupply : * 230 Volts * 405 Volts RANGE CHARACTERISTICS :

Maxi Secondary

Type

Power at 50% primary

Secondary voltage (V)

current at

Color Weight current 50%

kVA A Plot 1 Plot 2Plot 3Plot 4 A kg

TR 25 25 50 2,52,83,23,6 5 000 Brown 53

TR 40 40 75 3,6 4 4,5 5 5 600 Red 66 TR 6363 118 5 5,66,37,16 300 Green 82

TR 100 1001907,1 8910 7 100 Yellow 113

TR 125 1252207,38,1 9 10,5 11 900 Grey 125
960802 Z.I. de Revoisson - 23, rue des Frères Lumière - 69740 GENAS / FRANCETel. : +33 (0)4 78 90 01 61 - Fax : +33 (0)4 78 90 85 79 - E-mail : technax@wanadoo.fr S.A. au capital de 4 200 000 FRF - R.C.S. LYON B 402 253 298 - Siret 402 253 298 00010 - APE 294 D
