Machine d'assemblage
Soudage par résistance
Soudo brasage - Ultrasons - Induction
|
|||
|
|
|||
|

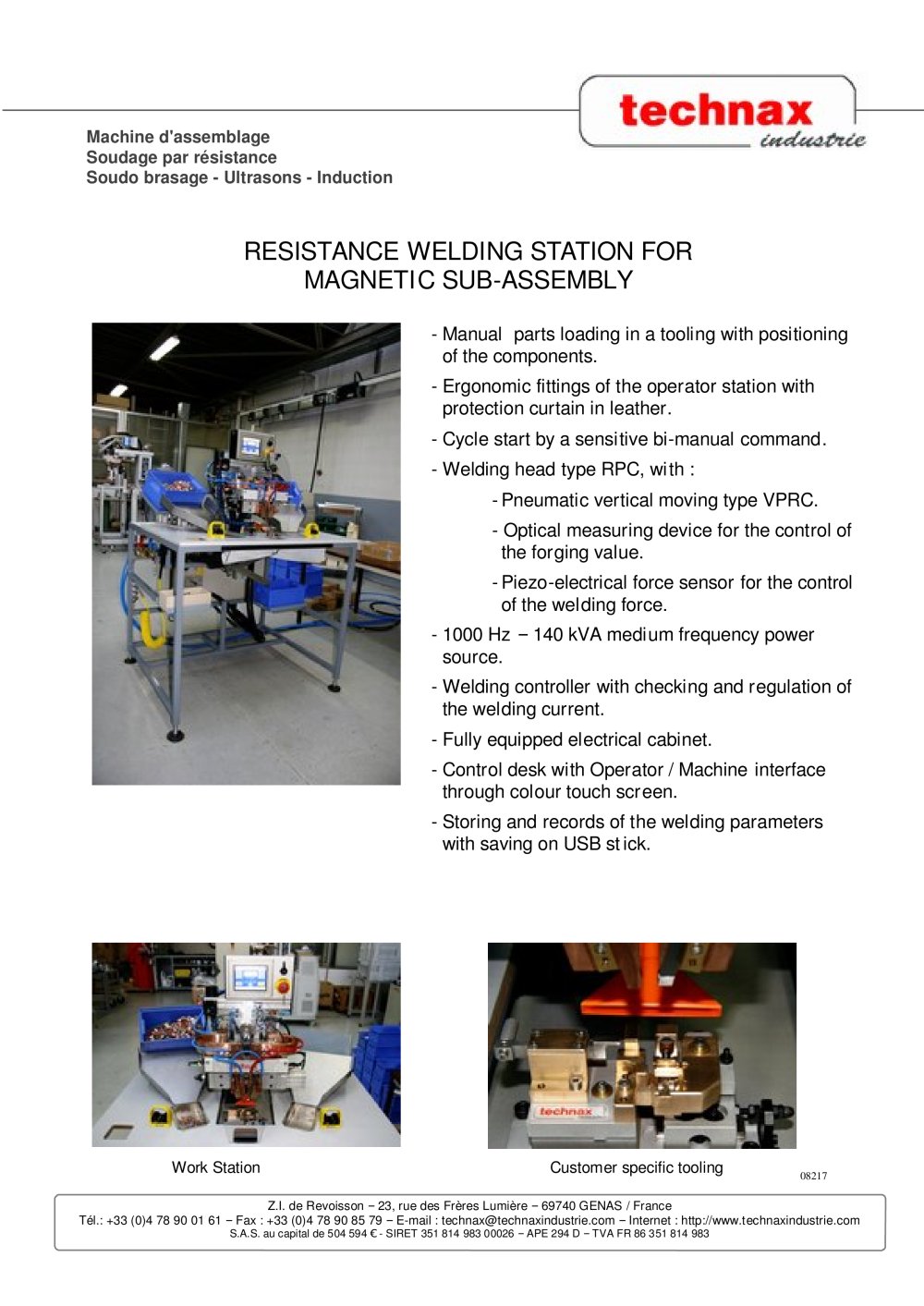

RESISTANCE WELDING STATION FOR MAGNETIC SUB-ASSEMBLY
|
|||
|
|
|||
 |
- Manual parts loading in a tooling with positioning of the components.
- Ergonomic fittings of the operator station with protection curtain in leather.
- Cycle start by a sensitive bi-manual command.
- Welding head type RPC, with :
- Pneumatic vertical moving type VPRC.
- Optical measuring device for the control of the forging value.
- Piezo-electrical force sensor for the control of the welding force.
- 1000 Hz - 140 kVA medium frequency power source.
|
||
|
- Welding controller with checking and regulation of the wel ding current.
- Fully equipped electrical cabinet.
- Control desk with Operator / Machine interface through col our touch scr een.
- Storing and records of the welding parameters with saving on USB st ick.
|
|||
|
|
|||
 |
|||
|
|
|||
|
Work Station Customer specific tooling
|
|||
|
|
|||
|
