| Machine d'assemblage Soudage par résistance Soudo brasage - Ultrasons - Induction | ||||||||||

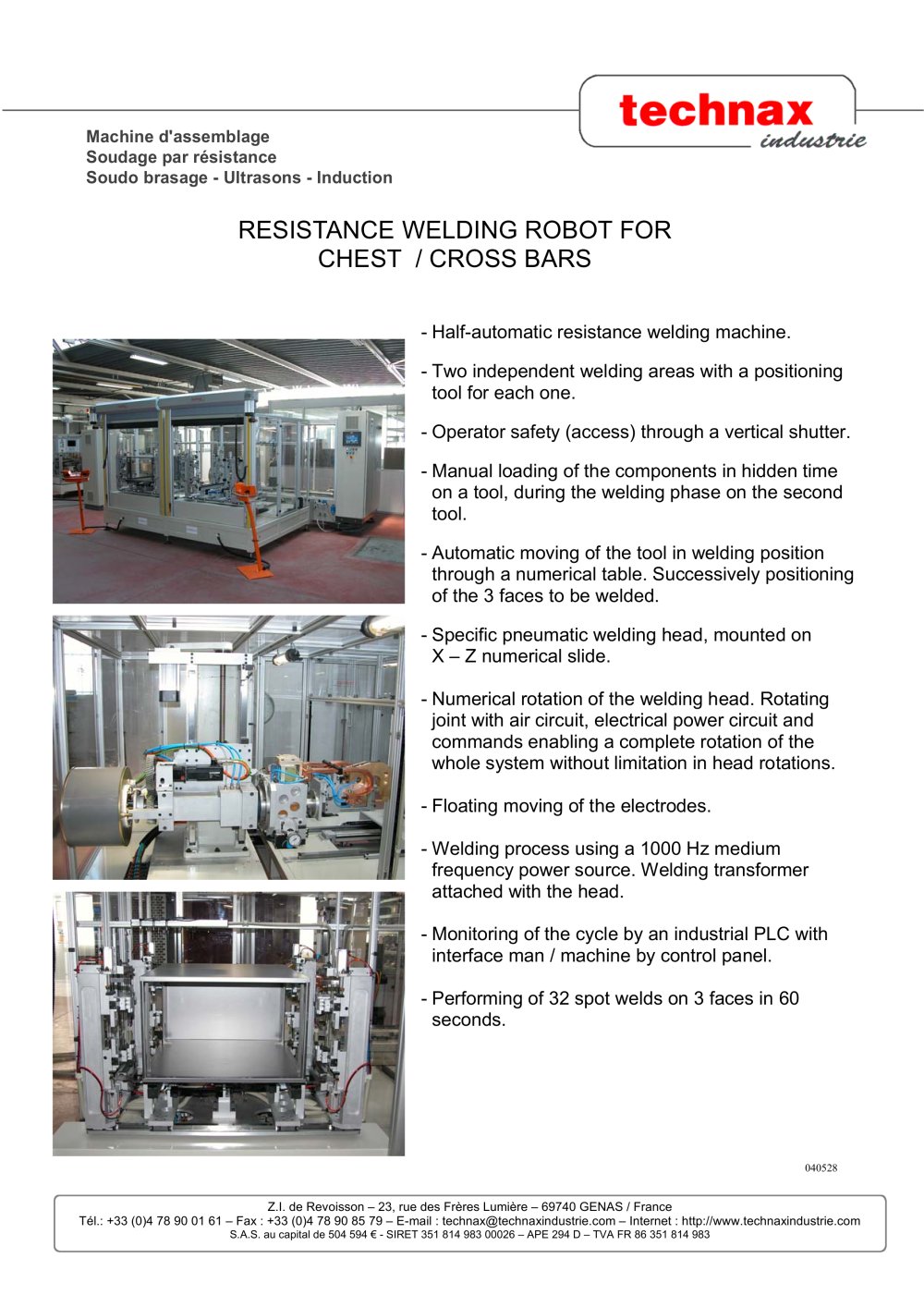

| RESISTANCE WELDING ROBOT FOR CHEST / CROSS BARS | ||||||||||
| Half-automatic resistance welding machine. Two independent welding areas with a positioning tool for each one. Operator safety (access) through a vertical shutter. Manual loading of the components in hidden time on a tool, during the welding phase on the second tool. Automatic moving of the tool in welding position through a numerical table. Successively positioning of the 3 faces to be welded. Specific pneumatic welding head, mounted on X - Z numerical slide. Numerical rotation of the welding head. Rotating joint with air circuit, electrical power circuit and commands enabling a complete rotation of the whole system without limitation in head rotations. Floating moving of the electrodes. Welding process using a 1000 Hz medium frequency power source. Welding transformer attached with the head. Monitoring of the cycle by an industrial PLC with interface man / machine by control panel. Performing of 32 spot welds on 3 faces in 60 seconds. | ||||||||||
| 040528 Z.I. de Revoisson - 23, rue des Frères Lumière - 69740 GENAS / France Tél.: +33 (0)4 78 90 01 61 - Fax : +33 (0)4 78 90 85 79 - E-mail : technax@technaxindustrie.com - Internet : http://www.technaxindustrie.com S.A.S. au capital de 504 594 € - SIRET 351 814 983 00026 - APE 294 D - TVA FR 86 351 814 983 | ||||||||||
