Machine d'assemblageSoudage par résistance Soudo brasage - Ultrasons - Induction

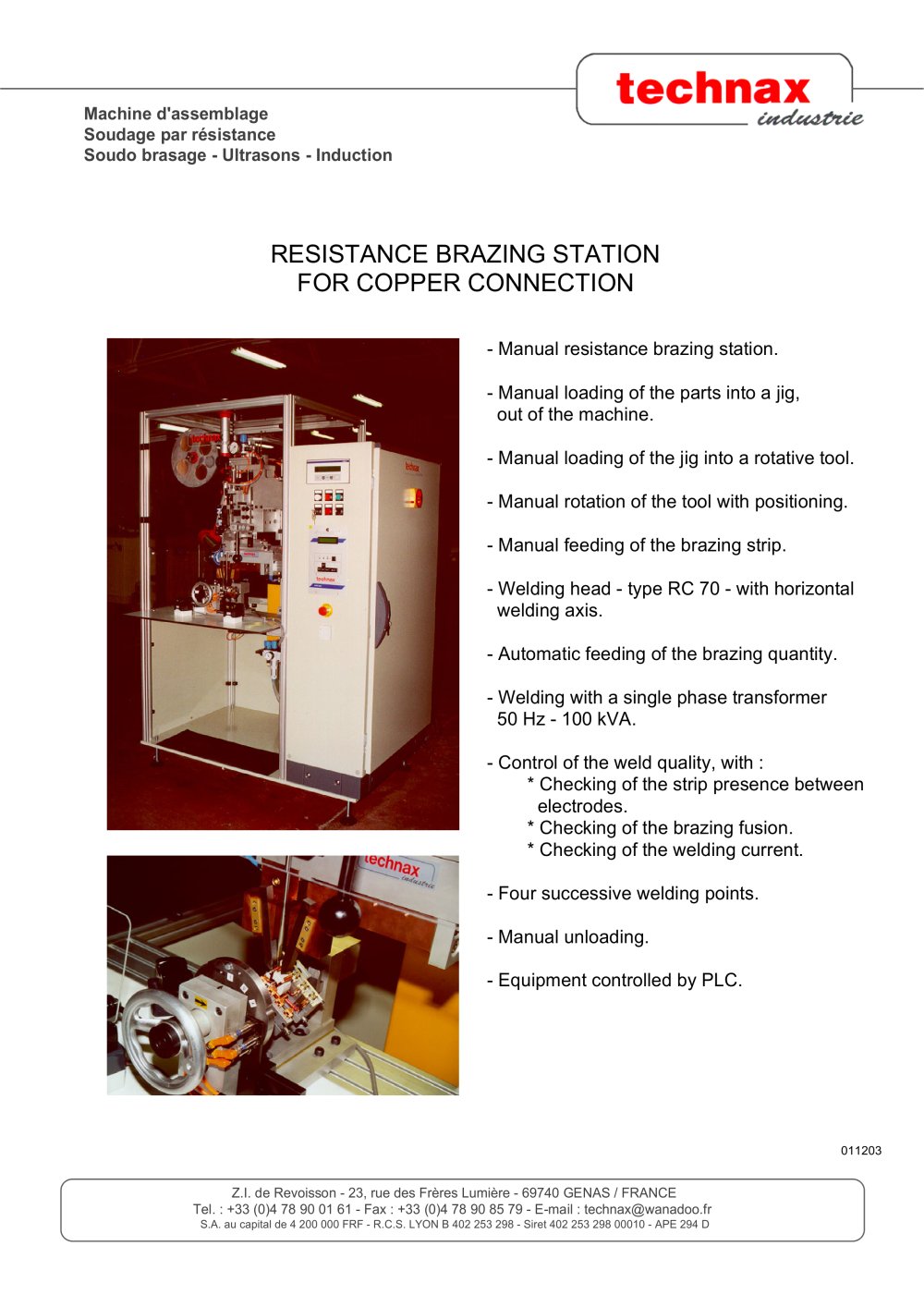

Resistance brazing station for copper connection - 16585 RESISTANCE BRAZING STATIONFOR COPPER CONNECTION

- Manual resistance brazing station.- Manual loading of the parts into a jig, out of the machine.- Manual loading of the jig into a rotative tool.- Manual rotation of the tool with positioning.- Manual feeding of the brazing strip. - Welding head - type RC 70 - with horizontal welding axis.- Automatic feeding of the brazing quantity.- Welding with a single phase transformer 50 Hz - 100 kVA.- Control of the weld quality, with : * Checking of the strip presence between electrodes. * Checking of the brazing fusion. * Checking of the welding current.- Four successive welding points.- Manual unloading.- Equipment controlled by PLC.

011203 Z.I. de Revoisson - 23, rue des Frères Lumière - 69740 GENAS / FRANCETel. : +33 (0)4 78 90 01 61 - Fax : +33 (0)4 78 90 85 79 - E-mail : technax@wanadoo.fr
