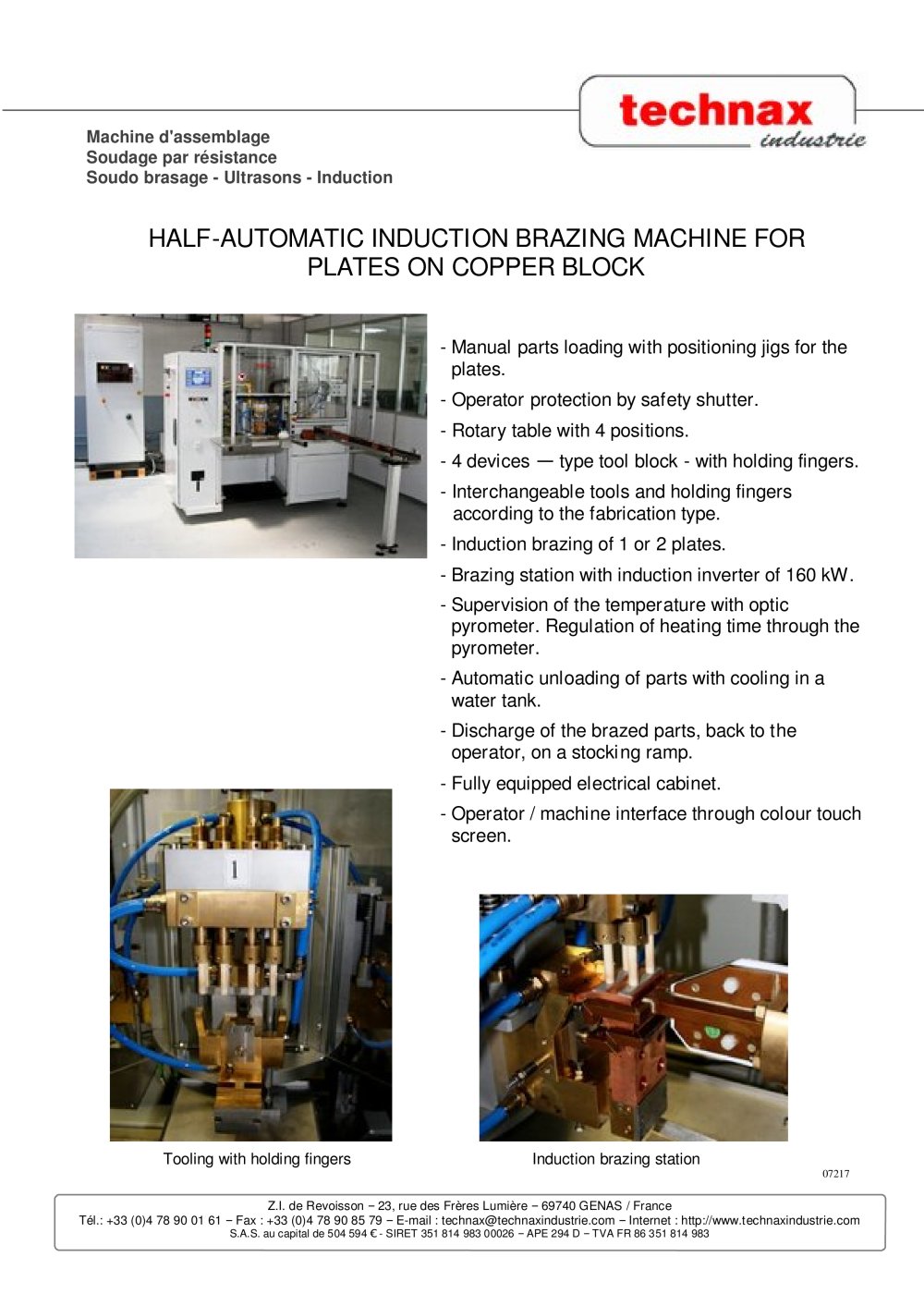

HALF-AUTOMATIC INDUCTION BRAZING MACHINE FOR PLATES ON COPPER BLOCK

Manual parts loading with positioning jigs for the plates.

Operator protection by safety shutter.

Rotary table with 4 positions.

4 devices — type tool block - with holding fingers.

Interchangeable tools and holding fingers according to the fabrication type.

Induction brazing of 1 or 2 plates.

Brazing station with induction inverter of 160 kW.

Supervision of the temperature with optic pyrometer. Regulation of heating time through the pyrometer.

Automatic unloading of parts with cooling in a water tank.

Discharge of the brazed parts, back to the operator, on a stocki ng ramp.

Fully equipped electrical cabinet.

Operator / machine interface through colour touch screen.

Tooling with holding fingers

Induction brazing station

07217
