| Machine d'assemblage Soudage par résistance Soudo brasage - Ultrasons - Induction | |||||||||||||

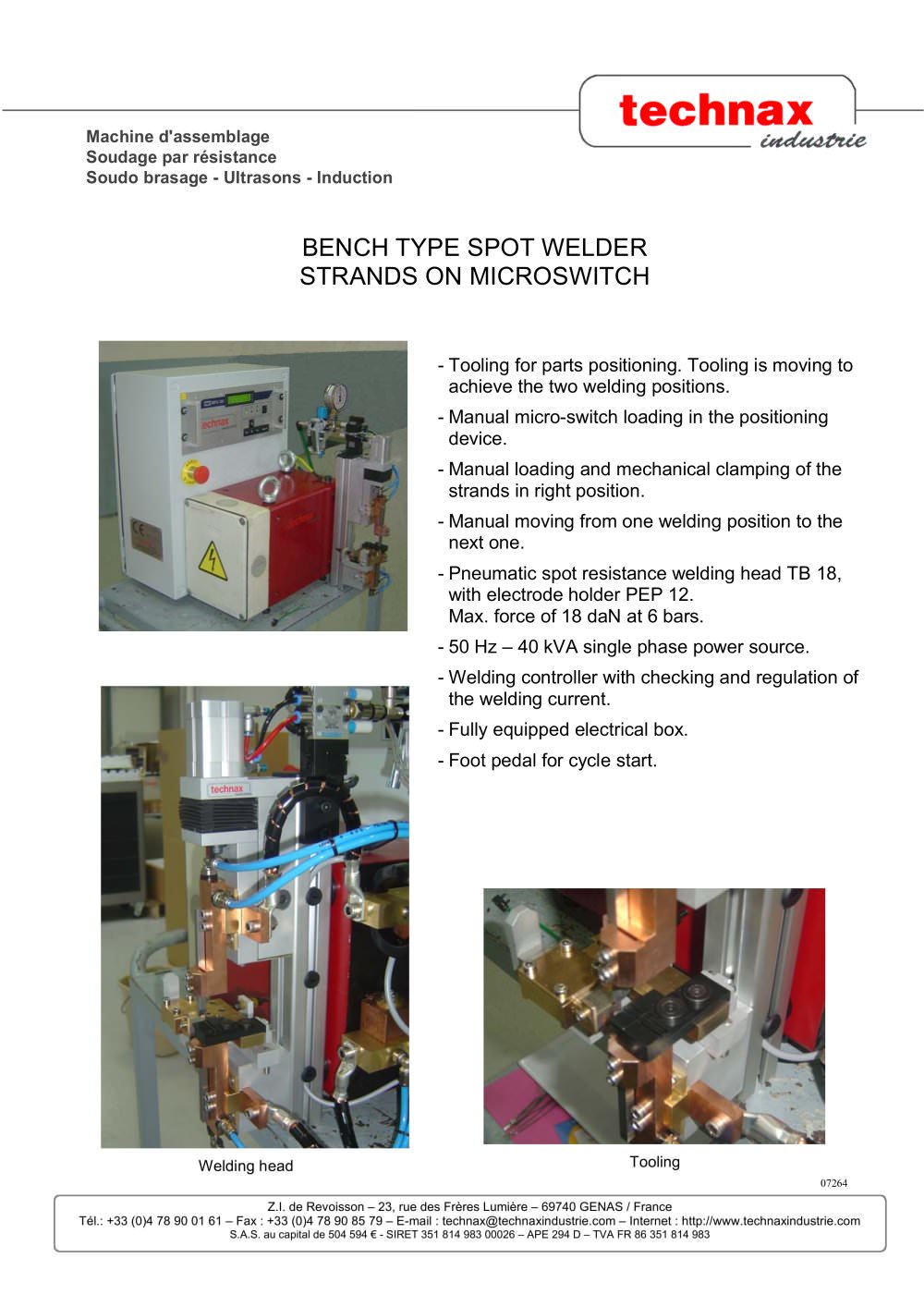

| BENCH TYPE SPOT WELDER STRANDS ON MICROSWITCH | |||||||||||||
| - Tooling for parts positioning. Tooling is moving to achieve the two welding positions. - Manual micro-switch loading in the positioning device. - Manual loading and mechanical clamping of the strands in right position. - Manual moving from one welding position to the next one. - Pneumatic spot resistance welding head TB 18, with electrode holder PEP 12. Max. force of 18 daN at 6 bars. | |||||||||||||
| -50 Hz - 40 kVA single phase power source. | |||||||||||||
| Welding head Tooling 07264 | |||||||||||||
