| Machine d'assemblage Soudage par résistance Soudo brasage - Ultrasons - Induction | ||||||||||||||||||

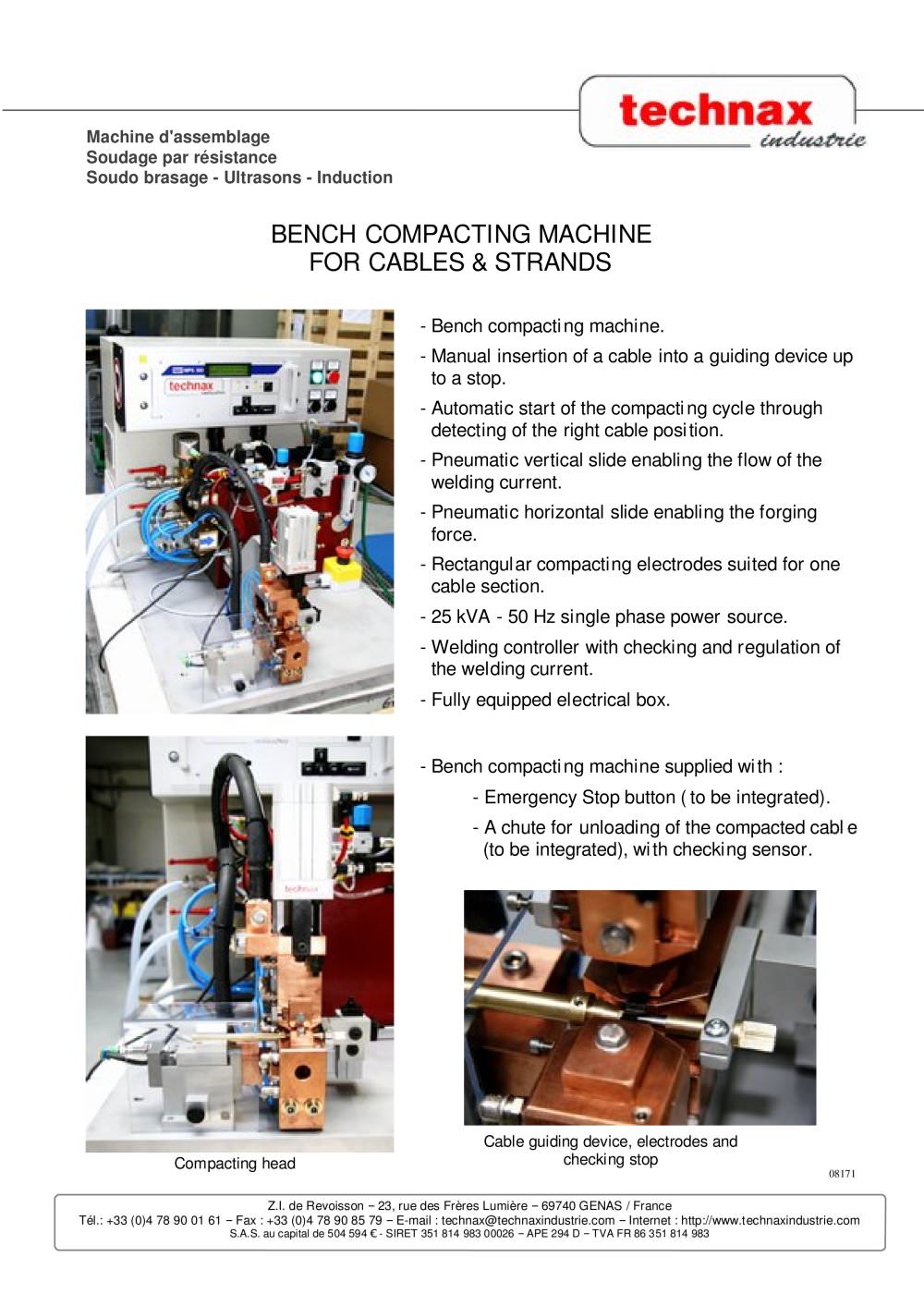

| BENCH COMPACTING MACHINE FOR CABLES & STRANDS | ||||||||||||||||||
| Bench compacting machine. Manual insertion of a cable into a guiding device up to a stop. Automatic start of the compacti ng cycle through detecting of the right cable position. Pneumatic vertical slide enabling the flow of the welding current. Pneumatic horizontal slide enabling the forging force. Rectangular compacting electrodes suited for one cable section. 25 kVA - 50 Hz single phase power source. Welding controller with checking and regulation of the wel ding current. Fully equipped electrical box. | ||||||||||||||||||
| Bench compacting machine supplied with : - Emergency Stop button (to be integrated). - A chute for unloading of the compacted cabl e (to be integrated), with checking sensor. | ||||||||||||||||||
| Cable guiding device, electrodes and checking stop | ||||||||||||||||||
| Compacting head | ||||||||||||||||||
| 08171 | ||||||||||||||||||
| Z.I. de Revoisson - 23, rue des Frères Lumière - 69740 GENAS / France Tél.: +33 (0)4 78 90 01 61 - Fax : +33 (0)4 78 90 85 79 - E-mail : technax@technaxindustrie.com - Internet : http://www.technaxindustrie.com S.A.S. au capital de 504 594 € - SIRET 351 814 983 00026 - APE 294 D - TVA FR 86 351 814 983 | ||||||||||||||||||
