(1/2) 001-01 / 20070122 / e146.fm

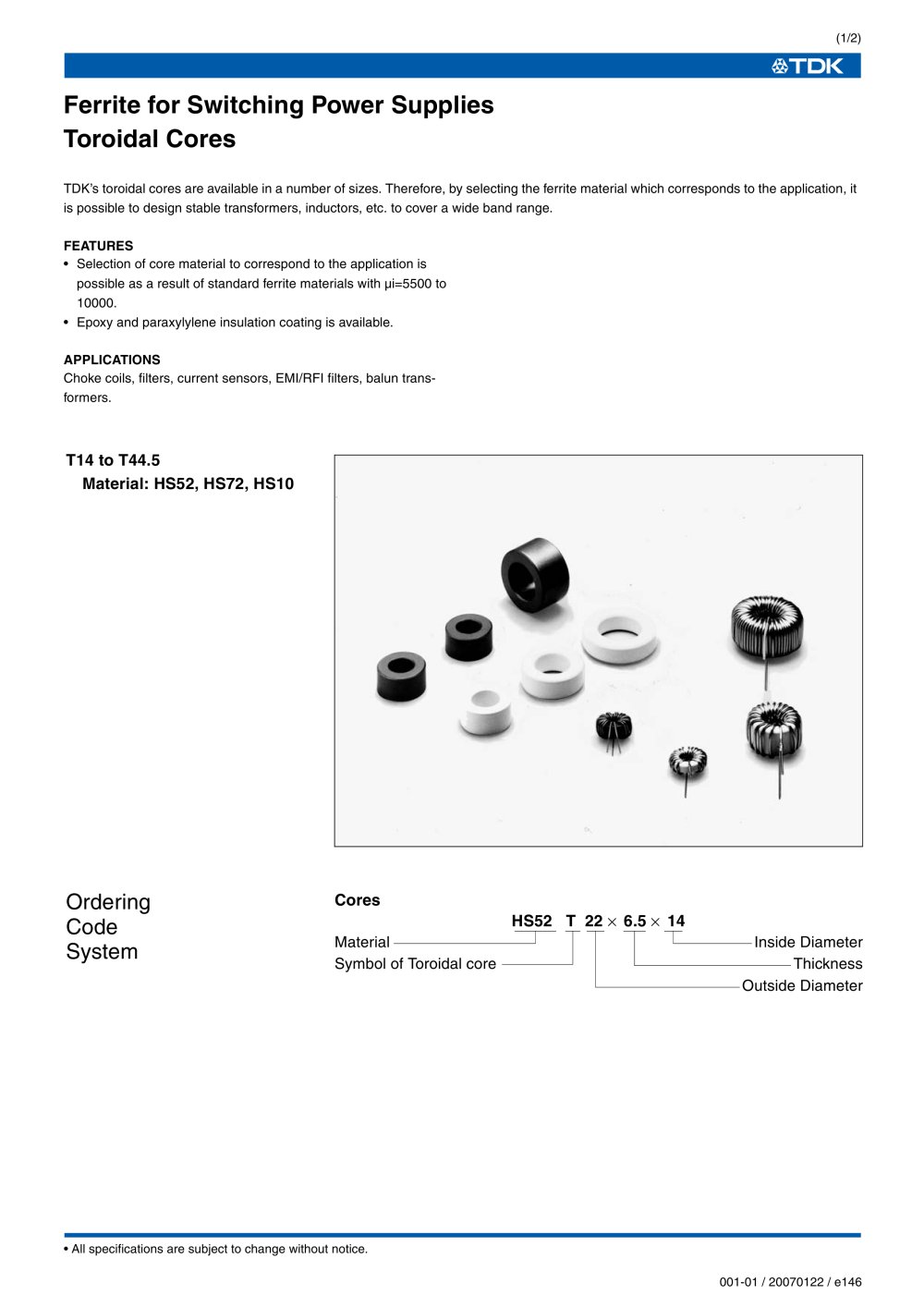

Toroidal Cores - 34778 Ferrite for Switching Power SuppliesToroidal Cores

TDK’s toroidal cores are available in a number of sizes. Therefore, by selecting the ferrite material which corresponds to the application, it is possible to design stable transformers, inductors, etc. to cover a wide band range. FEATURES •Selection of core material to correspond to the application is possible as a result of standard ferrite materials with µi=5500 to 10000. •Epoxy and paraxylylene insulation coating is available. APPLICATIONS Choke coils, filters, current sensors, EMI/RFI filters, balun trans-formers. T14 to T44.5Material: HS52, HS72, HS10

OrderingCodeSystem

CoresHS52 T 22 × 6.5 × 14
MaterialSymbol of Toroidal coreInside DiameterThicknessOutside Diameter • All specifications are subject to change without notice.
