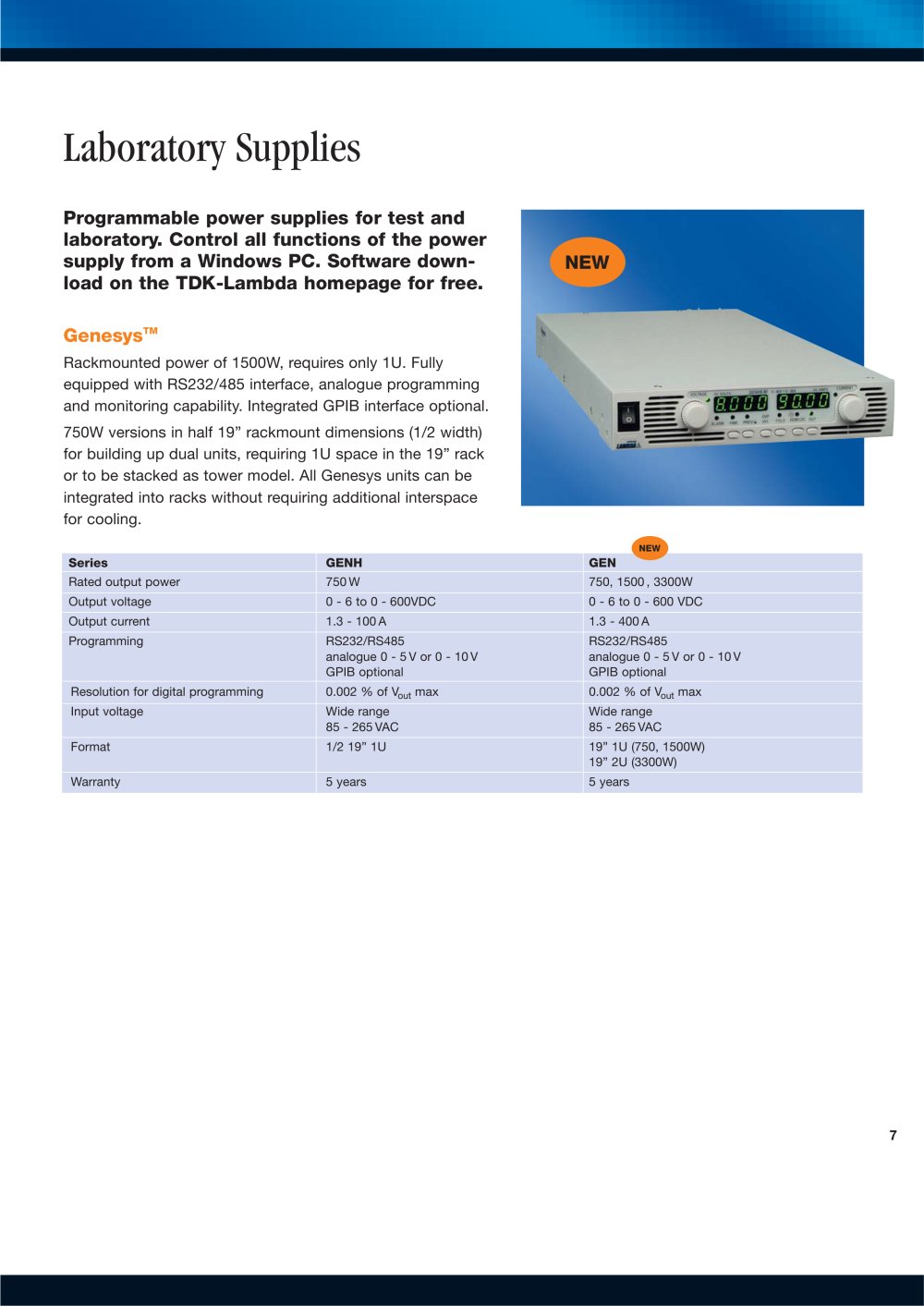

| Laboratory Supplies | |||||||||||||||||||||||
| Programmable power supplies for test and laboratory. Control all functions of the power supply from a Windows PC. Software download on the TDK-Lambda homepage for free. | |||||||||||||||||||||||
| NEW | |||||||||||||||||||||||
| Rackmounted power of 1500W, requires only 1U. Fully equipped with RS232/485 interface, analogue programming and monitoring capability. Integrated GPIB interface optional. 750W versions in half 19" rackmount dimensions (1/2 width) for building up dual units, requiring 1U space in the 19" rack or to be stacked as tower model. All Genesys units can be integrated into racks without requiring additional interspace for cooling. | |||||||||||||||||||||||
| NEW GEN 750, 1500, 3300W 0 - 6 to 0 - 600 VDC 1.3 - 400 A RS232/RS485 analogue 0 - 5V or 0 - 10V GPIB optional 0.002 % of Vout max Wide range 85 -265VAC 19" 1U (750, 1500W) 19" 2U (3300W) 5 years | |||||||||||||||||||||||
| Series Rated output power Output voltage Output current Programming Resolution for digital programming Input voltage Format Warranty | GENH 750W 0 - 6 to 0 - 600VDC 1.3 - 100 A RS232/RS485 analogue 0 - 5V or 0 - 10V GPIB optional | ||||||||||||||||||||||
| 0.002 % of Vout max | |||||||||||||||||||||||
| Wide range 85 - 265VAC | |||||||||||||||||||||||
| 1/2 19" 1U | |||||||||||||||||||||||
| 5 years | |||||||||||||||||||||||
| 7 | |||||||||||||||||||||||
