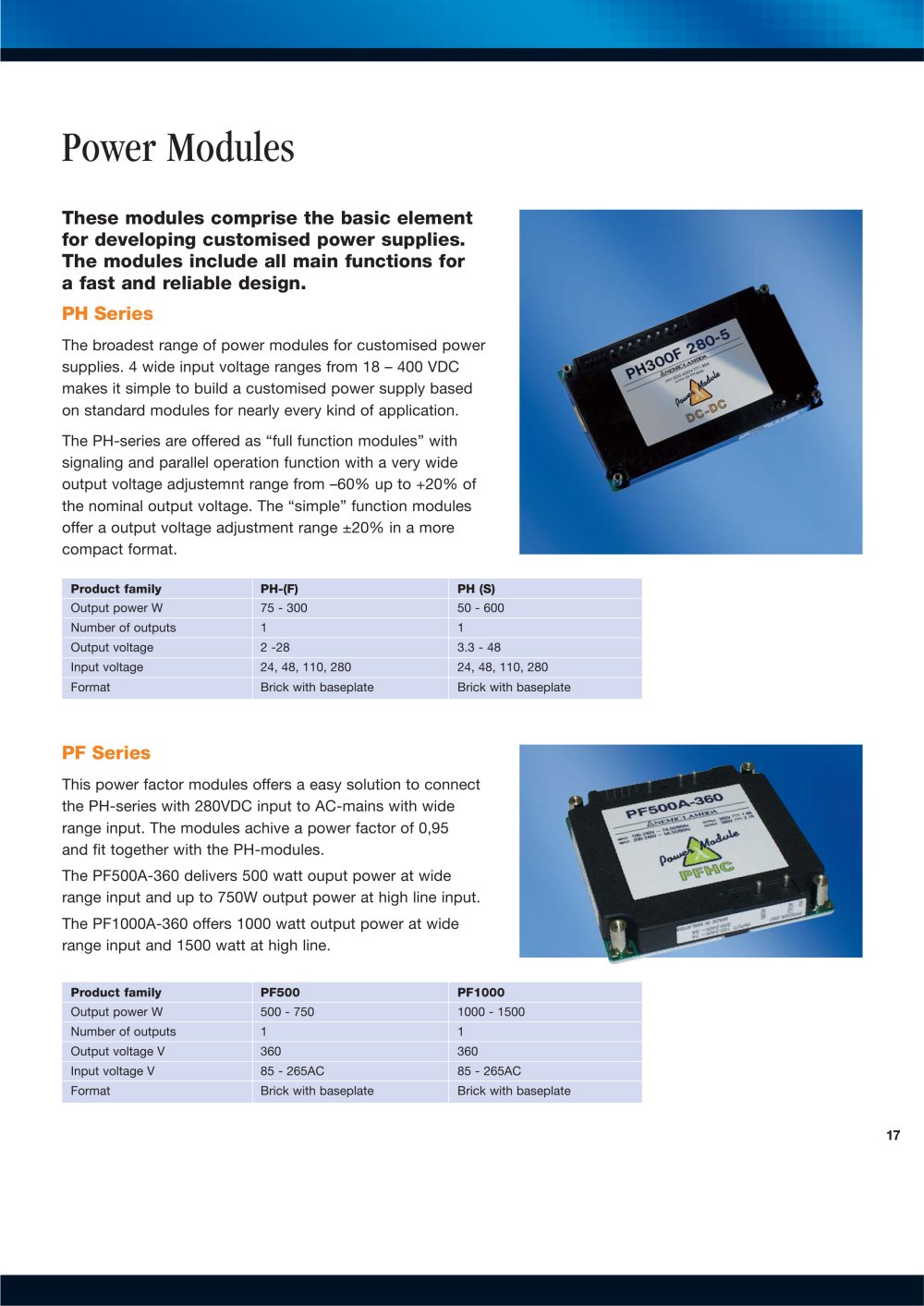

Power Modules

These modules comprise the basic elementfor developing customised power supplies. The modules include all main functions for a fast and reliable design.PHSeries

The broadest range of power modules for customised powersupplies. 4 wide input voltage ranges from 18 – 400 VDC makes it simple to build a customised power supply based on standard modules for nearly every kind of application.The PH-series are offered as “full function modules” with signaling and parallel operation function with a very wide output voltage adjustemnt range from –60% up to +20% of the nominal output voltage. The “simple” function modules offer a output voltage adjustment range ±20% in a more compact format.

Product familyPH-(F)PH (S) Output power W75 - 30050 - 600 Number of outputs11 Output voltage2 -283.3 - 48 Input voltage24, 48, 110, 28024, 48, 110, 280FormatBrick with baseplateBrick with baseplate

PFSeries

This power factor modules offers a easy solution to connectthe PH-series with 280VDC input to AC-mains with wide range input. The modules achive a power factor of 0,95 and fit together with the PH-modules. The PF500A-360 delivers 500 watt ouput power at wide range input and up to 750W output power at high line input. The PF1000A-360 offers 1000 watt output power at widerange input and 1500 watt at high line.

Product familyPF500PF1000 Output power W500 - 750 1000 - 1500 Number of outputs11 Output voltage V360360 Input voltage V85 - 265AC85 - 265AC FormatBrick with baseplateBrick with baseplate

17
