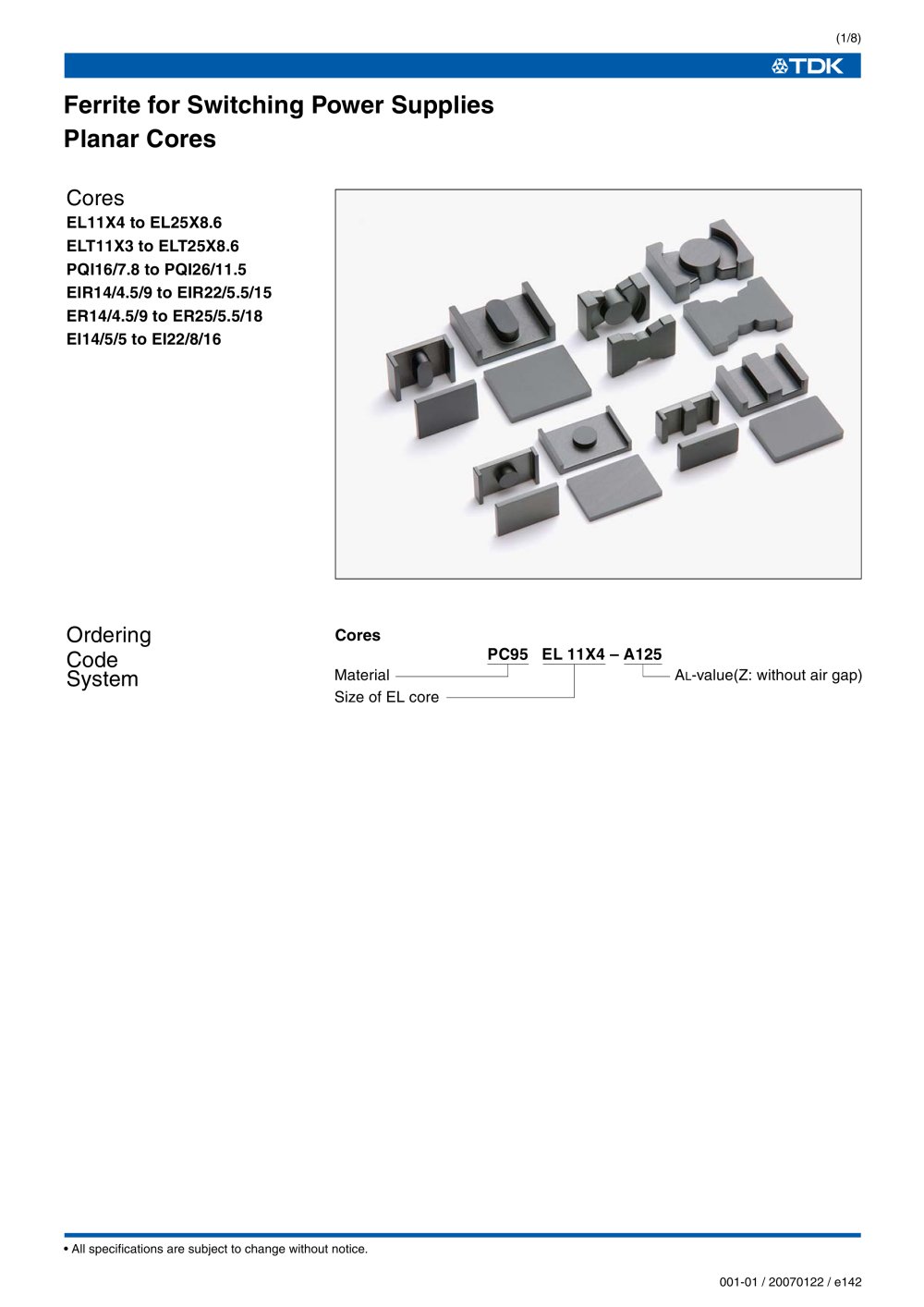

Ferrite for Switching Power SuppliesPlanar Cores
Cores
EL11X4 to EL25X8.6ELT11X3 to ELT25X8.6
PQI16/7.8 to PQI26/11.5
EIR14/4.5/9 to EIR22/5.5/15
ER14/4.5/9 to ER25/5.5/18
EI14/5/5 to EI22/8/16
OrderingCodeSystem
CoresPC95 EL 11X4 – A125
MaterialSize of EL coreA
L -value(Z: without air gap)
