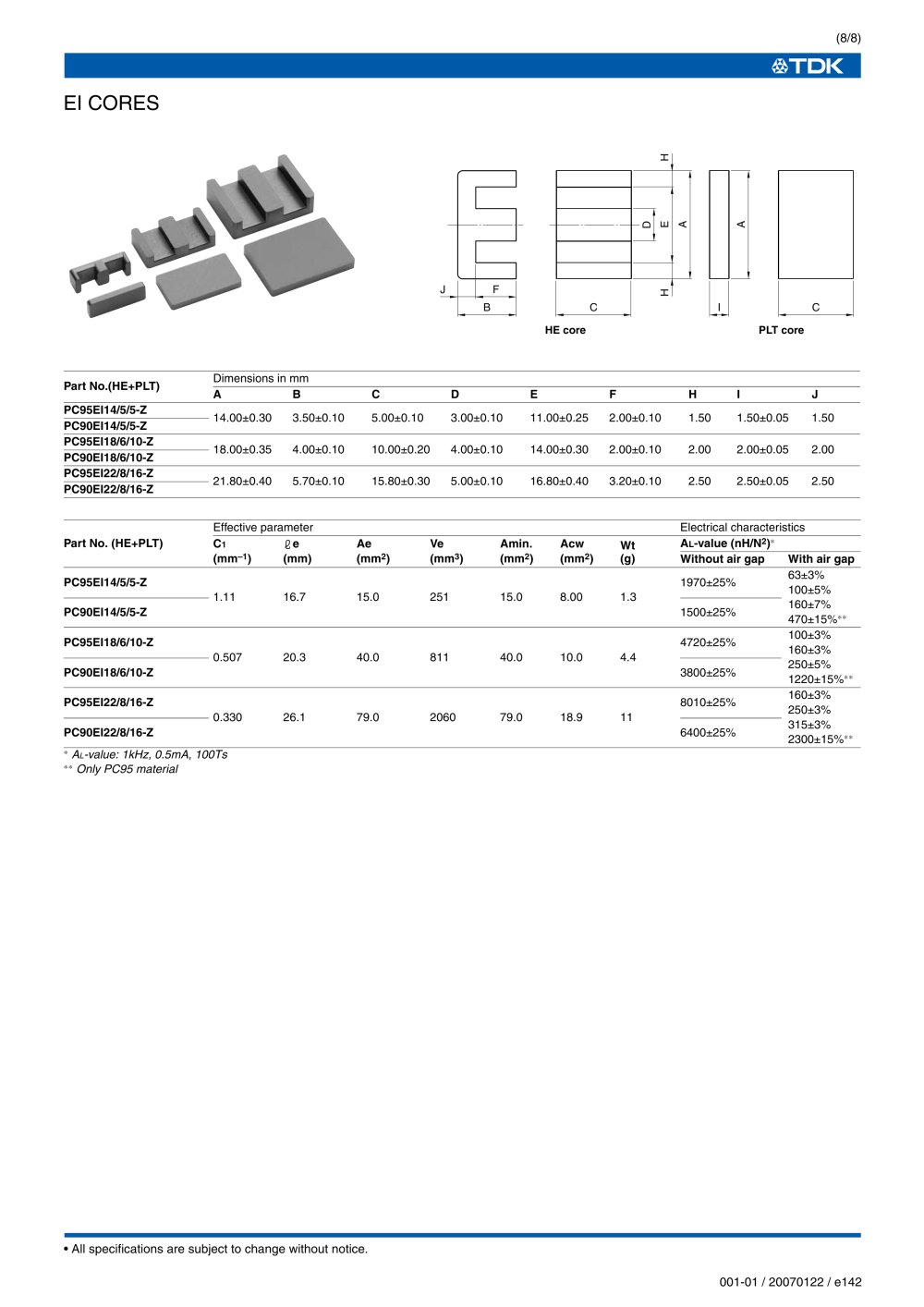

(8/8)
EI CORES
HE core PLT core
Part No.(HE+PLT)
Dimensions in mm
A
B
C
D
E
F
H
I
J
PC95EI14/5/5-Z PC90EI14/5/5-Z
-14.00±0.30
3.50±0.10
5.00±0.10
3.00±0.10
11.00±0.25
2.00±0.10
1.50
1.50±0.05
1.50
PC95EI18/6/10-Z PC90EI18/6/10-Z
-18.00±0.35
4.00±0.10
10.00±0.20
4.00±0.10
14.00±0.30
2.00±0.10
2.00
2.00±0.05
2.00
PC95EI22/8/16-Z
-21.80±0.40
5.70±0.10
15.80±0.30
5.00±0.10
16.80±0.40
3.20±0.10
2.50
2.50±0.05
2.50
Effective parameter
Electrical characteristics
AL-value (nH/N2)*
Part No. (HE+PLT)
PC95EI14/5/5-Z PC90EI14/5/5-Z
C1 fie Ae Ve Amin. Acw Wt
(mm-1) (mm) (mm2) (mm3) (mm2) (mm2) (g)
1.11 16.7 15.0 251 15.0 8.00 1.3
Without air gap
1970±25%
1500±25%
With air gap
63±3%
100±5%
160±7%
470±15%**
100±3%
160±3%
250±5%
1220±15%**
160±3%
250±3%
315±3%
2300±15%**
PC95EI18/6/10-Z
4720±25%
0.507
20.3
40.0
811
40.0 10.0 4.4
PC90EI18/6/10-Z PC95EI22/8/16-Z PC90EI22/8/16-Z
3800±25% 8010±25% 6400±25%
79.0 2060 79.0 18.9
0.330
26.1
11
* AL-value: 1kHz, 0.5mA, 100Ts ** Only PC95 material
All specifications are subject to change without notice.
001-01 / 20070122 / e142
