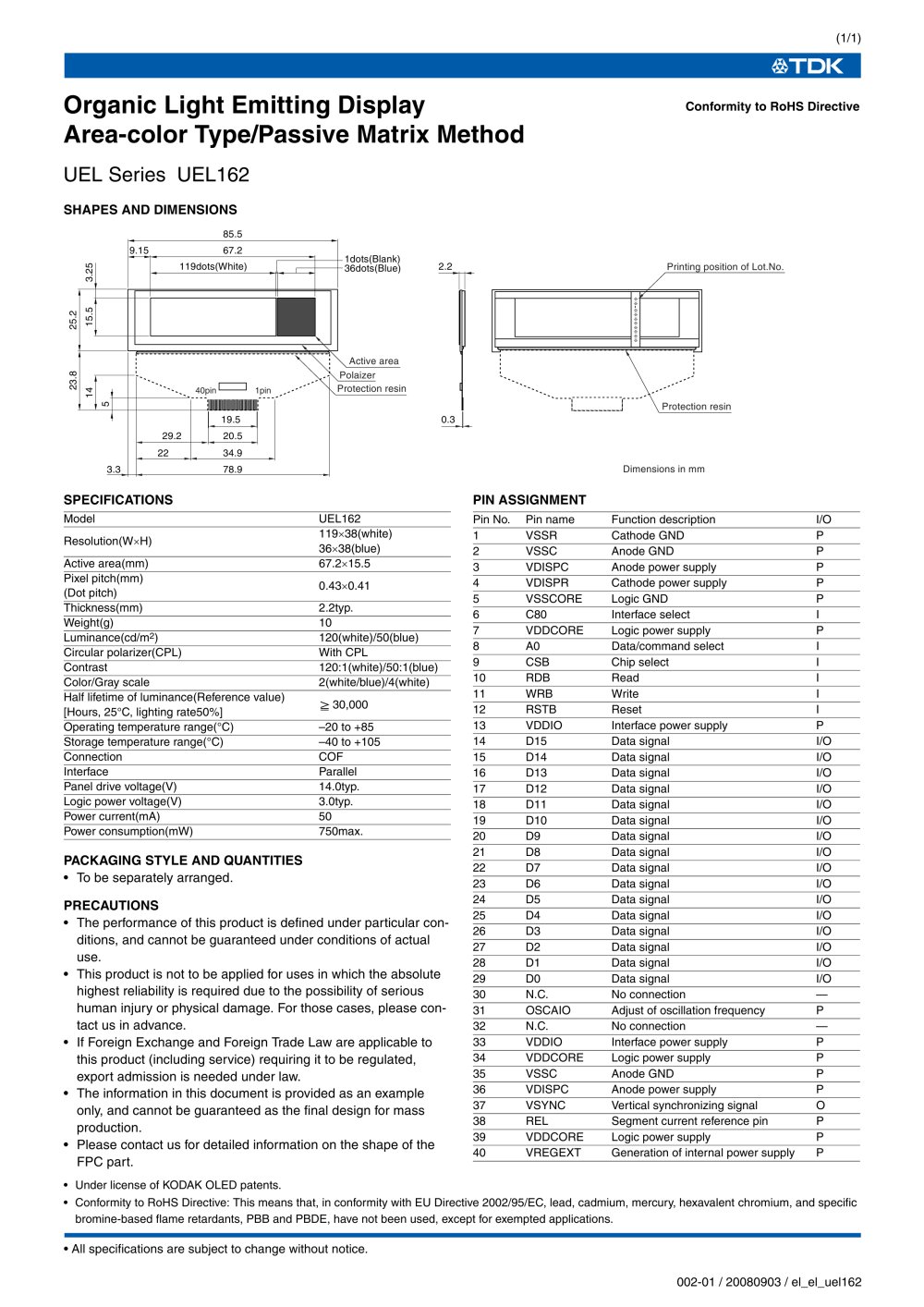

002-01 / 20080903 / el_el_uel162.fm
• All specifications are subject to change without notice.
Organic Light Emitting Display
Area-color Type/Passive Matrix Method
UEL Series UEL162
SHAPES AND DIMENSIONS
SPECIFICATIONS
PACKAGING STYLE AND QUANTITIES
• To be separately arranged.
PRECAUTIONS
• The performance of this product is defined under particular conditions,
and cannot be guaranteed under conditions of actual
use.
• This product is not to be applied for uses in which the absolute
highest reliability is required due to the possibility of serious
human injury or physical damage. For those cases, please contact
us in advance.
• If Foreign Exchange and Foreign Trade Law are applicable to
this product (including service) requiring it to be regulated,
export admission is needed under law.
• The information in this document is provided as an example
only, and cannot be guaranteed as the final design for mass
production.
• Please contact us for detailed information on the shape of the
FPC part.
PIN ASSIGNMENT
Conformity to RoHS Directive
9.15 67.2
119dots(White)
1dots(Blank)
36dots(Blue)
85.5
15.5 3.25
25.2
5
14
23.8
19.5 0.3
29.2 20.5
22 34.9
3.3 78.9
40pin 1pin
Active area
Polaizer
Protection resin
Printing position of Lot.No.
-
Dimensions in mm
2.2
Protection resin
Model UEL162
Resolution(W×H)
119×38(white)
36×38(blue)
Active area(mm) 67.2×15.5
Pixel pitch(mm)
(Dot pitch)
0.43×0.41
Thickness(mm) 2.2typ.
Weight(g) 10
Luminance(cd/m2) 120(white)/50(blue)
Circular polarizer(CPL) With CPL
Contrast 120:1(white)/50:1(blue)
Color/Gray scale 2(white/blue)/4(white)
Half lifetime of luminance(Reference value)
[Hours, 25°C, lighting rate50%]
30,000
Operating temperature range(°C) –20 to +85
Storage temperature range(°C) –40 to +105
Connection COF
Interface Parallel
Panel drive voltage(V) 14.0typ.
Logic power voltage(V) 3.0typ.
Power current(mA) 50
Power consumption(mW) 750max.
Pin No. Pin name Function description I/O
1 VSSR Cathode GND P
2 VSSC Anode GND P
3 VDISPC Anode power supply P
4 VDISPR Cathode power supply P
5 VSSCORE Logic GND P
6 C80 Interface select I
7 VDDCORE Logic power supply P
8 A0 Data/command select I
9 CSB Chip select I
10 RDB Read I
11 WRB Write I
12 RSTB Reset I
13 VDDIO Interface power supply P
14 D15 Data signal I/O
15 D14 Data signal I/O
16 D13 Data signal I/O
17 D12 Data signal I/O
18 D11 Data signal I/O
19 D10 Data signal I/O
20 D9 Data signal I/O
21 D8 Data signal I/O
22 D7 Data signal I/O
23 D6 Data signal I/O
24 D5 Data signal I/O
25 D4 Data signal I/O
26 D3 Data signal I/O
27 D2 Data signal I/O
28 D1 Data signal I/O
29 D0 Data signal I/O
30 N.C. No connection —
31 OSCAIO Adjust of oscillation frequency P
32 N.C. No connection —
33 VDDIO Interface power supply P
34 VDDCORE Logic power supply P
35 VSSC Anode GND P
36 VDISPC Anode power supply P
37 VSYNC Vertical synchronizing signal O
38 REL Segment current reference pin P
39 VDDCORE Logic power supply P
40 VREGEXT Generation of internal power supply P
• Under license of KODAK OLED patents.
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
|
|
