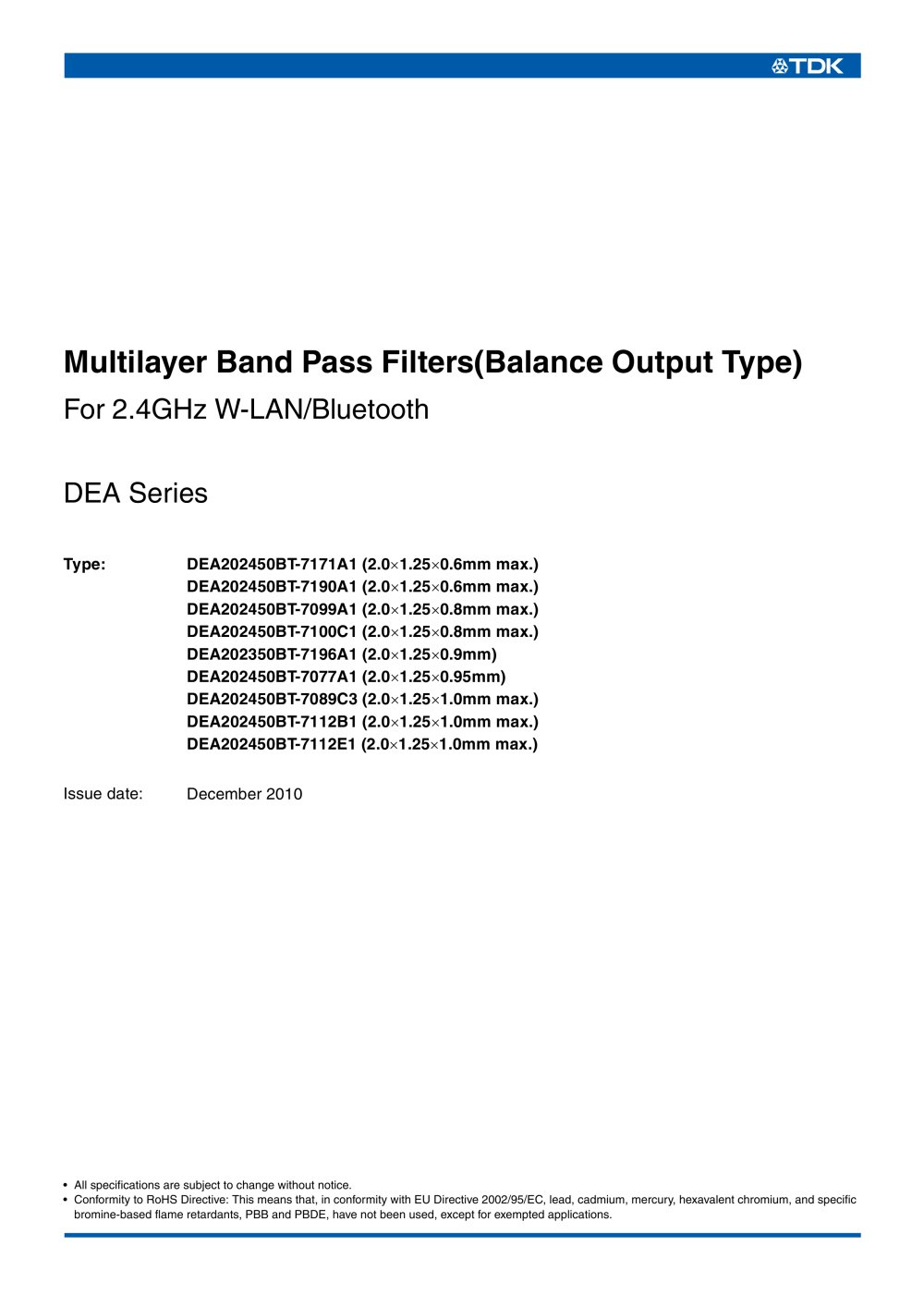

• All specifications are subject to change without notice. • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. Multilayer Band Pass Filters(Balance Output Type) For 2.4GHz W-LAN/Bluetooth DEA Series Type: Issue date: DEA202450BT-7171A1 (2.0×1.25×0.6mm max.) DEA202450BT-7190A1 (2.0×1.25×0.6mm max.) DEA202450BT-7099A1 (2.0×1.25×0.8mm max.) DEA202450BT-7100C1 (2.0×1.25×0.8mm max.) DEA202350BT-7196A1 (2.0×1.25×0.9mm) DEA202450BT-7077A1 (2.0×1.25×0.95mm) DEA202450BT-7089C3 (2.0×1.25×1.0mm max.) DEA202450BT-7112B1 (2.0×1.25×1.0mm max.) DEA202450BT-7112E1 (2.0×1.25×1.0mm max.) December 2010
