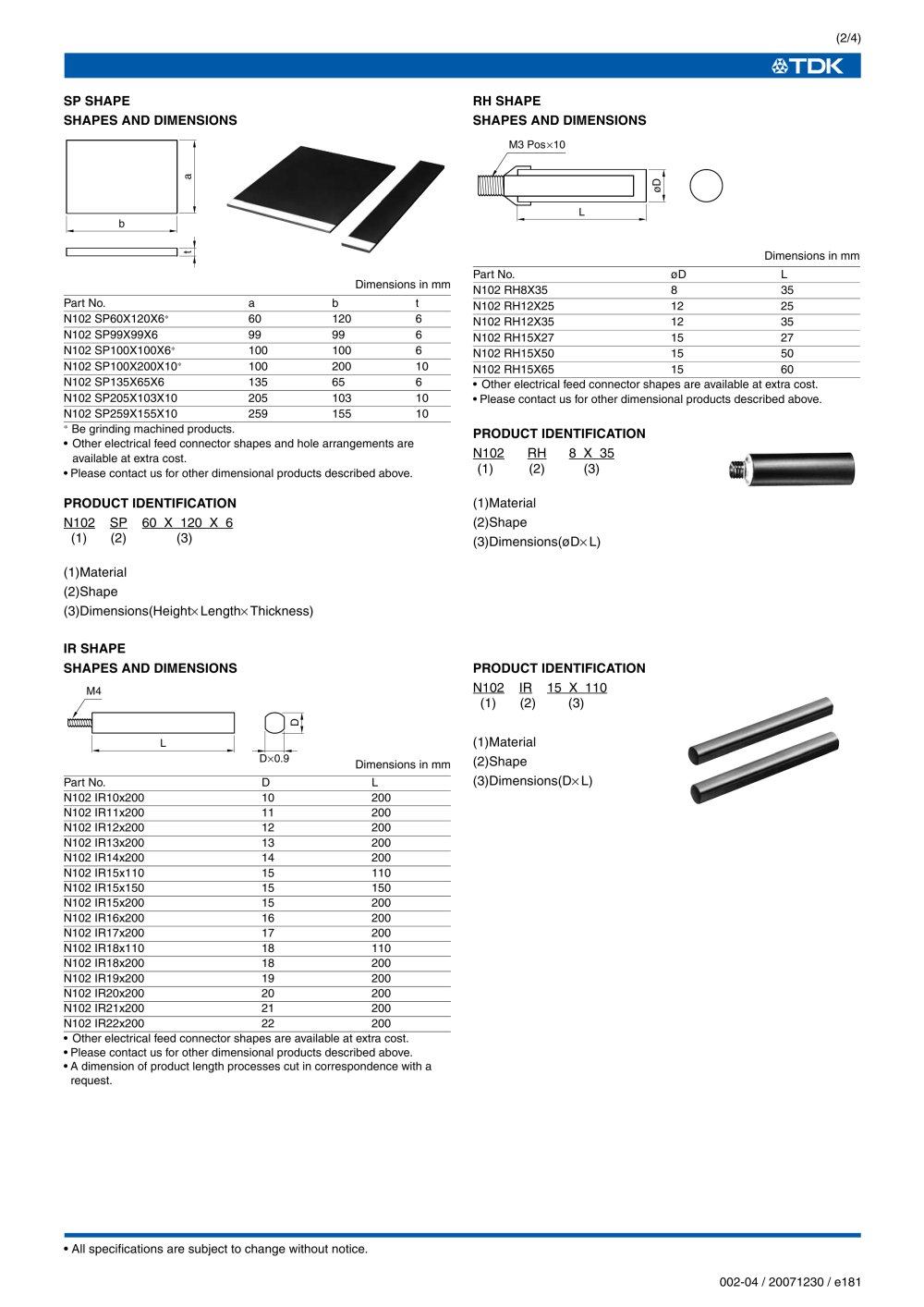

(2/4)

SP SHAPE

SHAPES AND DIMENSIONS

RH SHAPE

SHAPES AND DIMENSIONS

M3 Pos x10


		Dimensions in mm
Part No.	0D	L
N102 RH8X35	8	35
N102 RH12X25	12	25
N102 RH12X35	12	35
N102 RH15X27	15	27
N102 RH15X50	15	50
N102 RH15X65	15	60

Dimensions in mm


Part No.	a	b	t
N102SP60X120X6*	60	120	6
N102 SP99X99X6	99	99	6
N102 SP100X100X6*	100	100	6
N102 SP100X200X10*	100	200	10
N102 SP135X65X6	135	65	6
N102 SP205X103X10	205	103	10
N102 SP259X155X10	259	155	10

• Other electrical feed connector shapes are available at extra cost.

• Please contact us for other dimensional products described above.

• Be grinding machined products.

• Other electrical feed connector shapes and hole arrangements are available at extra cost.

• Please contact us for other dimensional products described above.

PRODUCT IDENTIFICATION

N102 RH 8 X 35 (1) (2) (3)

(1)Material (2)Shape

(3)Dimensions(0Dx L)

PRODUCT IDENTIFICATION

N102 SP 60 X 120 X 6 (1) (2) (3)

(1)Material

(2)Shape

(3)Dimensions(Heightx Lengthx Thickness)

IR SHAPE

SHAPES AND DIMENSIONS PRODUCT IDENTIFICATION

_M4 N102 IB 15 X 110

N102IR11x200 11 200

N102 IR12x200_12_200_

N102 IR13x200_13_200_

N102 IR14x200_14_200_

N102 IR15x110_15_rU)_

N102 IR15x150_15__

N102 IR15x200_15_200_

N102 IR16x200_16_200_

N102 IR17x200_17_200_

N102 IR18x110_18__

N102 IR18x200_18_200_

N102 IR19x200_19_200_

N102 IR20x200_20_200_

N102 IR21x200_21_200_

N102 IR22x200_22_200_

• Other electrical feed connector shapes are available at extra cost.

• Please contact us for other dimensional products described above.

• A dimension of product length processes cut in correspondence with a request.

All specifications are subject to change without notice.

002-04 / 20071230 / e181
