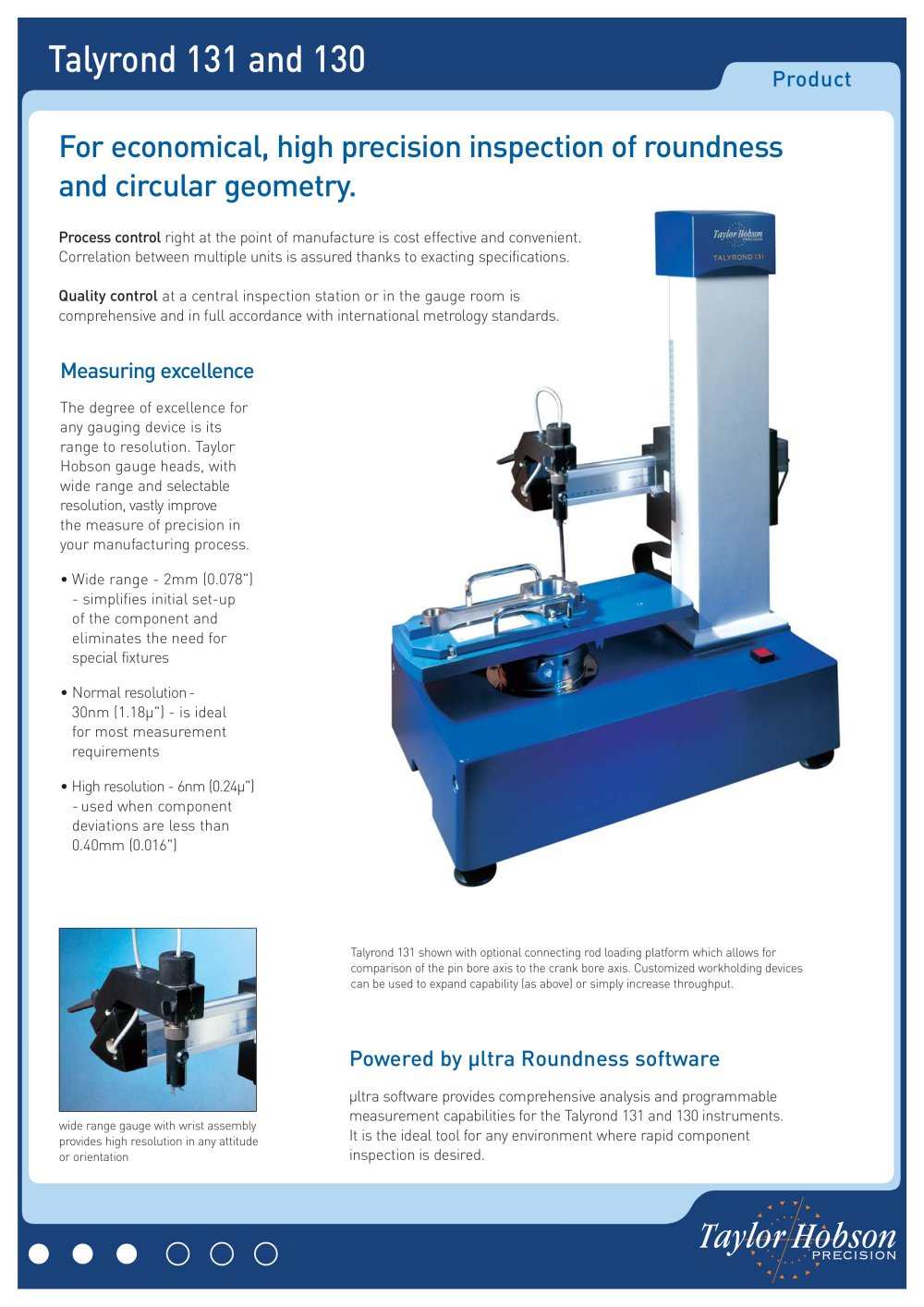

Talyrond 131 and 130

Product

For economical, high precision inspection of roundness and circular geometry.

Process control right at the point of manufacture is cost effective and convenient. Correlation between multiple units is assured thanks to exacting specifications. Quality control at a central inspection station or in the gauge room iscomprehensive and in full accordance with international metrology standards.

Measuring excellence

The degree of excellence for any gauging device is its range to resolution. Taylor Hobson gauge heads, with wide range andselectable resolution, vastly improve the measure of precision in your manufacturing process.•Wide range - 2mm (0.078") - simplifies initial set-up of the component and eliminates the need for special fixtures• Normal resolution-30nm (1.18µ") - is ideal for most measurement requirements•High resolution - 6nm (0.24µ")-used when component deviations are less than 0.40mm (0.016")
Image courtesy of DePuy Orthopaedics Talyrond 131 shown with optional connecting rod loading platform which allows for comparison of the pin bore axis to the crank bore axis. Customized workholding devicescan be used to expand capability (as above) or simply increase throughput. wide range gauge with wrist assemblyprovides high resolution in any attitude or orientation

Powered by µltra Roundness software

µltra software provides comprehensive analysis and programmablemeasurement capabilities for the Talyrond 131 and 130 instruments. It is the ideal tool for any environment where rapid component inspection is desired.
