| (Patent Pending) | ||||||
| | ||||||

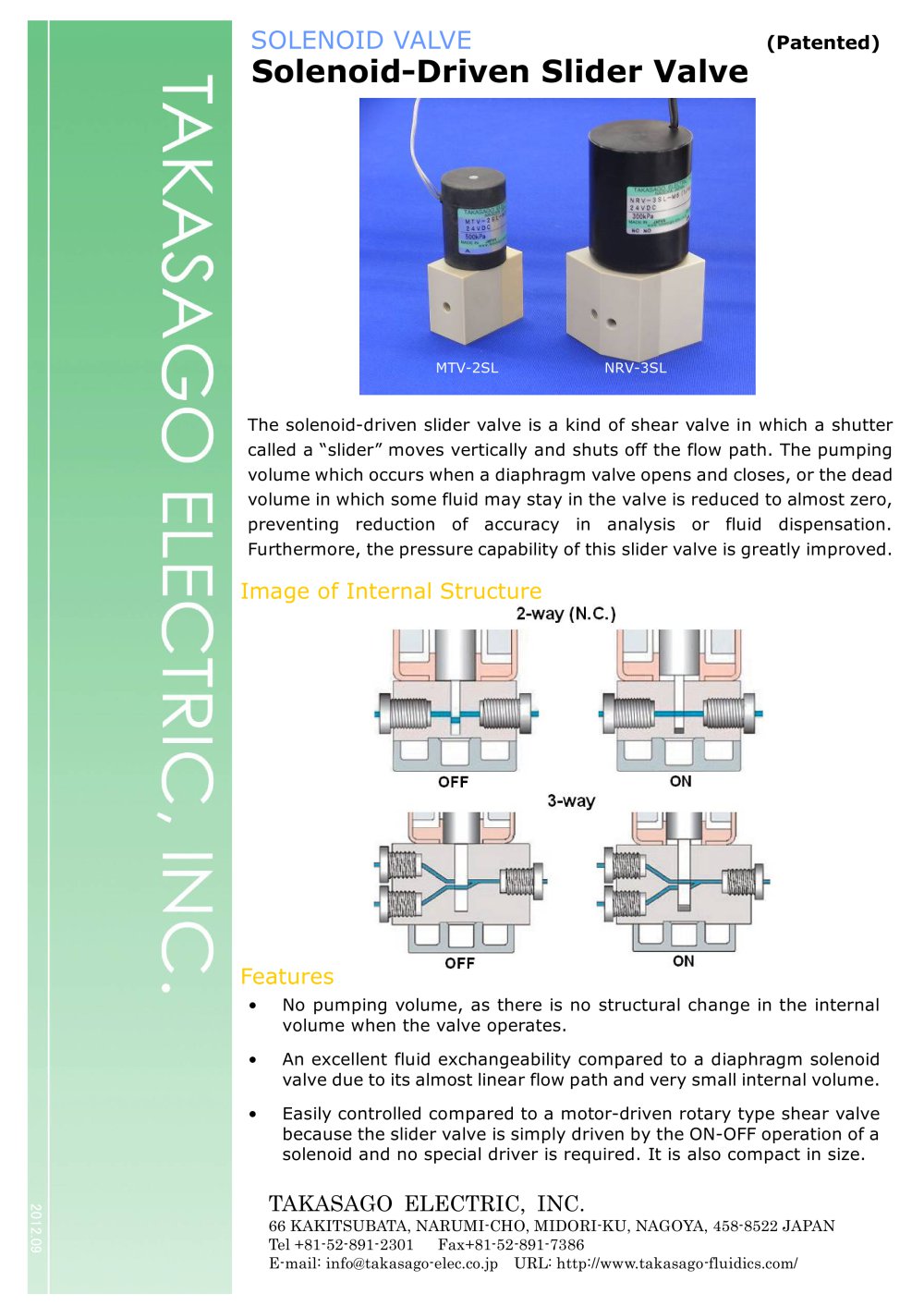

| Solenoid-driven Slider Valve | (Under development) | |||||
| | ||||||
| OFF | ON | |||||
| | ||||||
| | rn | | ||||
| | ||||||
| Image of the internal structure Pumping volume has negative effects on analysis accuracy and precise fluid dispensation. Through the incorporation of part of the flow path into a sliding structure, this pumping volume is reduced to almost zero. The elimination of excess internal volume has reduced cross-contamination. Exhibits an impressive increase in operating pressure. Utilization as a sample injector is now possible. PTFE and PEEK are used as the wetted materials. | ||||||
| | ||||||
| TAKASAGO ELECTRIC, INC. 66 KAKITSUBATA, NARUMI-CHO, MIDORI-KU, NAGOYA, 458-8522 JAPAN Tel +81-52-891-2301 Fax+81-52-891-7386 E-mail: info@takasago-elec.co.jp URL: http://www.takasago-elec.co.jp/ | ||||||
| | ||||||
