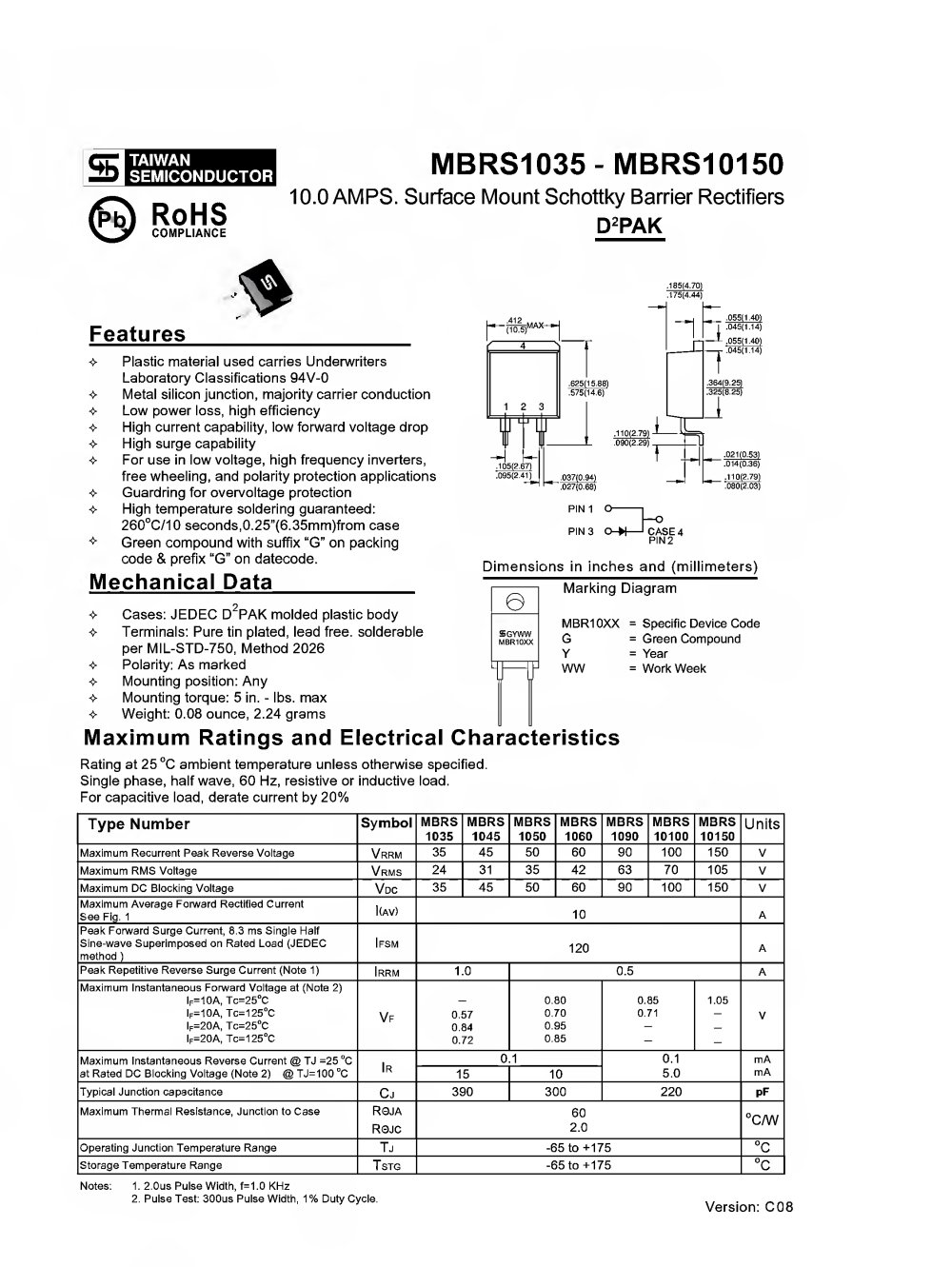

MBRS1035- MBRS10150
10.0 AMPS. Surface Mount Schottky Barrier Rectifiers
D2PAK
TAIWAN
SEMICONDUCTOR
(K) RoHS
X^jr COMPLIANCE
^ I .045(1.141
Features
C45;i i-i:
1
■4- Plastic material used carries Underwriters
Laboratory Classifications 94V-0 ■4- Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
■> High current capability, low forward voltage drop ■> High surge capability
-> For use in low voltage, high frequency inverters, free wheeling, and poiarity protection applications
* Guardrtng for overvoltage protection
* High temperature soldering guaranteed: 260°C/10 seconds,0.25"{6.35mm)from case
*■ Green compound with suffix "G" on packing code & prefix "G" on datecode.
Mechanical Data_
* Cases: JEDEC DVAK molded plastic body
* Terminals: Pure tin plated, lead free, solderable per MIL-STD-750, Method 2026
■:- Polarity: As marked
+■ Mounting position: Any
■> Mounting torque: 5 in. - lbs. max
* Weight: 0.08 ounce, 2.24 grams
.tï?5fi MW 575 £14.6)
5
TI
,021 i.O 531
4[a.36>
■HOfg.TS)
IG5(? B7]
L>37|D 94j
PIN 1 p1n3
O-W-1 CASE 4
PIN2
Dimensions in Inches and (millimeters)
Marking Diagram
e
MBR10XX
G
Y
WW
Specific Device Code Green Compound Year
Work Week
TT
Maximum Ratings and Electrical Characteristics
Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or Inductive load. For capacitive load, derate current by 20%
Type Number
Symbol
MBRS 1035
MBRS 1045
MBRS 1050
MBRS 1060
MBRS 1D90
MBRS 10100
MBRS 10150
Units
Maximum Recurrent Peak Reverse Voltage
Vrrm
35
45
50
60
90
100
150
V
Maximum RMS Vortage
Vrms
24
31
35
42
63
70
105
V
Maximum DC Blocking Voilage
Vrjc
35
45
50
60
90
100
150
V
Max-mum Average Fcrward Rectified Current See Fig. 1
l0w>
10
A
Peak Forward Surge Current, 6.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC rnetiicd 1
!fsm
120
A
Peak Repetitive Reverse Surge Current (Note 1)
I rr M
1
0
0.5
A
Maximum Instantaneous Forward Voltage at (Note 2) lf=10A, Tc=25°C lF=10A, Tc=125°C lF=20A. Tc=25°C lF=20A, Tc=125°C
Vf
Ü.67 0.84 0.72
0.80 0.70 0.96 0.85
0.S5 0.71
1.05
V
Maximum Instantaneous Reverse Current @ TJ =25 °C
i~
0.1
0.1
mA
at Rated DC Blocking Voltage (Note 2) @TJ=100"C
|r
15
10
5 0
roA
Typical Junction capacitance
Cj
390
300
220
pF
Maximum Thermal Resistance, Junction Eo Case
R3JA ROJC
60 2.0
°c/w
Operating Junction Temperature Range
Tj
-65 to+175
Dc
Storage Temperature Range
TsTG
-65 to +175
°c
1 2.0U5 Pulse Width, f=1.0 KHz
2. Pulse Test: 300us Pulse Width, 1% Duly Cycle.
Notes:
Version: C08
