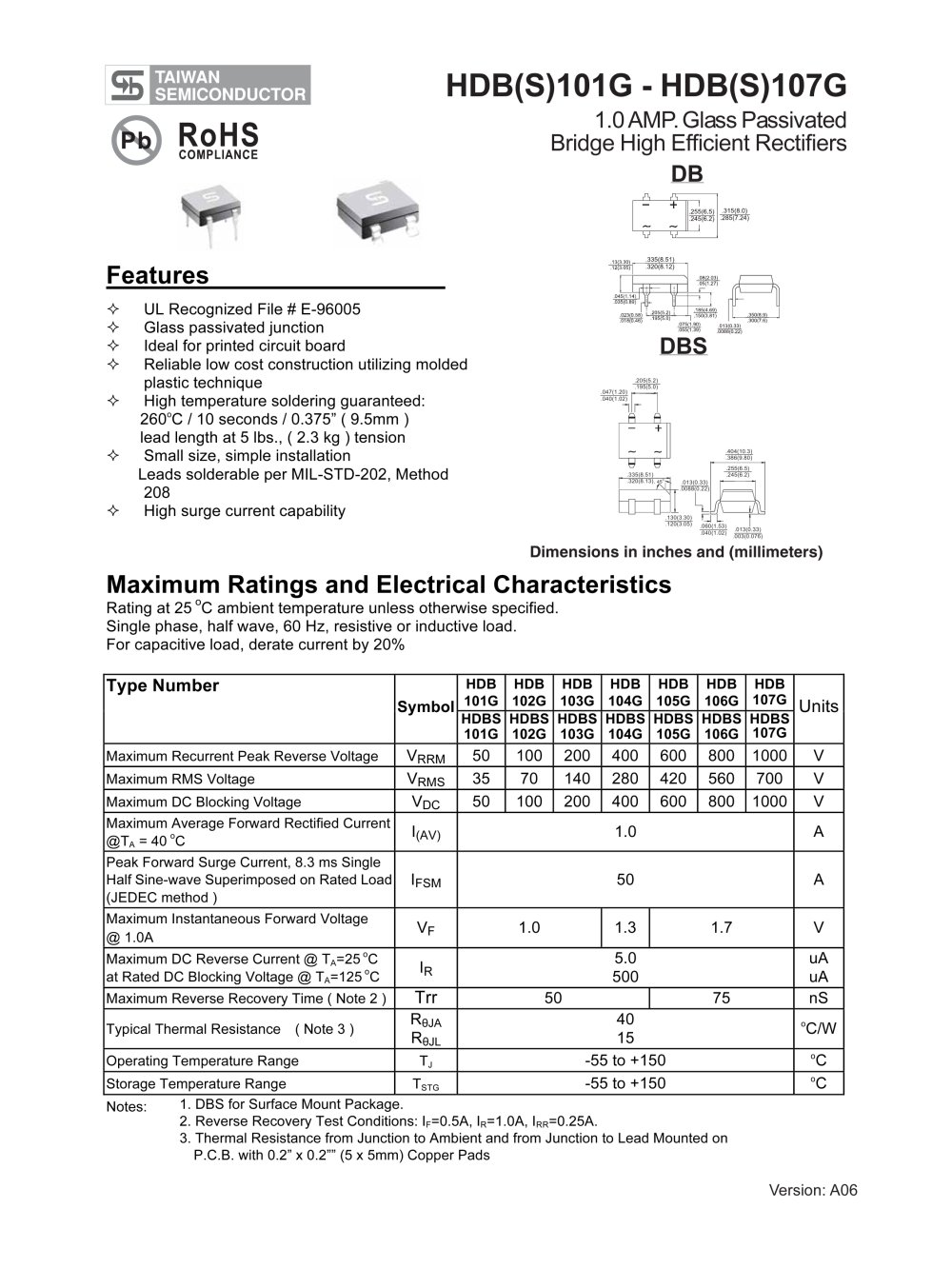

TAIWAN

SEMICONDUCTOR

HDB(S)101G - HDB(S)107G

1.0 AMP. Glass Passivated Bridge High Efficient Rectifiers

рь RoHS

^^pf compliance S**

Features



-	+	п
		.255(6.51
		.245(6.2)
		1

~~:i2p.05)~~ г .320(8.12)

UL Recognized File # E-96005

Glass passivated junction

Ideal for printed circuit board

Reliable low cost construction utilizing molded

plastic technique

High temperature soldering guaranteed: 260^oC / 10 seconds / 0.375" ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension

Small size, simple installation Leads solderable per MIL-STD-202, Method

208

High surge current capability

ЮТВОвО)

DBS

.195(5.0)

.040(^1.22)

-iir -a

.404(10.3) .386(9.80)

.255(6.5) .245(6.2)

.335(8.51)

.130(3.30) ГТТ 1

.120(3.05) об0(1^53)

.013(0.33)

.003(0.076;

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Rating at 25 ^oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%


Type Number	Symbol	hdb 101g	hdb 102g	hdb 103g	hdb 104g	hdb 105g	hdb 106g	hdb 107g	Units
Type Number	Symbol	hdbs 101g	hdbs 102g	hdbs 103g	hdbs 104g	hdbs 105g	hdbs 106g	hdbs 107g	Units
Maximum Recurrent Peak Reverse Voltage	Vrrm	50	100	200	400	600	800	1000	V
Maximum RMS Voltage	Vrms	35	70	140	280	420	560	700	v
Maximum DC Blocking Voltage	Vdc	50	100	200	400	600	800	1000	v
Maximum Average Forward Rectified Current @Ta = 40 ^oC	l(av)	1.0							A
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method )	Ifsm	50							A
Maximum Instantaneous Forward Voltage @ 1.0A	Vf	1.0			1.3	1.7			V
Maximum DC Reverse Current @ T_a=25 ^oC at Rated DC Blocking Voltage @ T_a=125 ^oC	Ir	5.0 500							uA uA
Maximum Reverse Recovery Time ( Note 2 )	Trr	50 75							nS
Typical Thermal Resistance ( Note 3 )	Rbja Rbjl	40 15							^oC/W
Operating Temperature Range	Tj	-55 to +150							^oC
Storage Temperature Range	Tstg	-55 to +150

burrace Mount каскаде. Recovery Test Conditions: I_F=0.5A,

Ir—1.0A, Irr—0.25A.

2. Reverse

3. Thermal Resistance from Junction tu Ambient and from Junction tu Lead Mounted un P.C.B. with 0.2" x 0.2"" (5 x 5mm) Cupper Pads

Version: A06
