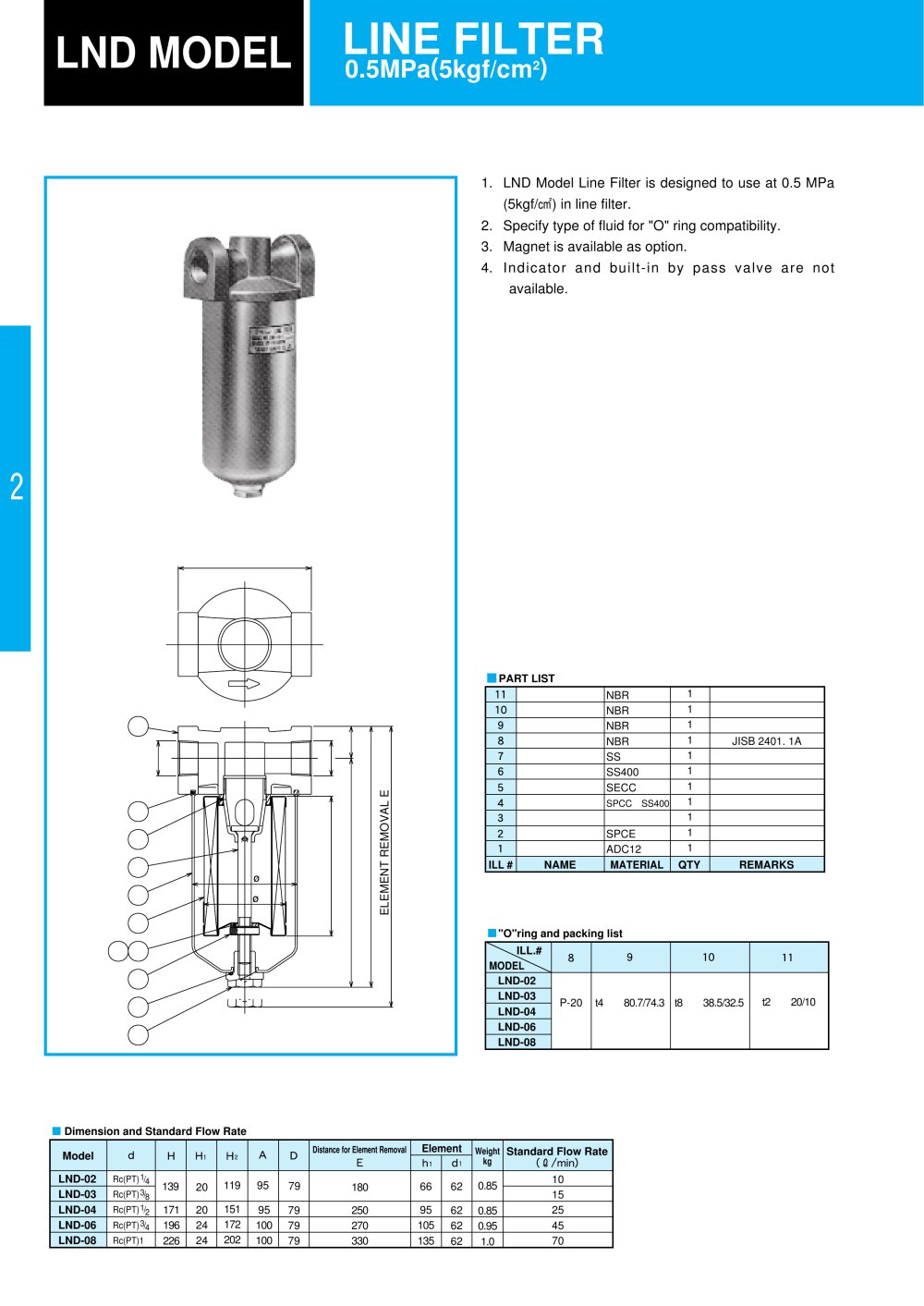

LND MODEL LINE FILTER
1. LND Model Line Filter is designed to use at 0.5 MPa (5kgf/cm) in line filter.
2. Specify type of fluid for "O" ring compatibility.
3. Magnet is available as option.
4. Indicator and built-in by pass valve are not
available.
11
Gasket
NBR
10
Gasket
NBR
9
Packing
NBR
8
"O"Ring
NBR
JISB 2401. 1A
7
Nut
SS
6
Screw Nut
SS400
Washer
SECC
4
Center Rod
SPCC • SS400
Element
2
Bowl
SPCE
1
Head
ADC12
ILL #
NAME
MATERIAL
QTY
REMARKS
"O"ring and packing list
MODEL>\
co
9
10
11
LND-02
P-20
t4Xcp80.7/74.3
t8Xcp38.5/32.5
t2Xcp 20/10
LND-03
LND-04
LND-06
LND-08
Dimension and Standard Flow Rate
Model
d
H
Hi
H2
A
D
Distance for Element Removal E
Element
Weight
(kg)
Standard Flow Rate
( 0 /min)
hi
di
LND-02
Rc(PT)1/4
139
20
119
95
79
180
66
62
0.85
10
LND-03
Rc(PT)3/8
15
LND-04
Rc(PT)1/2
171
20
151
95
79
250
95
62
0.85
25
LND-06
Rc(PT)3/4
196
24
172
100
79
270
105
62
0.95
45
LND-08
Rc(PT)1
226
24
202
100
79
330
135
62
1.0
70
17
