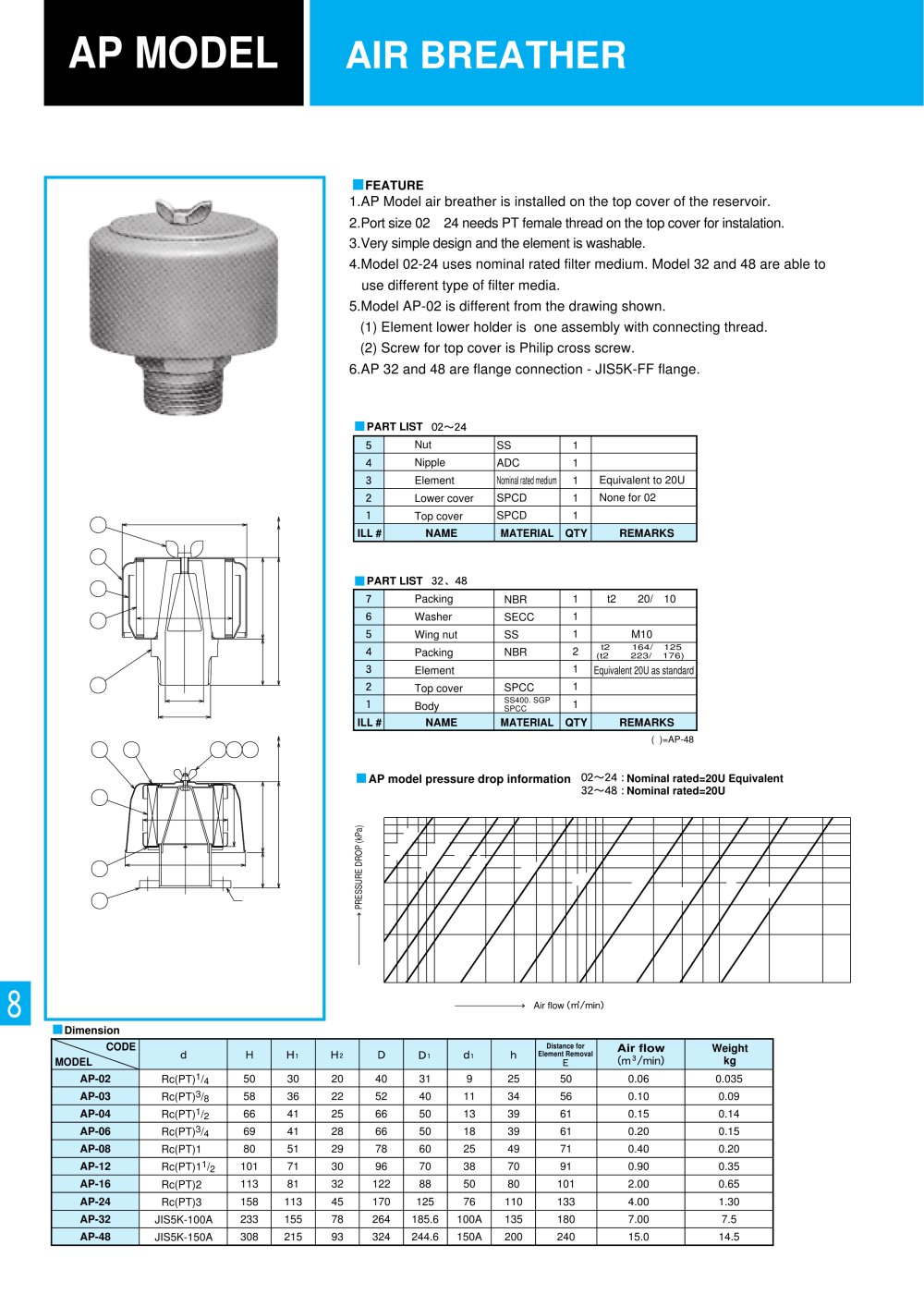

AP MODEL

■feature

1.AP Model air breather is installed on the top cover of the reservoir. 2.Port size 02~24 needs PT female thread on the top cover for instalation. 3.Very simple design and the element is washable.

4.Model 02-24 uses nominal rated filter medium. Model 32 and 48 are able to

use different type of filter media. 5.Model AP-02 is different from the drawing shown.

(1) Element lower holder is one assembly with connecting thread.

(2) Screw for top cover is Philip cross screw.

6.AP 32 and 48 are flange connection - JIS5K-FF flange.

PART LIST 02~24


5	Nut	SS
4	Nipple	ADC
3	Element	Nominal rated medium		Equivalent to 20U
2	Lower cover	SPCD		None for 02
1	Top cover	SPCD
ILL #	NAME	MATERIAL	QTY	REMARKS

PART LIST 32, 48


7	Packing	NBR	1	t2Xcp20/cp10
6	Washer	SECC	1
5	Wing nut	SS	1	M10
4	Packing	NBR	2	t2Xp164/p125 (t2Xa>223/a>176)
3	Element		1	Equivalent 20U as standard
2	Top cover	SPCC	1
1	Body	SS400. SGP SPCC	1
ILL #	NAME	MATERIAL	QTY	REMARKS

AP-02~24

( )=AP^8

(2) (4) (sielTjf


	/	pol
	r	\

AP model pressure drop information 02~24 : Nominal rated=20U Equivalent

32~48 : Nominal rated=20U

Q_ O OL Q

0.5

al co

AP-32,48

0.2

0.1

0.05

0.1

0.2

0.5 1.0

Air flow (rrf/min)

2.0

5.0

10.0

20.0 30.0

Dimension


MODEL""------...^	Q.	H	Hi	Hz	D	Di	di	h	Distance for Element Removal E	Air flow (m³/min)	Weight (kg)
AP-02	Rc(PT)¹/4	50	30	20	40	31	9	25	50	0.06	0.035
AP-03	Rc(PT)³/8	58	36	22	52	40	11	34	56	0.10	0.09
AP-04	Rc(PT)¹/2	66	41	25	66	50	13	39	61	0.15	0.14
AP-06	Rc(PT)³/4	69	41	28	66	50	18	39	61	0.20	0.15
AP-08	Rc(PT)1	80	51	29	78	60	25	49	71	0.40	0.20
AP-12	Rc(PT)1¹/2	101	71	30	96	70	38	70	91	0.90	0.35
AP-16	Rc(PT)2	113	81	32	122	88	50	80	101	2.00	0.65
AP-24	Rc(PT)3	158	113	45	170	125	76	110	133	4.00	1.30
AP-32	JIS5K-100A	233	155	78	264	185.6	100A	135	180	7.00	7.5
AP-48	JIS5K-150A	308	215	93	324	244.6	150A	200	240	15.0	14.5
