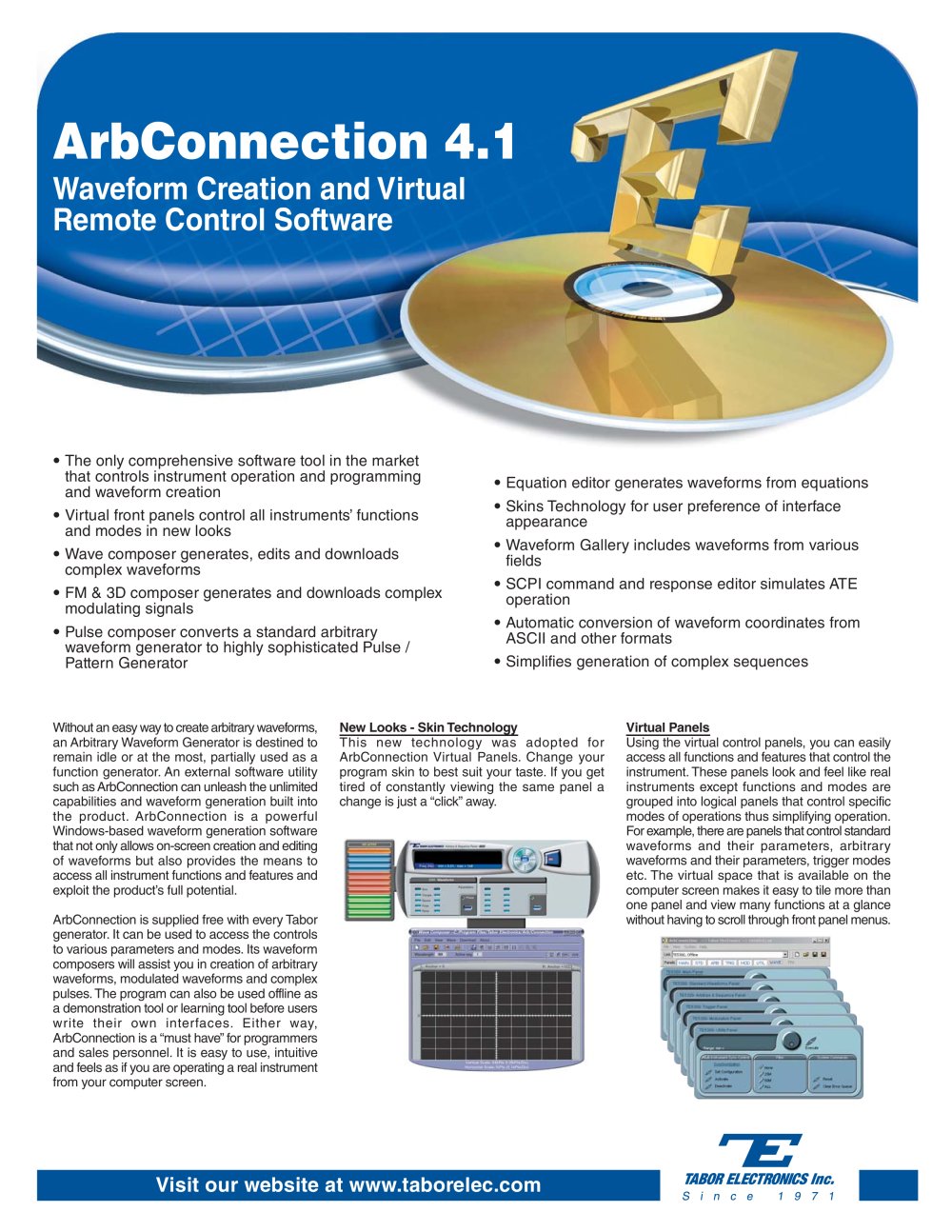

The only comprehensive software tool In the market that controls instrument operation and programming and waveform creation

Virtual front panels control all instruments' functions and modes in new looks

Wave composer generates, edits and downloads complex waveforms

FM & 3D composer generates and downloads complex modulating signals

Pulse composer converts a standard arbitrary waveform generator to highly sophisticated Pulse / Pattern Generator

■

• Equation editor generates waveforms from equations

• Skins Technology for user preference of interface

■

appearance

• Waveform Gallery Includes waveforms from various fields

• SCPI command and response editor simulates ATE operation

• Automatic conversion of waveform coordinates from ASCII and other formats

• Simplifies generation of complex sequences

■

■

■

Without an easy way to create arbitrary waveforms, an Arbitrary Waveform Generator is destined to remain idle or at the most, partially used as a function generator. An external software utility such as ArbConnection can unleash the unlimited capabilities and waveform generation built into the product. ArbConnection is a powerful Windows-based waveform generation software that not only allows on-screen creation and editing of waveforms but also provides the means to access all instrument functions and features and exploit the product's full potential.

ArbConnection is supplied free with every Tabor generator. It can be used to access the controls to various parameters and modes. Its waveform composers will assist you in creation of arbitrary waveforms, modulated waveforms and complex pulses. The program can also be used offline as a demonstration tool or learning tool before users write their own interfaces. Either way, ArbConnection is a "must have" for programmers and sales personnel. It is easy to use, intuitive and feels as if you are operating a real instrument from your computer screen.

This new technology was adopted for ArbConnection Virtual Panels. Change your program skin to best suit your taste. If you get tired of constantly viewing the same panel a change is just a "click" away.

Using the virtual control panels, you can easily access all functions and features that control the instrument. These panels look and feel like real instruments except functions and modes are grouped into logical panels that control specific modes of operations thus simplifying operation. For example, there are panels that control standard waveforms and their parameters, arbitrary waveforms and their parameters, trigger modes etc. The virtual space that is available on the computer screen makes it easy to tile more than one panel and view many functions at a glance without having to scroll through front panel menus.
