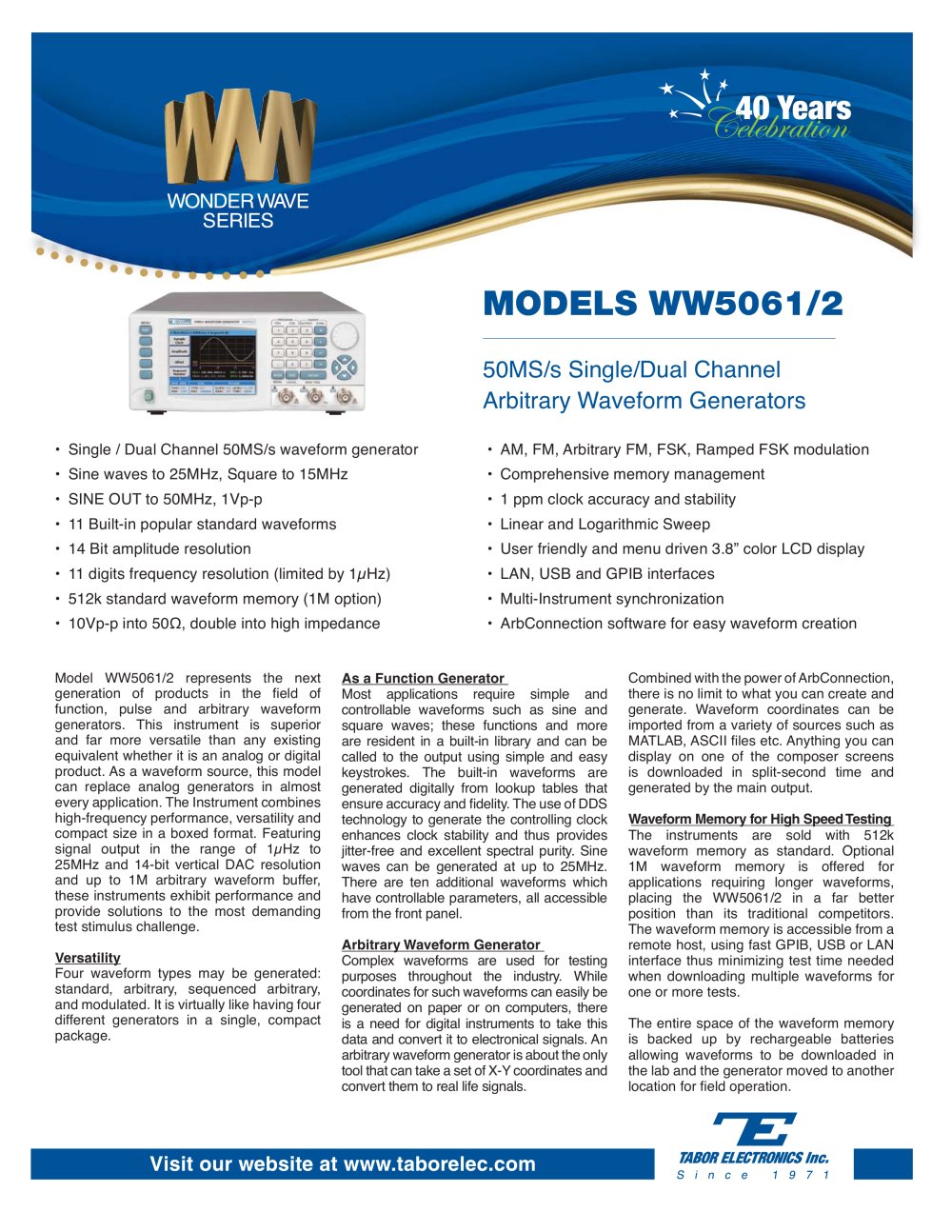

Model WW5061 Arbitrary Waveform Function Generator - Tabor Electronics - #1

• Single-channel 50MS/s waveform generator

• Sine and Square waves to 25MHz

• 10 Built-in popular standard waveforms

• 14 Bit amplitude resolution

• 11 digits frequency resolution (limited by 1uHz)

• 512kstandard waveform memory (1M option)

• 1 ppm clock accuracy and stability

• Comprehensive memory management, including segmentation and sequences

• AM.FM, Arbitrary FM, FSK, Ramped FSK modulation

• Linear and Logarithmic Sweep

• User friendly and menu driven 3.8" color LCD display

• Multi-Instrument synchronization

• DDS technology for extremely low phase noise signals

• Ethernet 10/100, USB 2.0 and GPIB interfaces

• ArbConnection software for easy waveform creation&control

Most applications require simple and controllable waveforms such as sine and square waves; these functions and more are resident in a built-in library and can be called to the output using simple and easy keystrokes. The built-in waveforms are generated digitally from lookup tables that ensure accuracy and fidelity. The use of DDS technology to generate the controlling clock enhances clock stability and thus provides jitter-free and excellent spectral purity. Sine and square waves can be generated at up to 25MHz. There are eight additional waveforms of which have controllable parameters, all accessible from the front panel.

Complex waveforms are used for testing purposes throughout the industry. While coordinates for such waveforms can easily be generated on paper or on computers, there is a need for digital instruments to take this data and convert it to electronical signals. An arbitrary waveform generator is about the only tool that can take a set of X-Y coordinates and convert them to real life signals. Combined with the

power of ArbConnection, there is no limit to what you can create and generate. Waveform coordinates can be imported from a variety of sources such as MATLAB, ASCII files etc. Anything you can display on one of the composer screens is downloaded in split-second time and generated by the main output.

The instruments are sold with 512k waveform memory as standard. Optional 1M waveform memory is offered for applications requiring longer waveforms, placing the 5061 series in a far better position than its traditional competitors. The waveform memory is accessible from a remote host, using fast GPIB, USB or LAN interface thus minimizing test time needed when downloading multiple waveforms for one or more tests. The entire space of the waveform memory is backed up by rechargeable batteries allowing waveforms to be downloaded in the lab and the generator moved to another location for field operation.

Model 5061 represents the company's next generation of products in the field of function, pulse and arbitrary waveform generators. This instrument is superior and far more versatile than any existing equivalent weather it is an analog or digital product. As a waveform source, this model can replace analog generators in almost every application. The Instrument combines high-frequency performance, versatility and compact size in a boxed format. Featuring signal output in the range of 1 |iHz to 25MHz and 14-bit vertical DAC resolution and upto1M arbitrary waveform buffer, these instruments exhibit performance and provide solutions to the most demanding test stimulus challenge.

Four waveform types may be generated: standard, arbitrary, sequenced arbitrary, and modulated. It is virtually like having four different generators in a single, compact package.
