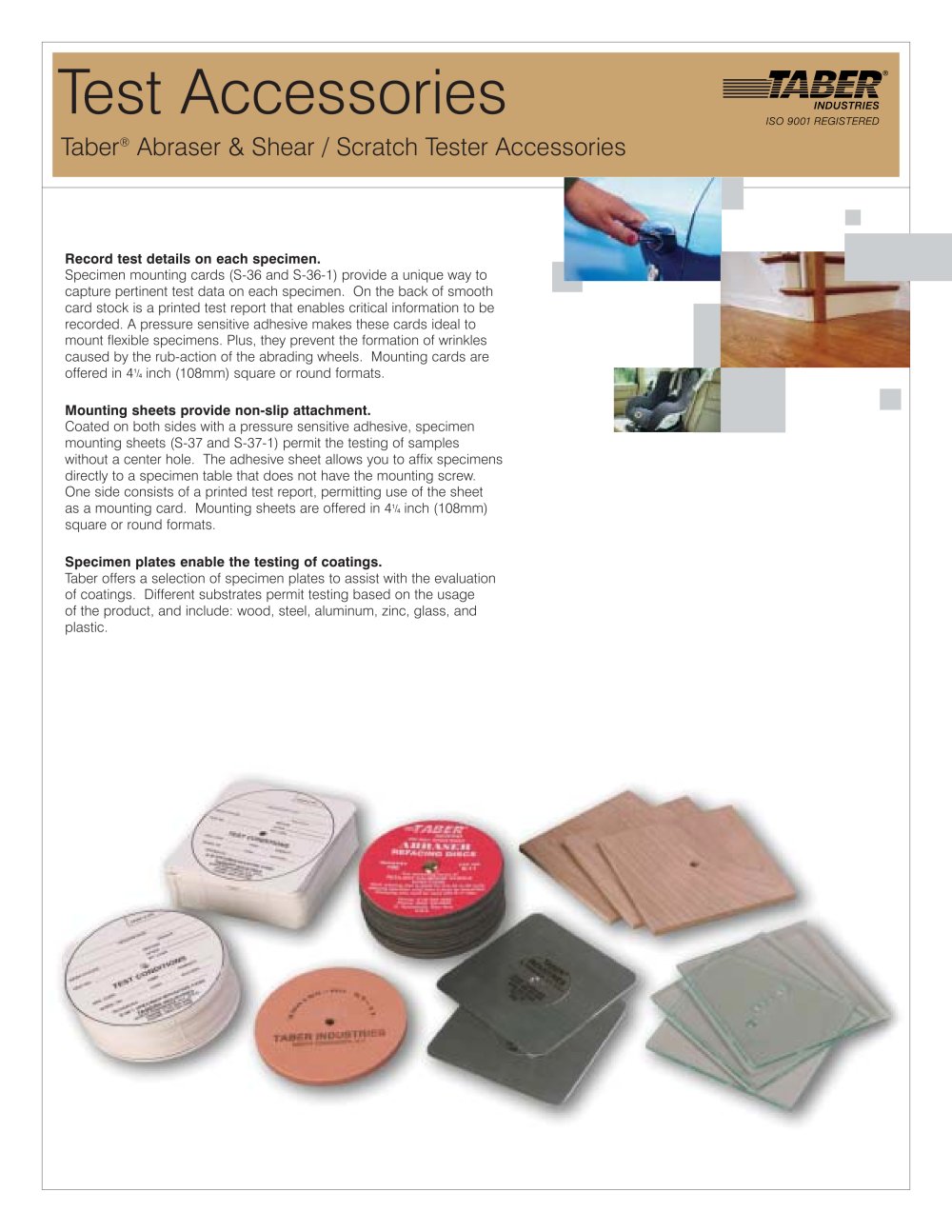

Test Accessories

Taber

®

Abraser & Shear / Scratch Tester Accessories

Record test details on each specimen. Specimen mounting cards (S-36 and S-36-1) provide a unique way to capture pertinent test data on each specimen. On the back of smooth card stock is a printed test report that enables critical information to berecorded. A pressure sensitive adhesive makes these cards ideal tomount flexible specimens. Plus, they prevent the formation of wrinkles caused by the rub-action of the abrading wheels. Mounting cards are offered in 4
1 / 4 inch (108mm) square or round formats. Mounting sheets provide non-slip attachment. Coated on both sides with a pressure sensitive adhesive, specimen mounting sheets (S-37 and S-37-1) permit the testing of samples without a center hole. The adhesive sheet allows you to affix specimensdirectly to a specimen table that does not have the mounting screw.One side consists of a printed test report, permitting use of the sheet as a mounting card. Mounting sheets are offered in 4
1 / 4 inch (108mm)square or round formats. Specimen plates enable the testing of coatings. Taber offers a selection of specimen plates to assist with the evaluation of coatings. Different substrates permit testing based on the usage of the product, and include: wood, steel, aluminum, zinc, glass, andplastic.
