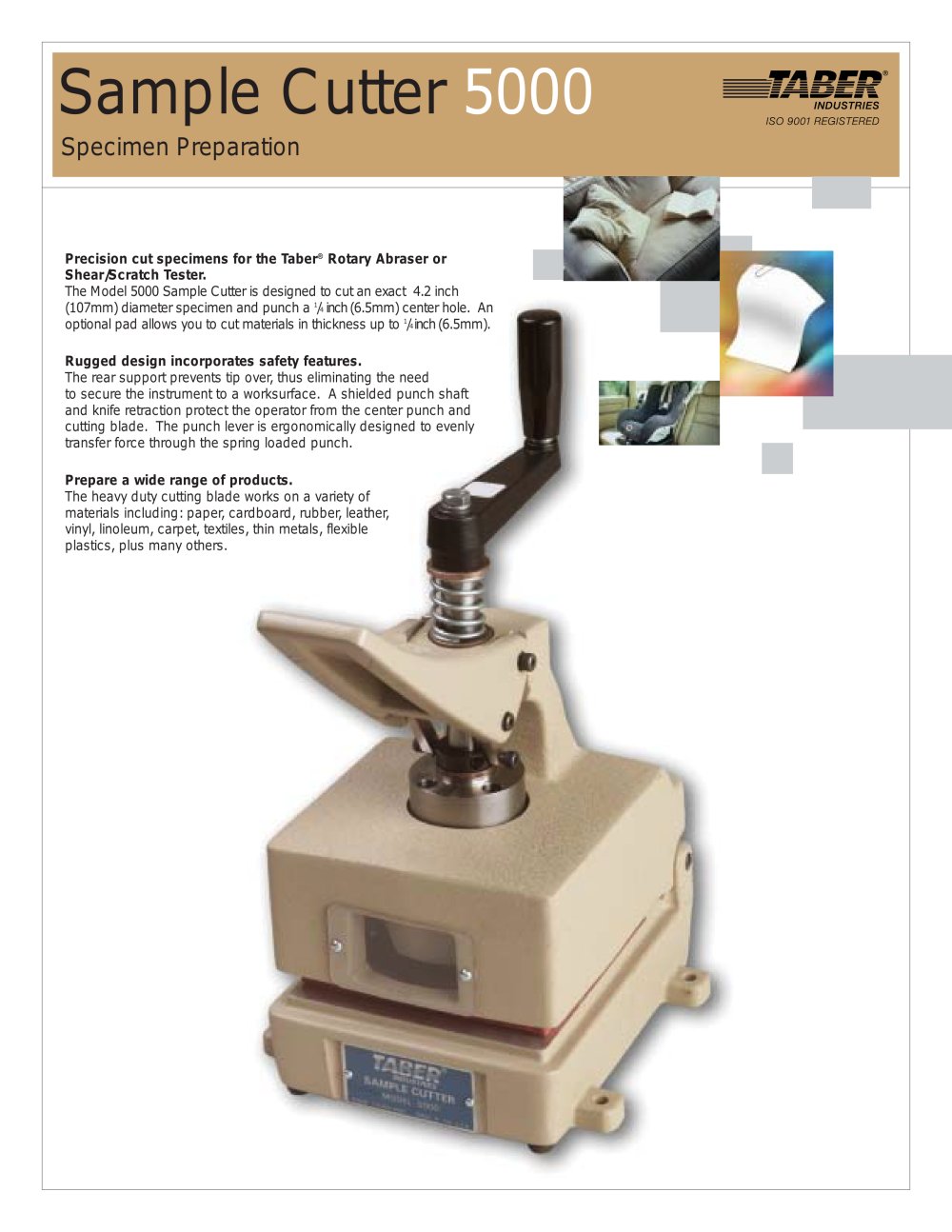

Sample Cutter 5000

Specimen Preparation

The Model 5000 Sample Cutter is designed to cut an exact 4.2 inch(107mm) diameter specimen and punch a Precision cut specimens for the Taber
® Rotary Abraser orShear/Scratch Tester.
1 /
4 inch(6.5mm) center hole. Anoptional pad allows you to cut materials in thickness up to
1 /
4 inch(6.5mm). Rugged design incorporates safety features. The rear support prevents tip over, thus eliminating the needto secure the instrument to a worksurface. A shielded punch shaftand knife retraction protect the operator from the center punch and cutting blade. The punch lever is ergonomically designed to evenly transfer force through the spring loaded punch. Prepare a wide range of products. The heavy duty cutting blade works on a variety of materials including: paper, cardboard, rubber, leather, vinyl, linoleum, carpet, textiles, thin metals, flexible plastics, plus many others.
