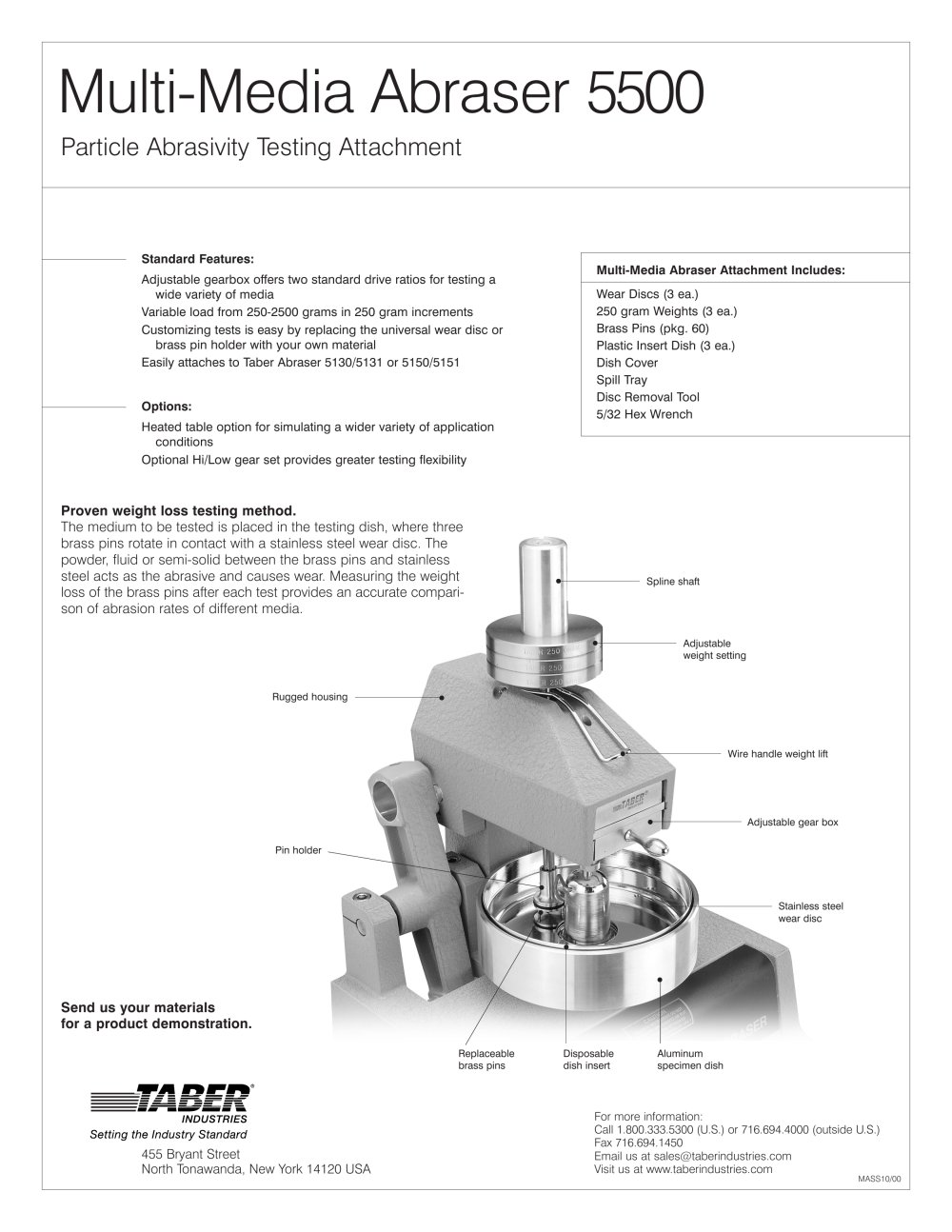

Multi-Media Abraser 5500 Particle Abrasivity Testing Attachment

Standard Features: Adjustable gearbox offers two standard drive ratios for testing a wide variety of mediaVariable load from 250-2500 grams in 250 gram increments Customizing tests is easy by replacing the universal wear disc or brass pin holder with your own materialEasily attaches to Taber Abraser 5130/5131 or 5150/5151 Multi-Media Abraser Attachment Includes: Wear Discs (3 ea.)250 gram Weights (3 ea.) Brass Pins (pkg. 60) Plastic Insert Dish (3 ea.) Dish Cover Spill Tray Disc Removal Tool 5/32 Hex Wrench Options: Heated table option for simulating a wider variety of application conditions Optional Hi/Low gear set provides greater testing flexibility

Proven weight loss testing method. The medium to be tested is placed in the testing dish, where threebrass pins rotate in contact with a stainless steel wear disc. Thepowder, fluid or semi-solid between the brass pins and stainless steel acts as the abrasive and causes wear. Measuring the weightloss of the brass pins after each test provides an accurate compari-sonof abrasion rates of different media.

Spline shaft Adjustable weight setting Rugged housing Wire handle weight lift Adjustable gear boxStainless steelwear disc Pin holder

Send us your materials for a product demonstration.

Replaceable brass pins Aluminumspecimen dishDisposabledish insert

For more information: Call 1.800.333.5300 (U.S.) or 716.694.4000 (outside U.S.) Fax 716.694.1450 Email us at sales@taberindustries.comVisit us at www.taberindustries.com

455 Bryant StreetNorth Tonawanda, New York 14120 USA

MASS10/00
