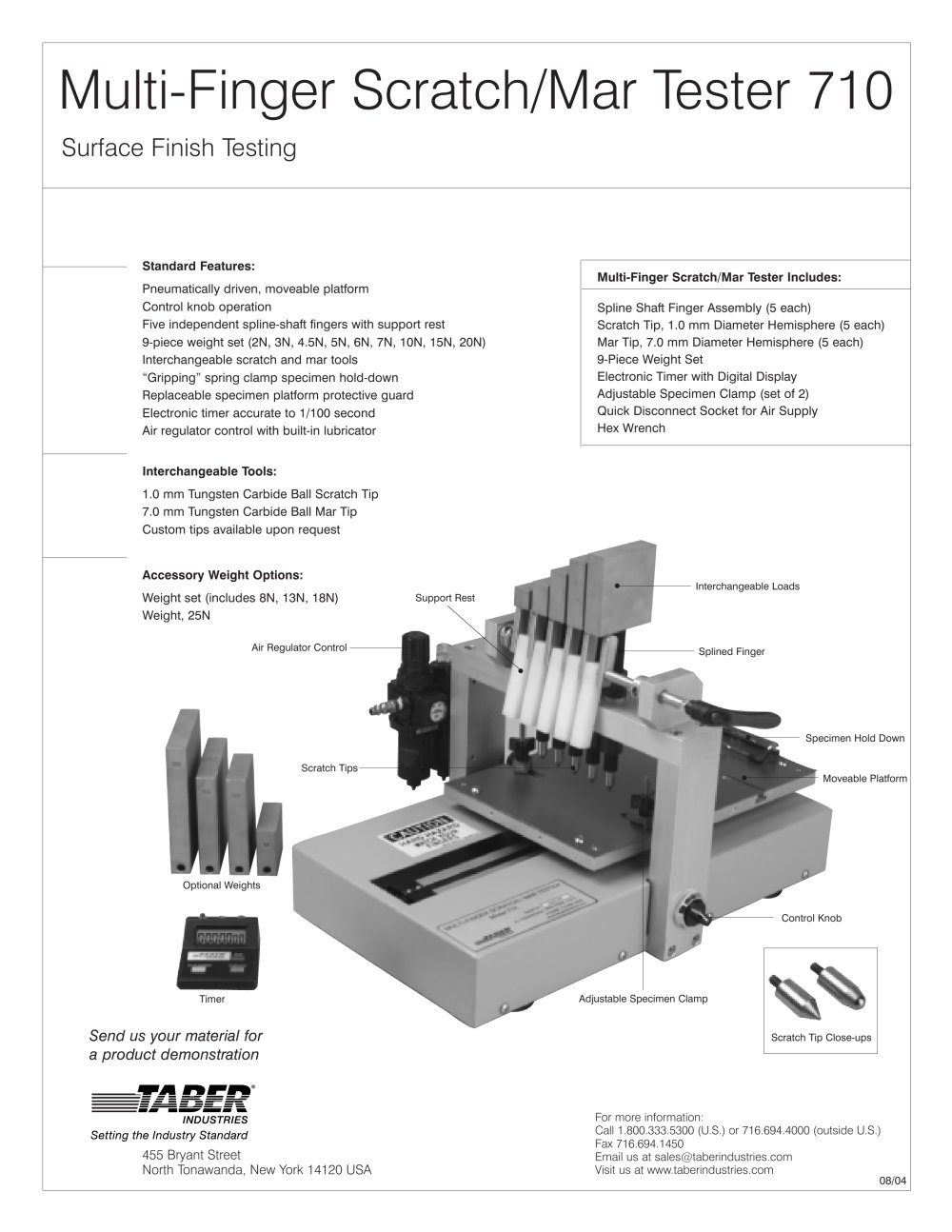

| Multi-Finger Scratch/Mar Tester 710 Surface Finish Testing | ||||||||||||||||||||||||||
| Standard Features: Pneumatically driven, moveable platform Control knob operation Five independent spline-shaft fingers with support rest 9-piece weight set (2N, 3N, 4.5N, 5N, 6N, 7N, 10N, 15N, 20N) Interchangeable scratch and mar tools "Gripping" spring clamp specimen hold-down Replaceable specimen platform protective guard Electronic timer accurate to 1/100 second Air regulator control with built-in lubricator Interchangeable Tools: 1.0 mm Tungsten Carbide Ball Scratch Tip 7.0 mm Tungsten Carbide Ball Mar Tip Custom tips available upon request | ||||||||||||||||||||||||||
| Multi-Finger Scratch/Mar Tester Includes: | ||||||||||||||||||||||||||
| Spline Shaft Finger Assembly (5 each) Scratch Tip, 1.0 mm Diameter Hemisphere (5 each) Mar Tip, 7.0 mm Diameter Hemisphere (5 each) 9-Piece Weight Set Electronic Timer with Digital Display Adjustable Specimen Clamp (set of 2) Quick Disconnect Socket for Air Supply Hex Wrench | ||||||||||||||||||||||||||
| Accessory Weight Options: Weight set (includes 8N, 13N, 18N) Weight, 25N Air Regulator Control | ||||||||||||||||||||||||||
| Interchangeable Loads | ||||||||||||||||||||||||||
| Support Rest | ||||||||||||||||||||||||||
| Specimen Hold Down | ||||||||||||||||||||||||||
| Moveable Platform | ||||||||||||||||||||||||||
| Send us your material for a product demonstration | ||||||||||||||||||||||||||
| For more information: Call 1.800.333.5300 (U.S.) or 716.694.4000 (outside U.S.) Fax 716.694.1450 Email us at sales@taberindustries.com Visit us at www.taberindustries.com | ||||||||||||||||||||||||||
| INDUSTRIES Setting the Industry Standard 455 Bryant Street North Tonawanda, New York 14120 USA | ||||||||||||||||||||||||||
| 08/04 | ||||||||||||||||||||||||||
