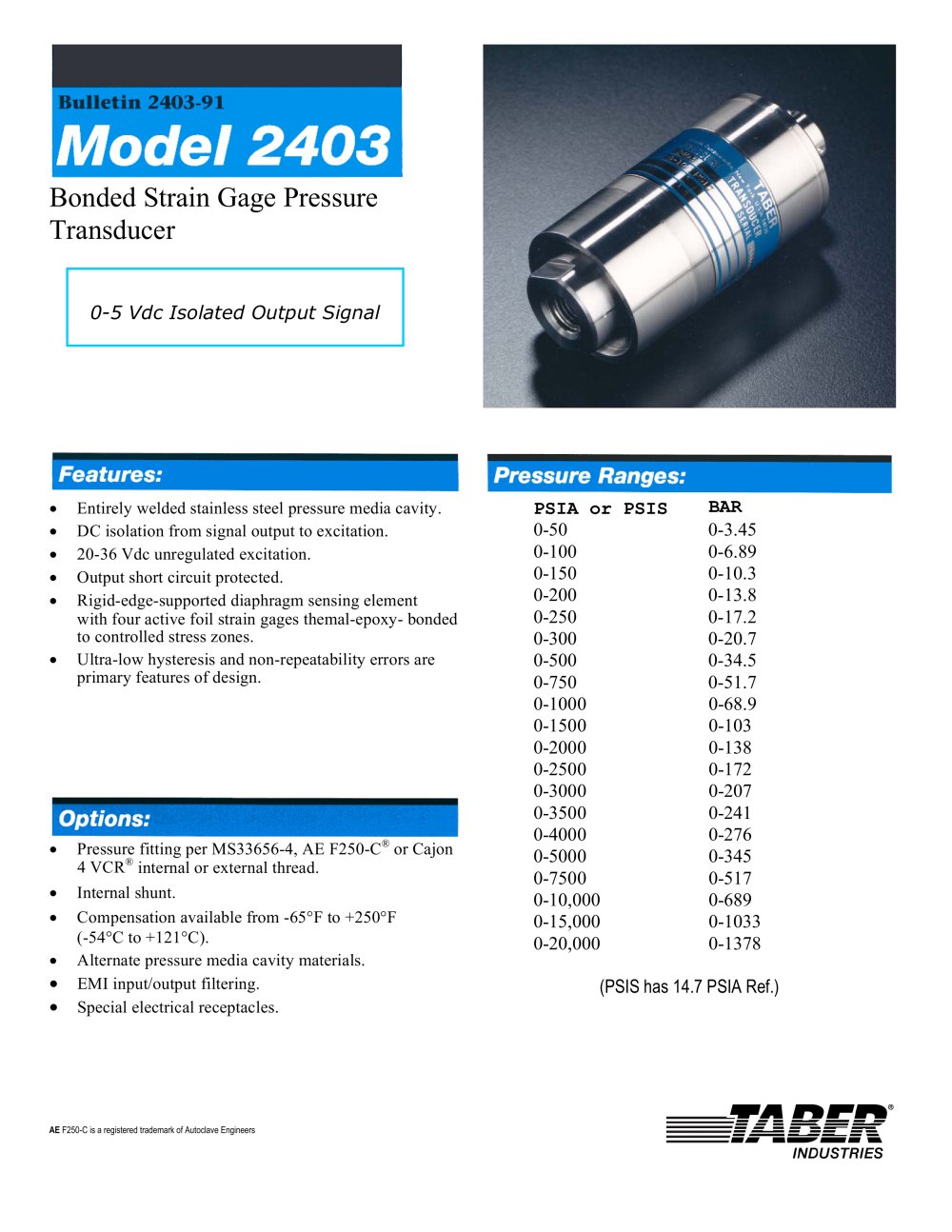

Taber Ground Support Transducers Model 2403 - Taber Industries - #1

• Entirely welded stainless steel pressure media cavity. PSIA or PSIS BAR

• DC isolation from signal output to excitation. 0-50 0-3.45

• 20-36 Vdc unregulated excitation. 0-100 0-6.89

• Output short circuit protected. ^{0-150 0-10.3}

• Rigid-edge-supported diaphragm sensing element ^{0-200 0-13.8} with four active foil strain gages themal-epoxy- bonded 0-250 0-17.2 to controlled stress zones. 0_-300 0_-20.7

• Ultra-low hysteresis and non-repeatability errors are 0-500 0-34.5 primary features of design. _{0-750 0-51.7}

0-1000 0-68.9

0-1500 0-103

0-2000 0-138

0-2500 0-172

0-3000 0-207

0-3500 0-241

® 0-4000 0-276

• Pressure fitting per MS33656-4, AE F250-C or Cajon 0_-5000 0_-345 4 VCR® internal or external thread. 0 7500 0 517

• I^{nternal shunt.} 0-10,000 0-689

• Compensation available from -65°F to +250°F 0_-15 000 0_-1033

^(-54°^{C to} +¹²¹°^C). 0-20,000 0-1378

• Alternate pressure media cavity materials.

• emi input/output filtering. (PSIS has 14.7 PSIA Ref.)

• Special electrical receptacles.

AE F250-C is a registered trademark of Autoclave Engineers
