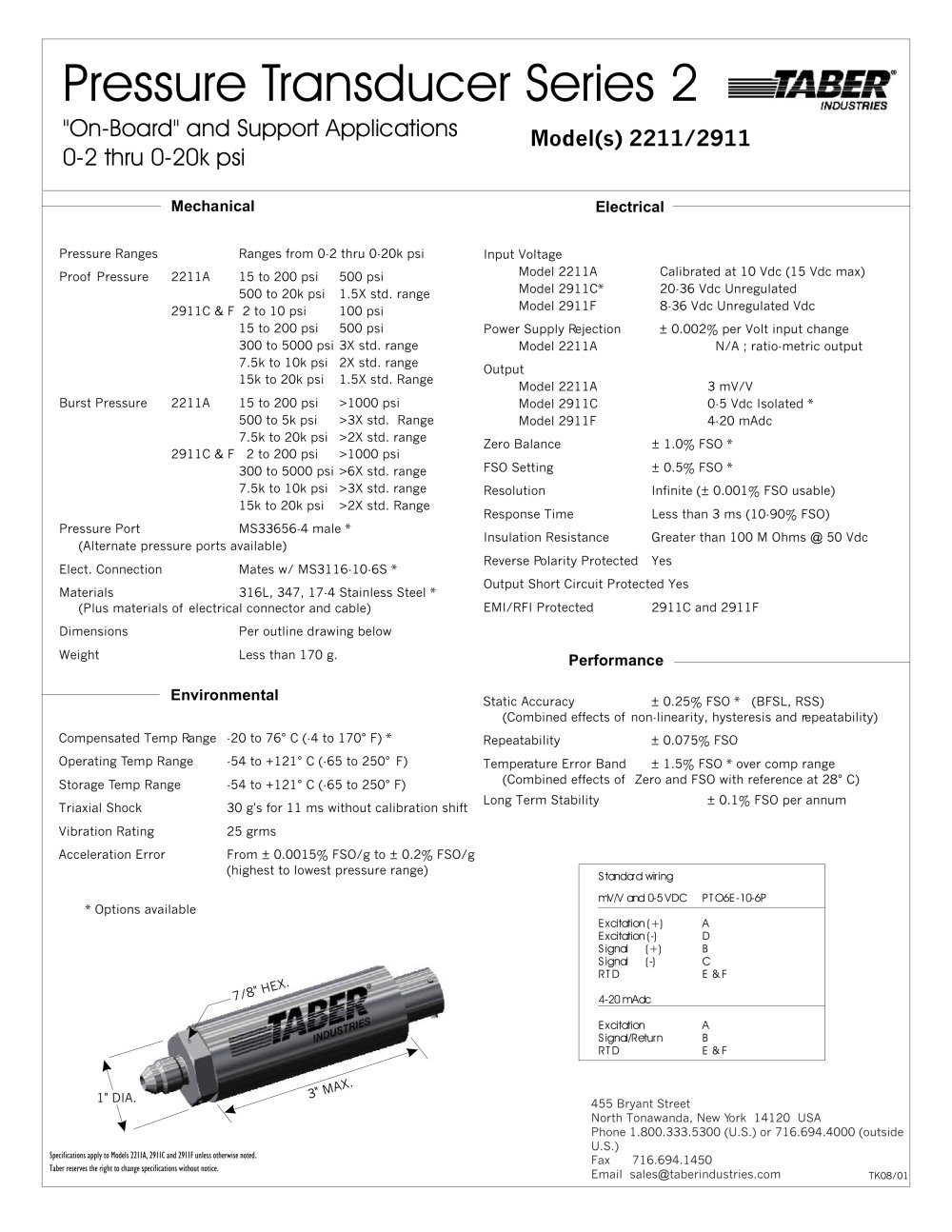

Pressure Transducer Series 2

"On-Board" and Support Applications0-2 thru 0-20k psi

Model(s) 2211/2911

Mechanical Electrical

Pressure Ranges Ranges from 0-2 thru 0-20k psi Proof Pressure 2211A 15 to 200 psi 500 psi 500 to 20k psi 1.5X std. range2911C & F 2 to 10 psi100 psi 15 to 200 psi 500 psi 300 to 5000 psi3X std. range 7.5k to 10k psi2X std. range 15k to 20k psi1.5X std. RangeBurst Pressure2211A 15 to 200 psi >1000 psi 500 to 5k psi>3X std. Range 7.5k to 20k psi >2X std. range2911C & F 2 to 200 psi >1000 psi 300 to 5000 psi>6X std. range 7.5k to 10k psi>3X std. range 15k to 20k psi>2X std. RangePressure Port MS33656-4 male * (Alternate pressure ports available)Elect. Connection Mates w/ MS3116-10-6S *Materials 316L, 347, 17-4 Stainless Steel * (Plus materials of electrical connector and cable)Dimensions Per outline drawing below Weight Less than 170 g. Input VoltageModel 2211ACalibrated at 10 Vdc (15 Vdc max) Model 2911C*20-36 Vdc Unregulated Model 2911F8-36 Vdc Unregulated VdcPower Supply Rejection ± 0.002% per Volt input changeModel 2211A N/A ; ratio-metric outputOutputModel 2211A3 mV/V Model 2911C0-5 Vdc Isolated * Model 2911F4-20 mAdcZero Balance ± 1.0% FSO * FSO Setting ± 0.5% FSO * ResolutionInfinite (± 0.001% FSO usable)Response TimeLess than 3 ms (10-90% FSO) Insulation ResistanceGreater than 100 M Ohms @ 50 VdcReverse Polarity ProtectedYesOutput Short Circuit Protected Yes EMI/RFI Protected2911C and 2911FStatic Accuracy± 0.25% FSO * (BFSL, RSS) (Combined effects of non-linearity, hysteresis and repeatability)Repeatability± 0.075% FSOTemperature Error Band± 1.5% FSO * over comp range (Combined effects of Zero and FSO with reference at 28° C)Long Term Stability± 0.1% FSO per annum

Performance Environmental

Compensated Temp Range -20 to 76° C (-4 to 170° F) * Operating Temp Range-54 to +121° C (-65 to 250° F) Storage Temp Range-54 to +121° C (-65 to 250° F) Triaxial Shock30 g's for 11 ms without calibration shift Vibration Rating25 grms Acceleration ErrorFrom ± 0.0015% FSO/g to ± 0.2% FSO/g (highest to lowest pressure range)
Standard wiring mV/V and 0-5 VDC Excitation (+) Excitation (-) Signal (+) Signal (-) RTD 4-20 mAdc Excitation Signal/Return RTD PTO6E-10-6P A D B C E & F A B E & F * Options available
7/8" HEX. 1" DIA.
3" MAX. 455 Bryant StreetNorth Tonawanda, New York 14120 USA Phone 1.800.333.5300 (U.S.) or 716.694.4000 (outside U.S.)Fax 716.694.1450 Email sales@taberindustries.com Specifications apply to Models 2211A, 2911C and 2911F unless otherwise noted.Taber reserves the right to change specifications without notice. TK08/01
