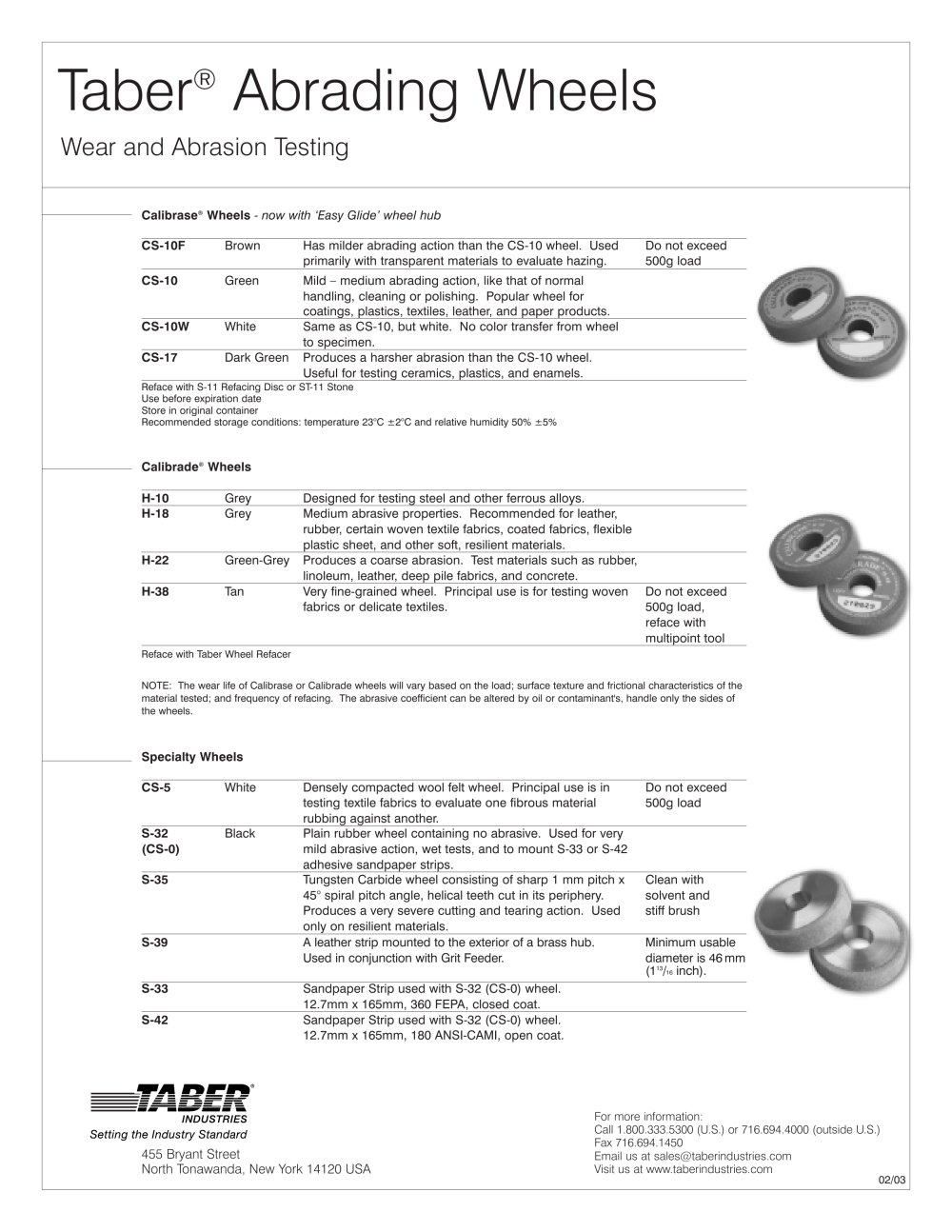

Taber

®

Abrading Wheels

Wear and Abrasion Testing

Calibrase
® Wheels - now with ‘Easy Glide’ wheel hub CS-10F BrownHas milder abrading action than the CS-10 wheel. Used Do not exceedprimarily with transparent materials to evaluate hazing. 500g load CS-10 GreenMild – medium abrading action, like that of normal handling, cleaning or polishing. Popular wheel for coatings, plastics, textiles, leather, and paper products. CS-10W WhiteSame as CS-10, but white. No color transfer from wheel to specimen. CS-17 Dark GreenProduces a harsher abrasion than the CS-10 wheel. Useful for testing ceramics, plastics, and enamels.
Reface with S-11 Refacing Disc or ST-11 StoneUse before expiration date Store in original container Recommended storage conditions: temperature 23°C ±2°C and relative humidity 50% ±5% Calibrade
® Wheels H-10 GreyDesigned for testing steel and other ferrous alloys. H-18 GreyMedium abrasive properties. Recommended for leather, rubber, certain woven textile fabrics, coated fabrics, flexible plastic sheet, and other soft, resilient materials. H-22 Green-GreyProduces a coarse abrasion. Test materials such as rubber, linoleum, leather, deep pile fabrics, and concrete. H-38 TanVery fine-grained wheel. Principal use is for testing wovenDo not exceedfabrics or delicate textiles. 500g load, reface with multipoint tool
Reface with Taber Wheel RefacerNOTE: The wear life of Calibrase or Calibrade wheels will vary based on the load; surface texture and frictional characteristics of thematerial tested; and frequency of refacing. The abrasive coefficient can be altered by oil or contaminant's, handle only the sides ofthe wheels. Specialty Wheels CS-5 WhiteDensely compacted wool felt wheel. Principal use is inDo not exceedtesting textile fabrics to evaluate one fibrous material 500g load rubbing against another. S-32 BlackPlain rubber wheel containing no abrasive. Used for very (CS-0) mild abrasive action, wet tests, and to mount S-33 or S-42 adhesive sandpaper strips. S-35 Tungsten Carbide wheel consisting of sharp 1 mm pitch x Clean with45°spiral pitch angle, helical teeth cut in its periphery. solvent and Produces a very severe cutting and tearing action. Used stiff brush only on resilient materials. S-39 A leather strip mounted to the exterior of a brass hub. Minimum usableUsed in conjunction with Grit Feeder. diameter is 46mm(1
13 /
16 inch). S-33 Sandpaper Strip used with S-32 (CS-0) wheel. 12.7mm x 165mm, 360 FEPA, closed coat. S-42 Sandpaper Strip used with S-32 (CS-0) wheel. 12.7mm x 165mm, 180 ANSI-CAMI, open coat.
For more information: Call 1.800.333.5300 (U.S.) or 716.694.4000 (outside U.S.) Fax 716.694.1450 Email us at sales@taberindustries.comVisit us at www.taberindustries.com

455 Bryant StreetNorth Tonawanda, New York 14120 USA

02/03
