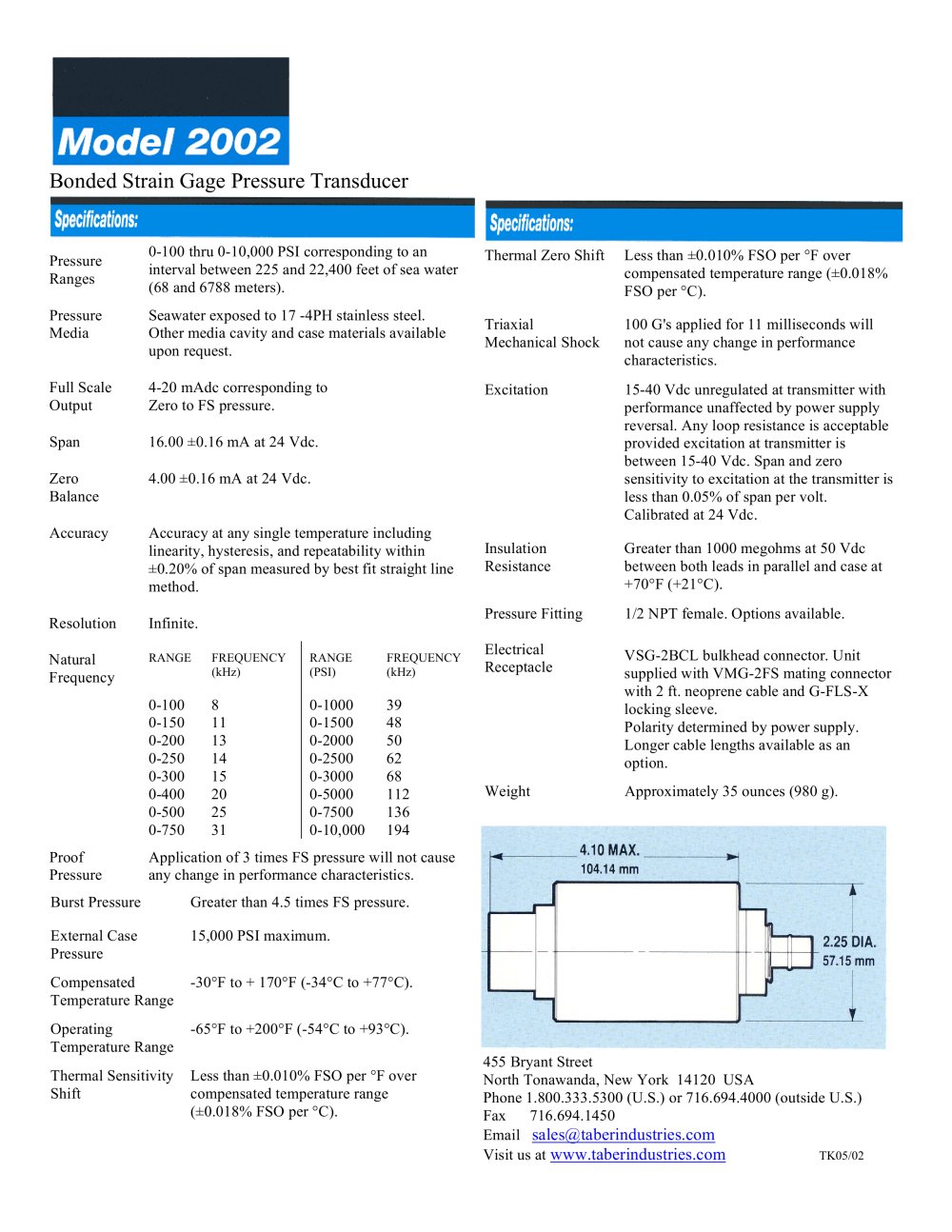

Ocean Submersible/Oceanographic Pressure Transducers Model 2002 - Taber Industries - #2

Bonded Strain Gage Pressure Transducer

Specifications;

0-100 thru 0-10,000 PSI corresponding to an interval between 225 and 22,400 feet of sea water (68 and 6788 meters).

Seawater exposed to 17 -4PH stainless steel. Other media cavity and case materials available upon request.

4-20 mAdc corresponding to Zero to FS pressure.

16.00 ±0.16 mA at 24 Vdc.

4.00 ±0.16 mA at 24 Vdc.

Thermal Zero Shift

Less than ±0.010% FSO per °F over compensated temperature range (±0.018% FSO per °C).

100 G's applied for 11 milliseconds will not cause any change in performance characteristics.

15-40 Vdc unregulated at transmitter with performance unaffected by power supply reversal. Any loop resistance is acceptable provided excitation at transmitter is between 15-40 Vdc. Span and zero sensitivity to excitation at the transmitter is less than 0.05% of span per volt.

Calibrated at 24 Vdc.

Greater than 1000 megohms at 50 Vdc between both leads in parallel and case at

+70°F (+21°C).

1/2 NPT female. Options available.

VSG-2BCL bulkhead connector. Unit supplied with VMG-2FS mating connector with 2 ft. neoprene cable and G-FLS-X locking sleeve.

Polarity determined by power supply. Longer cable lengths available as an option.

Approximately 35 ounces (980 g).

Pressure Ranges

Pressure Media

Triaxial

Mechanical Shock

Full Scale Output

Span

Zero Balance

Accuracy

Excitation

Accuracy at any single temperature including linearity, hysteresis, and repeatability within ±0.20% of span measured by best fit straight line

Insulation Resistance

Pressure Fitting

Electrical Receptacle

Weight

Proof Pressure

Burst Pressure

External Case Pressure

Application of 3 times FS pressure will not cause any change in performance characteristics.

Greater than 4.5 times FS pressure.

15,000 PSI maximum.

-30°F to + 170°F (-34°C to +77°C).

-65°F to +200°F (-54°C to +93°C).

Compensated Temperature Range

Operating Temperature Range

455 Bryant Street

North Tonawanda, New York 14120 USA

Phone 1.800.333.5300 (U.S.) or 716.694.4000 (outside U.S.)

Fax 716.694.1450

Email sales@taberindustries.com

Visit us at www.taberindustries.com TK05/02

Thermal Sensitivity Less than ±0.010% FSO per °F over

Shift

compensated temperature range (±0.018% FSO per °C).
