•1.0

MS33649-4

MS3I02E-I4-2P

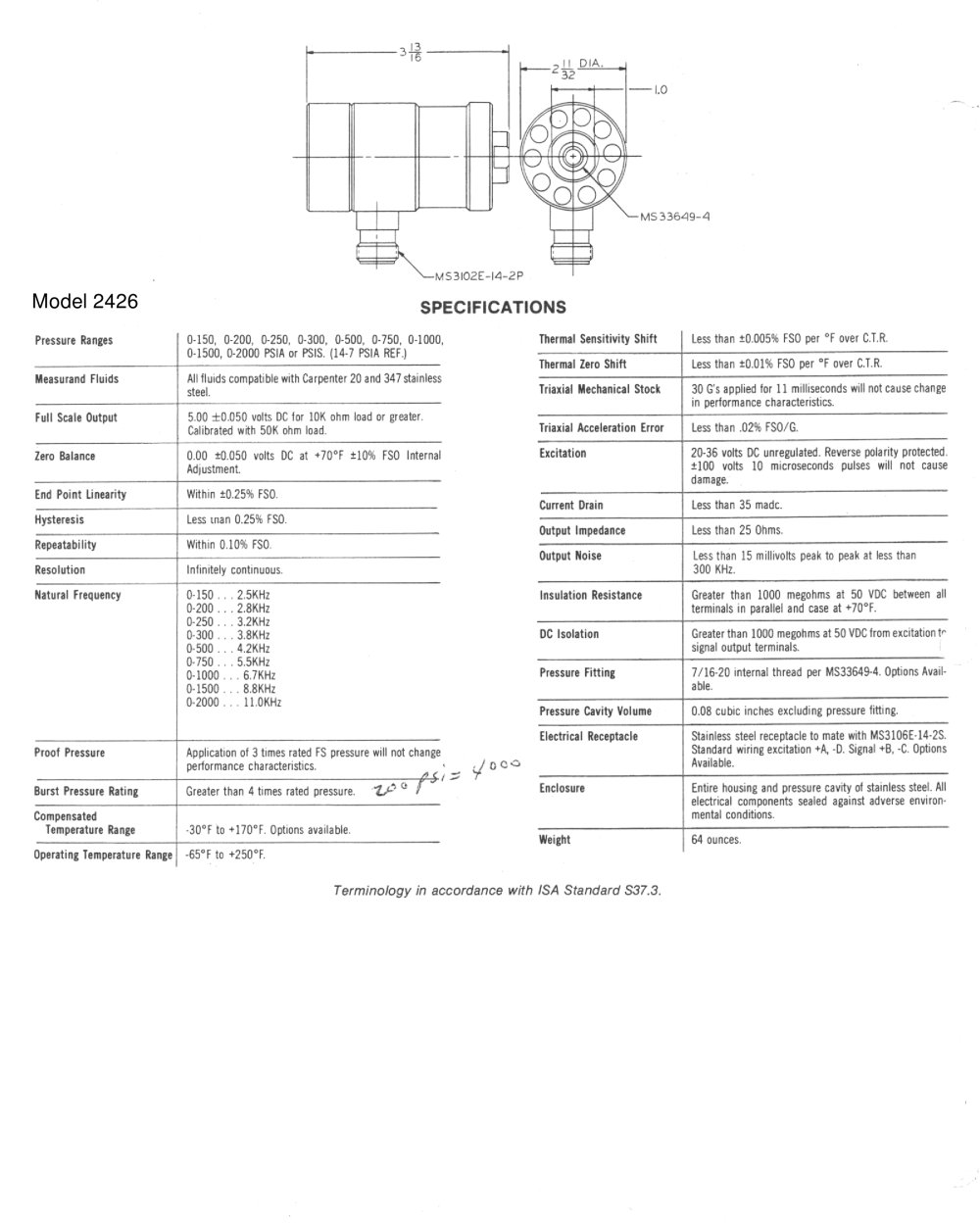

SPECIFICATIONS


	Thermal Sensitivity Shift	Less than ±0.005% FSO per °F over C.T.R.
	Thermal Zero Shift	Less than ±0.01% FSO per °F over C.T.R.
	Triaxial Mechanical Stock	30 G's applied for 11 milliseconds will not cause change in performance characteristics.
	Triaxial Acceleration Error	Less than .02% FSO/G.
	Excitation	20-36 volts DC unregulated. Reverse polarity protected. ±100 volts 10 microseconds pulses will not cause damage.
	Current Drain	Less than 35 made.
	Output Impedance	Less than 25 Ohms.
	Output Noise	Less than 15 millivolts peak to peak at less than 300 KHz.
	Insulation Resistance	Greater than 1000 megohms at 50 VDC between all terminals in parallel and case at +70°F.
	DC Isolation	Greater than 1000 megohms at 50 VDC from excitation tr signal output terminals.
	Pressure Fitting	7/16-20 internal thread per MS33649-4. Options Available.
	Pressure Cavity Volume	0.08 cubic inches excluding pressure fitting.
	Electrical Receptacle	Stainless steel receptacle to mate with MS3106E-14-2S. Standard wiring excitation +A, -D. Signal +B, -C. Options Available.
	Enclosure	Entire housing and pressure cavity of stainless steel. All electrical components sealed against adverse environmental conditions.
	Weight	64 ounces.


	Pressure Ranges	0-150, 0-200, 0-250, 0-300, 0-500, 0-750, 0-1000, 0-1500, 0-2000 PSIA or PSIS. (14-7 PSIA REF.)
	Measurand Fluids	All fluids compatible with Carpenter 20 and 347 stainless steel.
	Full Scale Output	5.00 ±0.050 volts DC for 10K ohm load or greater. Calibrated with 50K ohm load.
	Zero Balance	0.00 ±0.050 volts DC at +70°F ±10% FS0 Internal Adjustment.
	End Point Linearity	Within ±0.25% FSO.
	Hysteresis	Less inan 0.25% FSO.
	Repeatability	Within 0.10% FSO.
	Resolution	Infinitely continuous.
	Natural Frequency	0-150 . . . 2.5KHz 0-200 . . . 2.8KHZ 0-250 .. . 3.2KHz 0-300 . . . 3.8KHz 0-500 . . . 4.2KHz 0-750 . . . 5.5KHz 0-1000 . . . 6.7KHZ 0-1500 . . . 8.8KHz 0-2000 . . . ll.OKHz
	Proof Pressure	Application of 3 times rated FS pressure will not change performance characteristics.
	Burst Pressure Rating	Greater than 4 times rated pressure. ⁰ /
	Compensated Temperature Range	-30°F to +170°F. Options available.
	Operating Temperature Range	-65°F to +250°F.

OC'

Terminology in accordance with ISA Standard S37.3. WARRANTY

Teledyne Taber. herein after designated as the Company, warrants that any part or parts ol the product which, under normal operating conditions in the plant ol the original purchaser thereof, proves defective in material or workmanship within one year from the date of shipment by the Company, as determined by an inspection by the Company, will be repaired or replaced free of charge provided that the original purchaser promptly sends to the Company the defective material, transportation charges prepaid, with notice of the defect and establishes that the product has been properly installed, maintained and operated within the limits of rated and normal usage. Replacement parts will be shipped F.O.B. the Teledyne Taber plant. The terms of this Warranty do not in any way extend to part or parts of the product thereof

which has a life, under normal usage, inherently shorter than the one year indicated above. Said Warranty in respect to replacement of defective parts and any such additional warranty or representation expressly made, are in lieu of all other warranties expressed or implied, including any implied warranty of merchantability, or fitness for any particular purpose.

Warranty specifications and qualitative calibration data, as supplied with each transducer, are based on tests performed on and values obtained with N.B.S. traceable laboratory standards and test equipment of Teledyne Taber.

Teledyne Taber reserves the right to make changes without notice at any time in materials, specifications and models, and to discontinue models.

^TELEDYNE TABER

455 Bryant St., N. Tonawanda, NY. 14120 • Phone: 716-694-4000 • TWX: 710-262-1264
