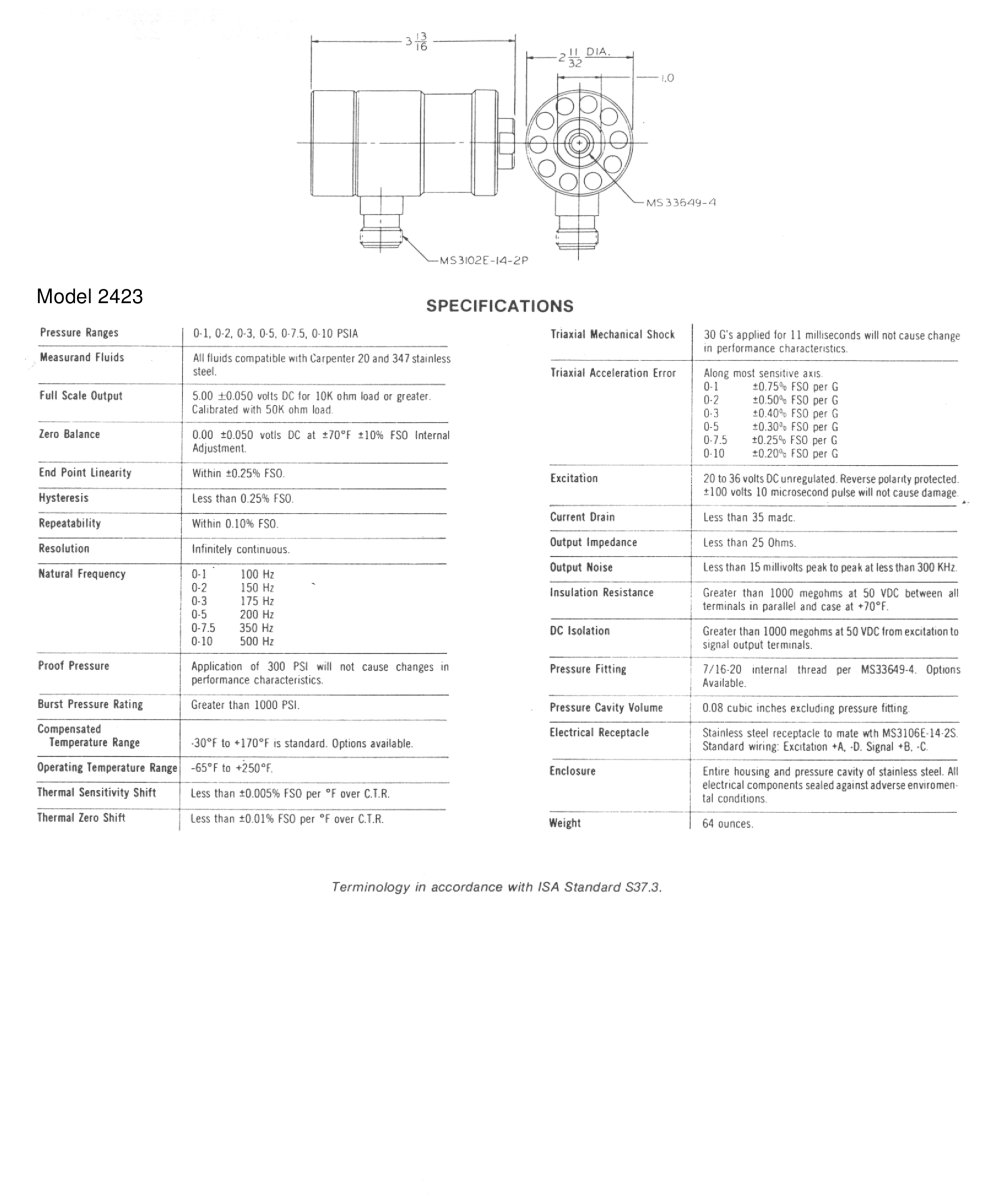

MS3I02FJ-I4-2P

SPECIFICATIONS


Pressure Ranges	0-1, 0-2, 0-3, 0-5, 0-7.5, 0-10 PSIA	Triaxial Mechanical Shock	30 G's applied for 11 milliseconds will not cause change in performance characteristics.
Measurand Fluids	All fluids compatible with Carpenter 20 and 347 stainless steel.
Measurand Fluids		Triaxial Acceleration Error	Along most sensitive axis.
Full Scale Output	5.00 ±0.050 volts DC for 10K ohm load or greater. Calibrated with 50K ohm load		0-1 ±0.75% FSO per G 0-2 ±0.50% FSO per G 0-3 ±0.40% FSO per G
Zero Balance	0.00 ±0.050 votls DC at ±70°F ±10% FSO Internal Adjustment.		0-5 ±0.30% FSO per G 0-7.5 ±0.25% FSO per G 0-10 ±0.20% FSO per G
End Point Linearity	Within ±0.25% FSO.	Excitation	20 to 36 volts DC unregulated Reverse polarity protected.
Hysteresis	Less than 0.25% FSO.		±100 volts 10 microsecond pulse will not cause damage
		Current Drain	Less than 35 made.
Repeatability	Within 0.10% FSO.	Current Drain	Less than 35 made.
		Output Impedance	Less than 25 Ohms.
Resolution	Infinitely continuous.	Output Impedance	Less than 25 Ohms.
		Output Noise	Less than 15 millivolts peak to peak at less than 300 KHz
Natural Frequency	0-1 ' 100 Hz	Output Noise	Less than 15 millivolts peak to peak at less than 300 KHz
	0-2 150 Hz 0-3 175 Hz 0-5 200 Hz	Insulation Resistance	Greater than 1000 megohms at 50 VDC between all terminals in parallel and case at +70°F.
	0-7.5 350 Hz 0-10 500 Hz	DC Isolation	Greater than 1000 megohms at 50 VDC from excitation to signal output terminals.
Proof Pressure	Application of 300 PSI will not cause changes in performance characteristics.	-- Pressure Fitting	7/16-20 internal thread per MS33649-4. Options Available.
Burst Pressure Rating	Greater than 1000 PSI.	Pressure Cavity Volume	0.08 cubic inches excluding pressure fitting
Compensated Temperature Range	-30°F to +170°F is standard. Options available.	Electrical Receptacle	Stainless steel receptacle to mate wth MS3106E-14-2S Standard wiring: Excitation +A, -D. Signal +B, -C.
Operating Temperature Range	-65°F to +250°F.	Enclosure	Entire housing and pressure cavity ol stainless steel. All
Thermal Sensitivity Shift	Less than ±0.005% FSO per °F over C.T.R.		electrical components sealed against adverse enviromen-tal conditions.
Thermal Zero Shift	Less than ±0.01% FSO per °F over C.T.R.	Weight	64 ounces.

Terminology in accordance with ISA Standard S37.3.

Teledyne Taber. herein alter designated as the Company, warrants that any part or parts of the product which, under normal operating conditions in the plant ol the original purchaser thereol. proves detective in material or workmanship within one year from the date ol shipment by the Company, as determined by an inspection by the Company, will be repaired or replaced free ol charge provided that the original purchaser promptly sends to the Company the detective material, t-anspo-'.auon charges prepaid, with notice ol the detect and establishes that the product has been properly installed, maintained ana operated within the limits ot rated and normal usage. Replacement pans will be shipped FOB the Teledyne Taber plant. The terms of tnis Warrant. dc not in any v/ay extend to part or parts ol the product thereof

which has a lite, under normal usage, inherently shorter than the one year indicated above. Said Warranty m respect to replacement of defective parts and any such additional warranty or representation expressly made, are in lieu of all other warranties expressed or implied, including any implied warranty of merchantability, or fitness tor any particular purpose.

Warranty specifications and qualitative calibration data, as supplied with each transducer, are based on tests performed on and values obtained with N 8.S. traceable laboratory standards and test equipment ot Teledyne Taber.

Teledyne Taber reserves the right to make changes without notice at any time in matenals. specifications and models, and to discontinue models

^TELEDYNE TABER

455 Bryant St., N. Tonawanda, N.Y. 14120 • Phone: 716-694-4000 • TWX: 710-262-1264
