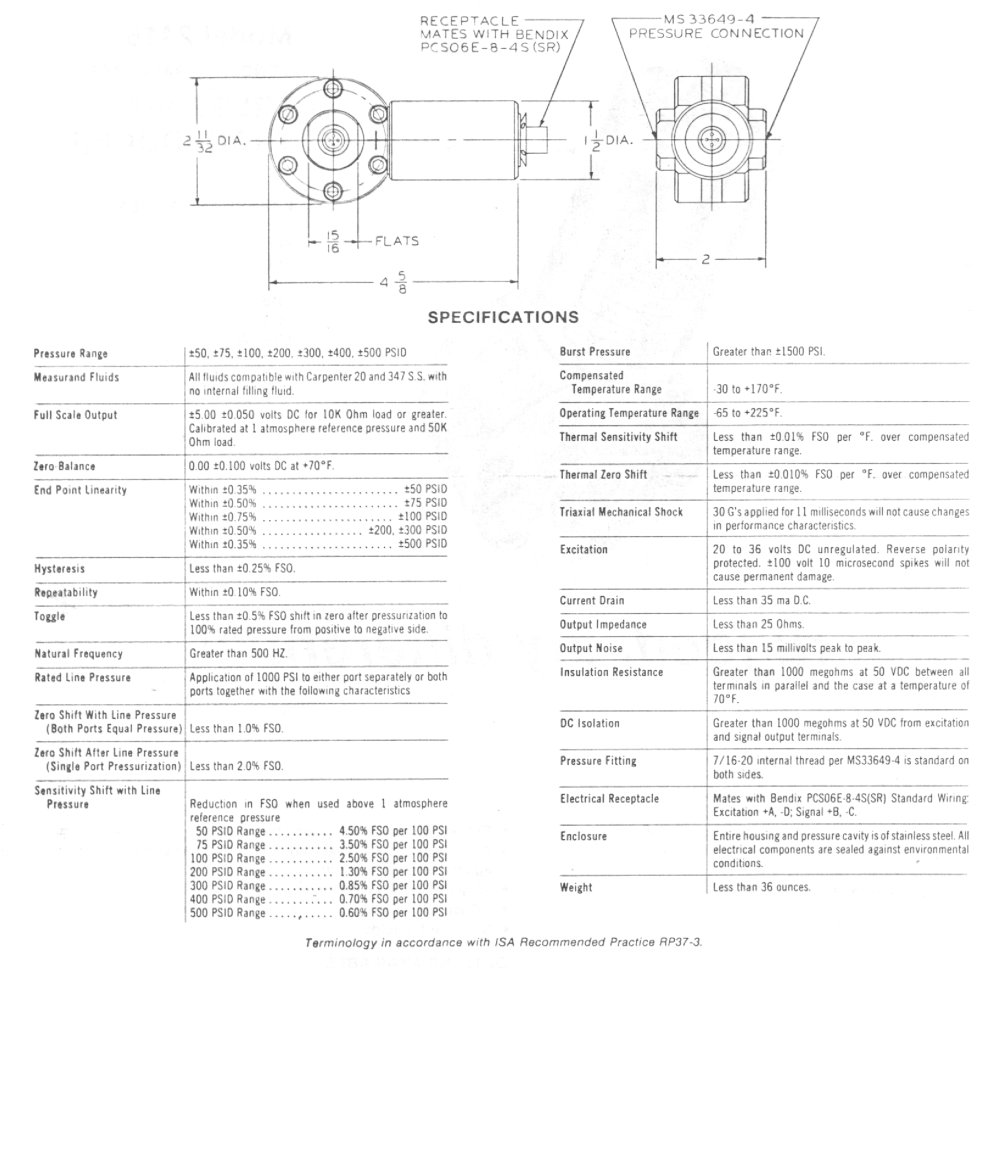

SPECIFICATIONS


	Burst Pressure	Greater than ±1500 PSI.
	Compensated Temperature Range	-30 to +170"F.
	Operating Temperature Range	-65 to +225 °F.
	Thermal Sensitivity Shift	Less than ±0.01% FSO per °F. over compensated temperature range.
	Thermal Zero Shift	Less than ±0010% FSO per °F. over compensated temperature range.
	Triaxial Mechanical Shock	30 G's applied for 11 milliseconds will not cause changes in performance characteristics.
	Excitation	20 to 36 volts DC unregulated. Reverse polarity protected. ±100 volt 10 microsecond spikes will not cause permanent damage.
	Current Drain	Less than 35 ma DC.
	Output Impedance	Less than 25 Ohms.
	Output Noise	Less than 15 millivolts peak to peak.
	Insulation Resistance	Greater than 1000 megohms at 50 VDC between all terminals in parallel and the case at a temperature of 70°F.
	DC Isolation	Greater than 1000 megohms at 50 VDC from excitation and signal output terminals.
	Pressure Fitting	7/16-20 internal thread per MS33649-4 is standard on both sides.
	Electrical Receptacle	Mates with Bendix PCS06E-8-4S(SR) Standard Wiring: Excitation «-A, -D; Signal +B, -C.
	Enclosure	Entire housing and pressure cavity is of stainless steel. All electrical components are sealed against environmental conditions.
	Weight	Less than 36 ounces.

±50. ±75. ±100. ±200. ±300, ±400. ±500 PSIO

All fluids compatible with Carpenter 20 and 347 S.S. with no internal filling fluid.

±5 00 ±0.050 volts DC for 10K Ohm load or greater. Calibrated at 1 atmosphere reference pressure and 50K Ohm load.

0.00 ±0.100 volts DC at -70°F.

Within ±0.35%.......................±50 PSIO

Within ±0 50%....................... ±75 PSIO

Within ±0.75%......................±100 PSIO

Within ±0.50%................. ±200. ±300 PSIO

Within ±0.35%......................±500 PSID

Less than ±0 25% FSO.

Within ±0 10% FSO.

Less than ±0 5% FSO shift in zero after pressunzation to 100% rated pressure from positive to negative side.

Greater than 500 HZ.

Application of 1000 PSI to either port separately or both ports together with the following characteristics

Pressura Range

Measurand Fluids

Full Scale Output

Zero Balance

End Point Linearity

Hysteresis

Repeatability

Toggle

Natural Frequency

Rated Line Pressure

Ztro Shift With Line Pressure (Both Ports Equal Pressure]

Less than 1.0% FSO.

Zero Shift After Line Pressure (Single Port Pressurization)

Less than 2.0% FSO.

Sensitivity Shift with Line Pressure

Reduction in FSO when used above 1 atmosphere reference pressure

50 PSIO Range........... 4.50% FSO per 100 PSI

75 PSID Range........... 3.50% FSO per 100 PSI

100 PSID Range........... 2.50% FSO per 100 PSI

200 PSID Range........... 1 30% FSO per 100 PSI

300 PSID Range........... 0.85% FSO per 100 PSI

400 PSID Range........... 0.70% FSO per 100 PSI

500 PSID Range........... 0.60% FSO per 100 PSI

Terminology in accordance with ISA Recommended Practice RP37-3.

WARRANTY

Warranty m resoect to reoiacement of defective parts and any sucn addit or H warranty or representation exoressiv made, are in lieu of all other warr--" expressed or implied, including any impned warranty ot merchantability, or fitness for any particular purpose

Warranty specifications and qualitative calibration data, as suppled witfl each transducer, are based on tests performed on and values obtained win N.B S traceable laboratory standards and test equipment of Teiedyne Tacer

TELEDYNE TABER RESERVES THE RIGHT TO MAKE CHANGES WITHOUT NOTICE AT ANY TIME ,N MATERIALS. SPECIFICATIONS ANT MODELS AND ALSO TO DISCONTINUE MODELS

Teiedyne Tacer. herein alter designated as the Company, warrants that any part or parts ol the product which under normal operating conditions in the plant of the original purchaser thereof, proves selective m material or workmansnio w<thm one year from the date of shipment by the Company, as determined Dy an inspection by the Comoany. will be recaired or replaced free of charge orovided that the original purchaser promptly sends to the Company the detective materal. transportation charges prepaid, with notice of the delect and establishes that the product has been propei'y installed, maintained and operated within the limits of rated and normal usage Reoiacement parts will be shipped F O B the Teiedyne Taber plant The terms of this Wtr'anty do not :n any way extend to part or parrs ot the product thereof which nas a Ufa, under normal usage, inherently shorter rh.w the one year indicated above Said
