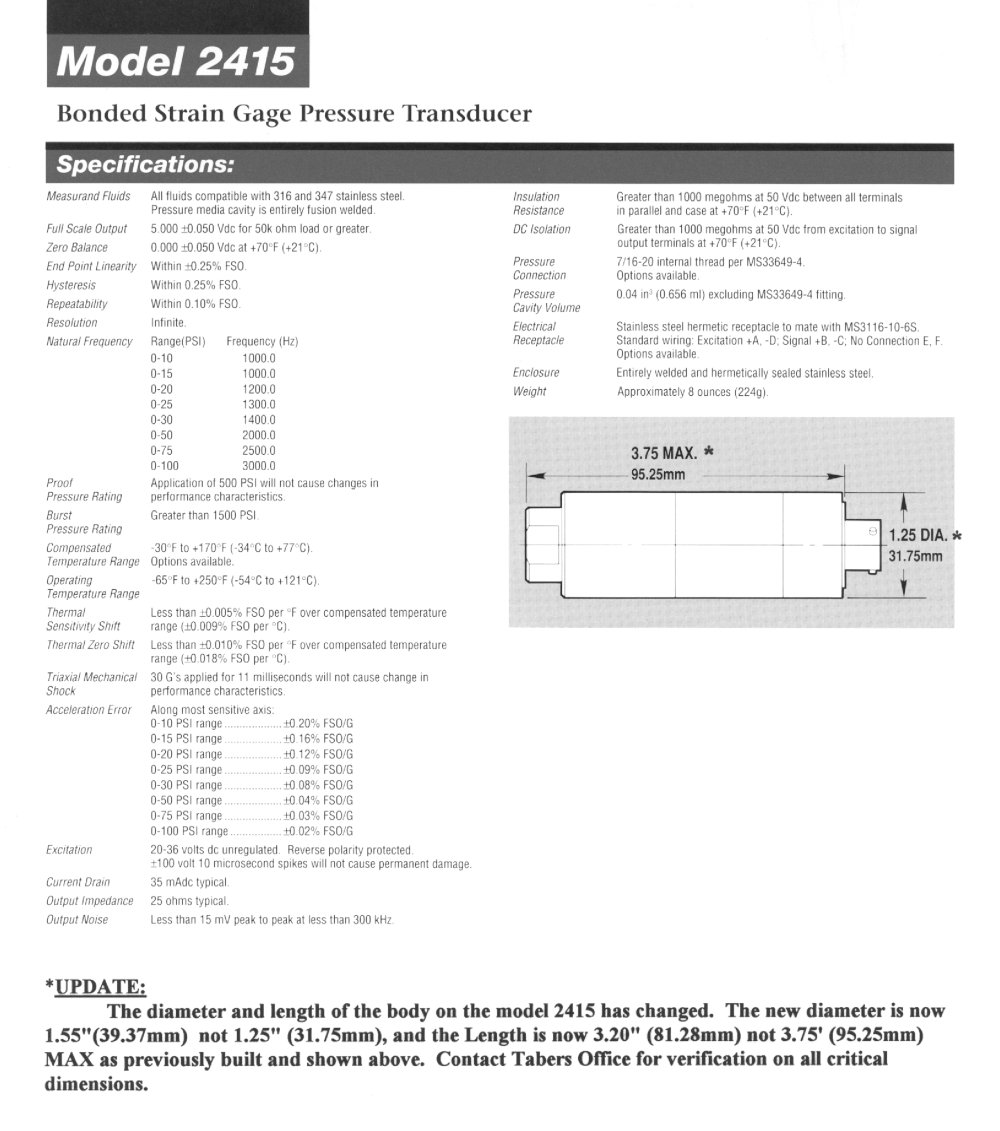

Discontinued Transducer Model 2415 - Taber Industries - #1

Bonded Strain Gage Pressure Transducer

All fluids compatible with 316 and 347 stainless steel. Pressure media cavity is entirely fusion welded.

5.000 ±0.050 Vdc for 50k ohm load or greater.

0.000 ±0.050 Vdc at +70' F (+21 C).

Within ±0.25% FSO.

Within 0.25% FSO.

Within 0.10% FSO.

Infinite.

Range(PSI) Frequency (Hz)

Insulation Greater than 1000 megohms at 50 Vdc between all terminals

Resistance in parallel and case at +70°F (+21-C).

DC Isolation Greater than 1000 megohms at 50 Vdc from excitation to signal output terminals at +70°F (+21 °C).

Pressure 7/16-20 internal thread per MS33649-4.

Connection Options available.

Pressure 0.04 in³ (0.656 ml) excluding MS33649-4 fitting. Cavity Volume

Electrical Stainless steel hermetic receptacle to mate with MS3116-10-6S.

Receptacle Standard wiring: Excitation +A. -D; Signal +B. -C; No Connection E, F. Options available.

Enclosure Entirely welded and hermetically sealed stainless steel.

Weight Approximately 8 ounces (224g).

Application of 500 PSI will not cause changes in performance characteristics.

Greater than 1500 PSI.

-30°F to +170°F (-34 C to +77°C). Options available.

-65°F to +250°F (-54^UC to +121' C).

Less than ±0.005% FSO per F over compensated temperature range (±0.009% FSO per °C).

Less than ±0.010% FSO per F over compensated temperature range (±0.018% FSO per°C).

30 G's applied for 11 milliseconds will not cause change in performance characteristics.

Along most sensitive axis:

0-10 PSI range...................±0.20% FSO/G

0-15 PSI range...................±0.16% FSO/G

0-20 PSI range...................±0.12% FSO/G

0-25 PSI range...................±0.09% FSO/G

0-30 PSI range...................±0.08% FSO/G

0-50 PSI range...................±0.04% FSO/G

0-75 PSI range...................±0.03% FSO/G

0-100 PSI range.................±0.02% FSO/G

20-36 volts dc unregulated. Reverse polarity protected.

±100 volt 10 microsecond spikes will not cause permanent damage.

35 mAdc typical.

25 ohms typical.

Less than 15 mV peak to peak at less than 300 kHz.

Teledyne Taber. herein after designated as the Company, warrants that any part or parts ot the product which, under normal operating conditions in the plant ot the original purchaser thereof, proves defective in material or workmanship within one year from the date of shipment by the Company, as determined by an inspection by the Company, will be repaired or replaced free of charge provided that the original purchaser promptly sends to the Company the defective material, transportation charges prepaid, with notice of the defect and establishes that the product has been properly installed, maintained and operated within the limits of rated and normal usage. Replacement parts will be shipped F.O.B. the Teledyne Taber plant. The terms of this Warranty do not in any way extend to part or parts of the product thereof which has a life, under normal usage, inherently shorter than the one year indicated above. Said Warranty in respect to replacement of defective parts and any such additional warranties express or implied, including any implied warranty of merchantability, or fitness for any particular purpose.

Warranty specifications and qualitative calibration data, as supplied with each transducer, are based on tests performed on and values obtained with N.I.S.T. traceable laboratory standards and test equipment of Teledyne Taber.

Teledyne Taber reserves the right to make changes without notice at any time in materials, specifications and models, and also to discontinue models.
