| 2 | ||||||||||||||||||||||||||||||||||||||

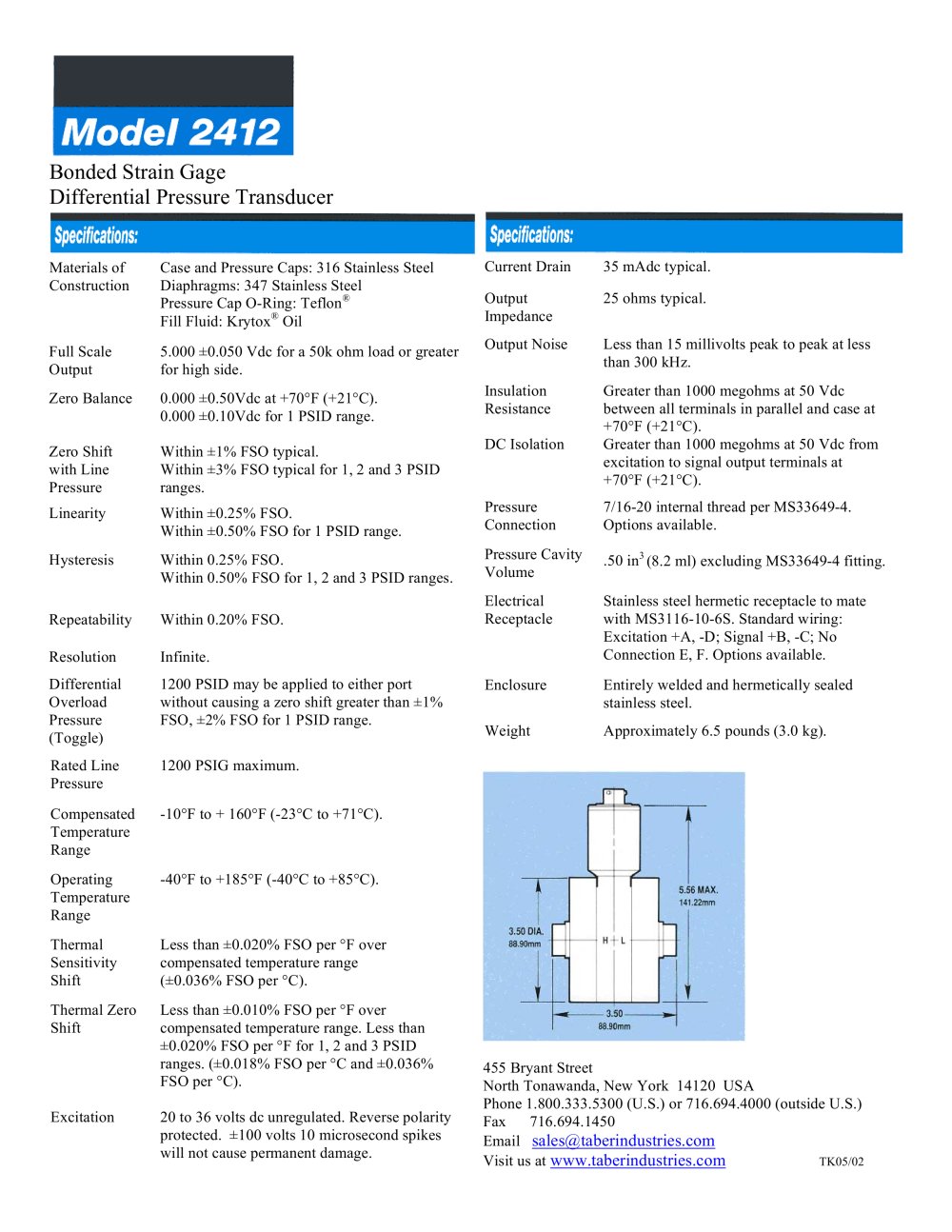

| Bonded Strain Gage Differential Pressure Transducer | ||||||||||||||||||||||||||||||||||||||
| Specifications; | ||||||||||||||||||||||||||||||||||||||
| Specif/cations; | ||||||||||||||||||||||||||||||||||||||
| Current Drain Output Impedance Output Noise | 35 mAdc typical. 25 ohms typical. | |||||||||||||||||||||||||||||||||||||
| Materials of Construction | Case and Pressure Caps: 316 Stainless Steel Diaphragms: 347 Stainless Steel Pressure Cap O-Ring: Teflon® Fill Fluid: Krytox® Oil 5.000 ±0.050 Vdc for a 50k ohm load or greater for high side. 0.000 ±0.50Vdc at +70°F (+21°C). 0.000 ±0.10Vdc for 1 PSID range. Within ±1% FSO typical. Within ±3% FSO typical for 1, 2 and 3 PSID ranges. Within ±0.25% FSO. Within ±0.50% FSO for 1 PSID range. Within 0.25% FSO. Within 0.50% FSO for 1, 2 and 3 PSID ranges. Within 0.20% FSO. Infinite. 1200 PSID may be applied to either port without causing a zero shift greater than ±1% FSO, ±2% FSO for 1 PSID range. 1200 PSIG maximum. | |||||||||||||||||||||||||||||||||||||
| Less than 15 millivolts peak to peak at less than 300 kHz. Greater than 1000 megohms at 50 Vdc between all terminals in parallel and case at +70°F (+21°C). Greater than 1000 megohms at 50 Vdc from excitation to signal output terminals at +70°F (+21°C). 7/16-20 internal thread per MS33649-4. Options available. .50 in3 (8.2 ml) excluding MS33649-4 fitting. Stainless steel hermetic receptacle to mate with MS3116-10-6S. Standard wiring: Excitation +A, -D; Signal +B, -C; No Connection E, F. Options available. Entirely welded and hermetically sealed stainless steel. Approximately 6.5 pounds (3.0 kg). | ||||||||||||||||||||||||||||||||||||||
| Full Scale Output Zero Balance | ||||||||||||||||||||||||||||||||||||||
| Insulation Resistance DC Isolation | ||||||||||||||||||||||||||||||||||||||
| Zero Shift with Line Pressure Linearity | ||||||||||||||||||||||||||||||||||||||
| Pressure Connection Pressure Cavity Volume Electrical Receptacle | ||||||||||||||||||||||||||||||||||||||
| Hysteresis | ||||||||||||||||||||||||||||||||||||||
| Repeatability Resolution Differential Overload Pressure (Toggle) Rated Line Pressure Compensated Temperature Range Operating Temperature Range Thermal Sensitivity Shift Thermal Zero Shift | ||||||||||||||||||||||||||||||||||||||
| Enclosure Weight | ||||||||||||||||||||||||||||||||||||||
| -10°F to + 160°F (-23°C to +71°C). | ||||||||||||||||||||||||||||||||||||||
| -40°F to +185°F (-40°C to +85°C). | ||||||||||||||||||||||||||||||||||||||
| Less than ±0.020% FSO per °F over compensated temperature range (±0.036% FSO per °C). Less than ±0.010% FSO per °F over compensated temperature range. Less than ±0.020% FSO per °F for 1, 2 and 3 PSID ranges. (±0.018% FSO per °C and ±0.036% FSO per °C). 20 to 36 volts dc unregulated. Reverse polarity protected. ±100 volts 10 microsecond spikes will not cause permanent damage. | ||||||||||||||||||||||||||||||||||||||
| 455 Bryant Street North Tonawanda, New York 14120 USA Phone 1.800.333.5300 (U.S.) or 716.694.4000 (outside U.S.) Fax 716.694.1450 Email sales@taberindustries.com | ||||||||||||||||||||||||||||||||||||||
| Excitation | ||||||||||||||||||||||||||||||||||||||
| Visit us at www.taberindustries.com TK05/02 | ||||||||||||||||||||||||||||||||||||||
