Bonded Strain Gage Differential Pressure Transducer

High Differential Overload Pressure High Line Pressure Capability

Pressure Ranges:

Features:


	PSID	BAR
	0-2	0-138m
	0-3	0-207m
	0-5	0-345m
	0-10	0-689m
	0-15	0-1.03
	0-20	0-1.38
	0-25	0-1.72
	0-30	0-2.07
	0-50	0-3.45
	0-75	0-5.17
	0-100	0-6.89
	0-150	0-10.3
	0-200	0-13.8
	0-250	0-17.2
	0-300	0-20.7
	0-400	0-27.6
	0-500	0-34.5

All austenitic materials -case and wetted cavity.

Removable pressure caps facilitate inspection and cleaning of pressure media cavity. 1200 PSI differential overload pressure. True differential pressure measurement.

Pressure fitting per MS33656-4. Internal or external shunt. Special electrical receptacles.

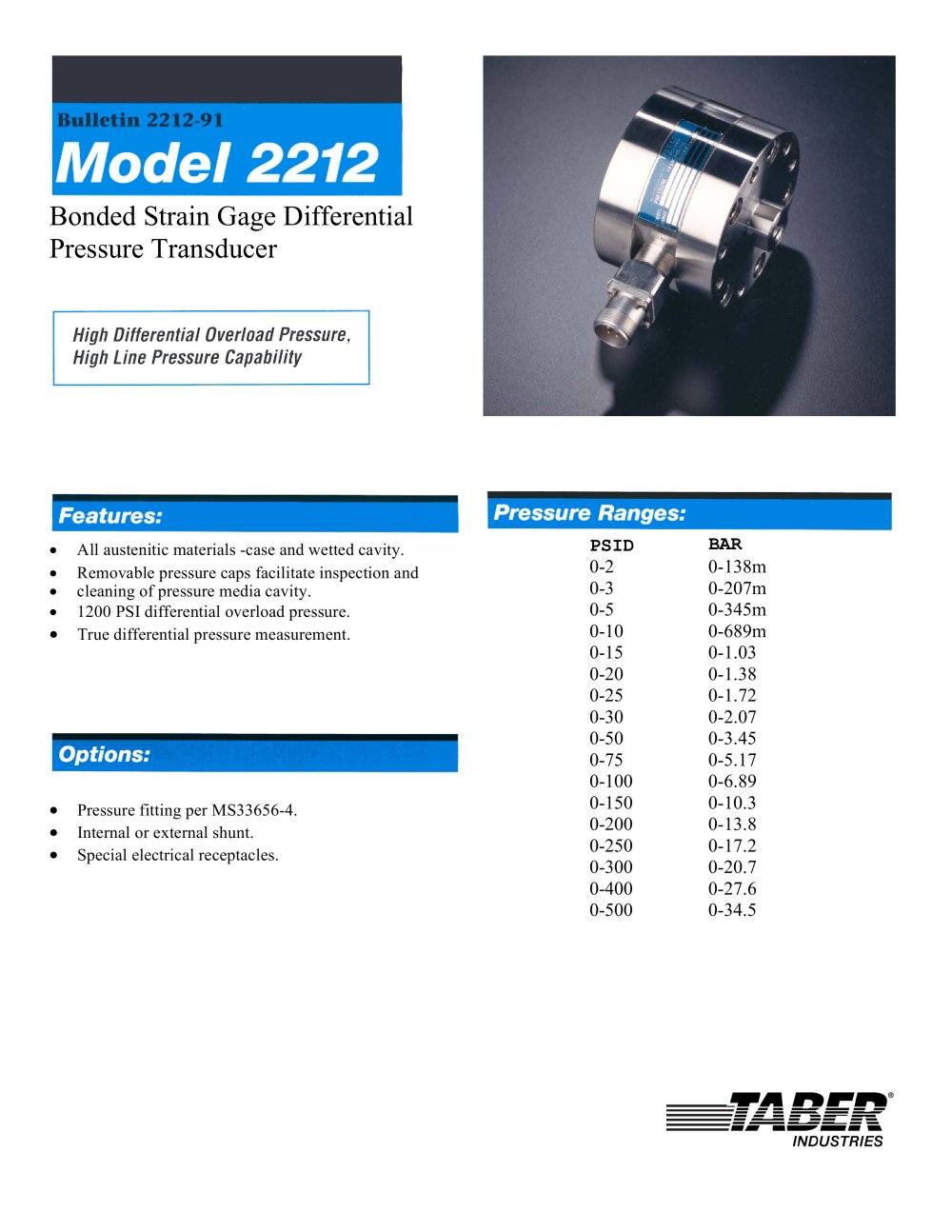

Differential Pressure Measurement Model 2212 - Taber Industries - #1
