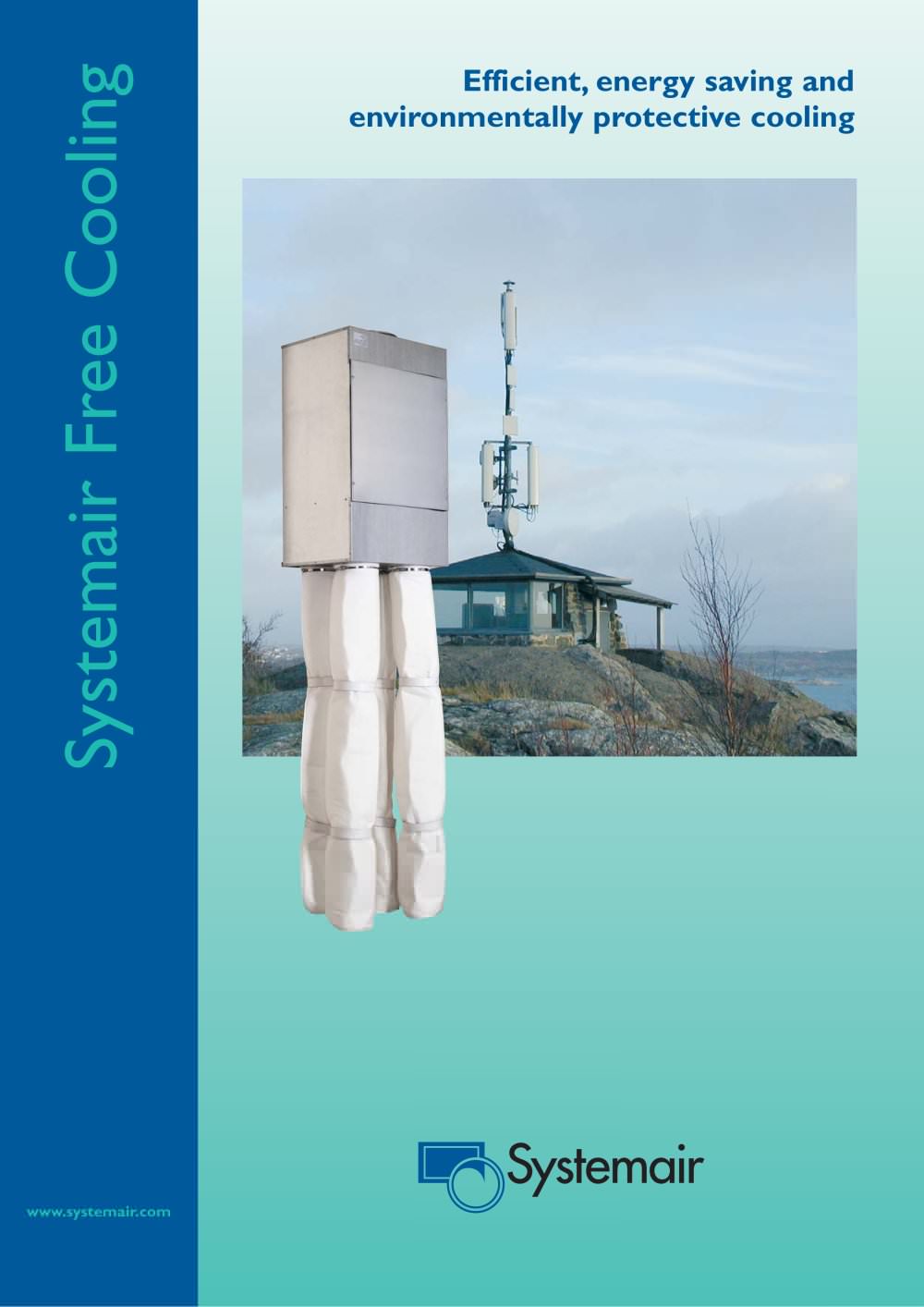

Systemair Free Cooling www.systemair.com >

The correct cooling all the time A room temperature sensor controls the air volume stepplessly in regards to the temperature.The fans are efficient with a high coefficient of utilization and low power consumption.The result is that the air inside the container maintains a tem- perature,which 1.5 m above the floor,is maximum 2-5K higher thanthe outside air.The service is easy,thefilters areeasily accessible,and the time between filter changesis long and does not require any specialiststo perform.A new generation of mobile phonesneed new masts with small cabinets. Bigger already existing...

Open the catalog to page 2

FTVD 2010 230 AC Designed for mounting against an outside wall.A wall sleeve connects the supply air unit with a distribution (plenum) box located on the inside of the external wall. Contents 1 pc supply air fan with an aluminium profile frame, sturdy plastic corners and coated side panels of galvanized sheet-steel.Roof and outside rain cov- ers.The panels are lined with 20 mm acoustic and condensation insulation.1 pc wall lead through and distribution box for5 pcs of supply air filter hoses F5-160-1500Օ5 pcs hose clamps,160 mm 5 pcs F5-160-1500 filter bags 蕕1 pc plastic hose for filter...

Open the catalog to page 5

Test mode Damper During normal operation,should the func- tion button be pressed in for about 10 seconds the four step test sequence starts. Display The damper has 4 function settings. Alarm and operation indicators The display shows the software version when the power is first connected.Normally the indoor and outdoor tem-peratures are shown.At the pressing of the Function button,the set value,limit setting for high temperature value,alarm list,service stop and test mode can be seen. Connections for T08: Direct connec-tion to TCP/IP (using the correct variant). Light emitting diode...

Open the catalog to page 7

MCAP MCAP Active cooling Active cooling > Bridges for communication Bridges for communication > 230VAC Alarm outputMains supply 24V Smoke detectorAlt. smoke detector > 1 2 3 FWD-105/A Transformer 230VAC/24VDC>50mAUtstrm 403938373635 -+ > External GSM alarm EKKX4x1x0,5 External sensorRoom sensor Active cooling Heater/fan Damper Filter guard 12 230V M M >

Open the catalog to page 10

Room sensorExternal sensorFilter guard External GSM alarm > Room sensorExternal sensorFilter guard External GSM alarm > 230V 230V MM M Alt. smoke detector 230V AC Alt. smoke detector 1 1 23 3 Alarm output > 1 2 3 FWD-105/A Mains supply > 14LN 13121234567889910101111 HEAT/FAN AC.DAMPERDAMPER230VNCCNOLLLLNNLLN +24VDC - 4241403938373635343332 DX coolingDX coolingDamper 230V ACHeater/Fan >
