Smoke extract fans
12Pages

Catalog excerpts

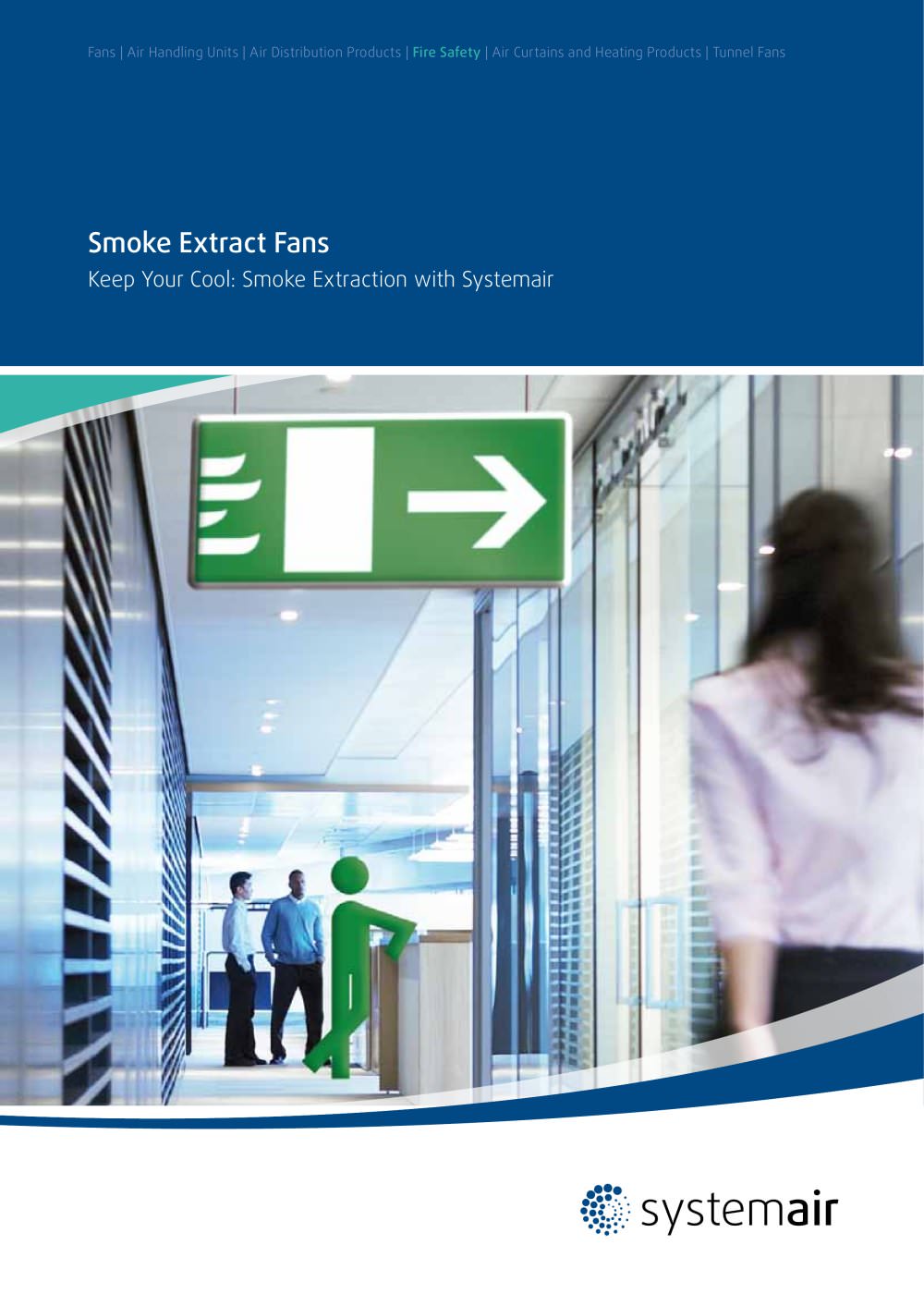

Open the catalog to page 1

systemair Disclose the secret of fresh air! Since 1974 Systemair cares for the purity of an essential resource. Today Systemair is one of the leading ventilation companies worldwide. A success story, which started in Skinnskatteberg, Sweden, with the invention of the inline duct fan. This invention revolutionised the ventilation world. Since then the company has continuously advanced and now offers a comprehensive range of products for all ventilation requirements. The experts of Systemair know the conditions and see the point whatever you need - the ventilation concept of a shopping...

Open the catalog to page 2

VEAB is the leading European manufacturer of electric duct heaters. Production of heating and cooling coils, electric and water based. Germany and distribution center. Production facility for fans and modular air handling units, spe- cialized on engineered products Production of air handling units products and EN certified fire smoke extract fans, Production of air handling units. handling units with energy recovery systems. Kuala Lumpur, Malaysia Manufacturing of duct fans and heat exchangers used in North American market.

Open the catalog to page 3

systemair Smoke extract fans for every requirement Smoke extraction of buildings requires precise planning and customised concepts. the range. Systemair smoke extract fans include the following temperature classes: exhaust air with high temperatures, for parking garages and tunnel ventilation. Systemair’s comprehensive range of products offers suitable solutions for every requirement: centrifugal fans and axial fans for roof, duct or wall mounting. Performance range from 500 up to 400.000 m³/h. Systemair smoke extract fans are approved for smoke extraction in case of fire as well as for...

Open the catalog to page 4

systemair 3:2002-06; continued compliance is monitored by TÜV Süd. The EU Declaration of Conformity is available for you to download at www.systemair.de Mechanical smoke extraction During a fire, smoke and fire gases spread through the entire building. It is therefore essential that buildings are constructed to prevent the expansion of smoke and fire in case of fire. Evacuation routes as well as Wall and Duct Fans firefighting routes for the fire-services have to be kept clear of smoke. Mechanical exhaust systems reduce the risk factors in case of fire. They extract the smoke and heat from...

Open the catalog to page 5

systemair Smoke Extract Centrifugal Fans Duct Fan MUB/F F400 - 400°C/120 min. • Versatile installation and assembly variants - Installation either inside or outside the fire zone without additional insulation - Can be installed vertical or horizontal - Suitable for indoor or outdoor installation • Choice of exhaust direction; it can be modified on site • Backward curved impellers, manufactured from galvanized steel • The casing consists of a frame, manufactured from profiled steel, 4 double skin panels from galvanized steel and 20 mm mineral wool insulation inside • There is a choice of...

Open the catalog to page 6

systemair Smoke Extract Centrifugal Fans Roof Fan DVV F400 - 400°C/120 min. F600 - 600°C/120 min. • Temperature of transported air up to 120°C in continuous operation • Backward curved impellers; F400 made of galvanized steel sheet; F600 made of stainless steel • Seawater resistant aluminium casing, base plate and inlet nozzle from galvanized steel sheet • Encapsulated, insulated motor, placed outside the air flow; ISO class F; enclosure class IP54 • Motor cooling via fresh air duct • Installation above heated rooms; also applicable above unheated rooms with the use of FSL flaps...

Open the catalog to page 7

systemair Smoke Extract Axial Fans AXC...(B) F300 - 300°C/120 min. • Fan size from 315 to 1.600 mm • Casing made of hot-dip galvanized steel • Aerofoil impeller with adjustable pitch angle for maximum efficiency • Terminal box in IP65 mounted at the outside of the casing for easy wiring • Motors IP54, insulation class H, in accordance with EN 60034-5/IEC 85 • DIBt approval Z-78.11-175, Berlin • Wide range of accessories • Air flow up to 212.000 m³/h AXC...(B)-G F300 - 300°C/120 min. • Fan size from 315 to 1.600 mm • Casing made of hot-dip galvanized steel • Aerofoil impeller with adjustable...

Open the catalog to page 8

systemair Smoke Extract Axial Fans AXC...(F) F400 - 400°C/120 min. • Fan size from 315 to 1.600 mm • Casing made of hot-dip galvanized steel • Aerofoil impeller with adjustable pitch angle for maximum efficiency • Terminal box in IP65 mounted at the outside of the casing for easy wiring • Motors IP54, insulation class H, in accordance with EN 60034-5/IEC 85 • DIBt approval Z-78.11-190, Berlin • Wide range of accessories • Air flow up to 212.000 m³/h AXC...(F)-G F400 - 400°C/120 min. • Fan size from 315 to 1.600 mm • Casing made of hot-dip galvanized steel • Aerofoil impeller with adjustable...

Open the catalog to page 9

systemair Smoke Extract Jet Fans Jet Fans AJR / AJ8...(B) F300 - 300°C/120 min. • Fan size from 315 to 400 mm • Aerofoil impeller with adjustable pitch angle for maximum efficiency • Casing manufactured from galvanized sheet steel, completely sound insulated • Motors IP54, insulation class H (smoke extract); Motors IP55, insulation class F (CO-exhaust), according to EN 60045-5/IEC 85 • Terminal box for easy access at the outer fan casing, min. IP66 • Fully reversible blade settings available on request • Removable fan module also after installation for easy maintenance • Two design...

Open the catalog to page 10

systemair Special Applications: Wall Mounted Axial Fans AXC...-P (55°C) AXC...(B)-P F300 / EN 12101-3 certified, CE labelled. Monitored by TÜV Süd. HA...(F)-P F400 / EN 12101-3 certified, CE labelled. Monitored by TÜV Süd. • Square wall plate with inlet cone manufactured from steel, hot dip galvanised upon completion. With protection guard. • IEC- standard or smoke extract motors, single or two speed • Terminal box supplied loose AXC...-P • Available up to impeller diameter 1.000 mm • AXC: Adjustable aluminium impellers HA: Welded steel impellers Axial Roof Fans (exhaust and supply fans)...
