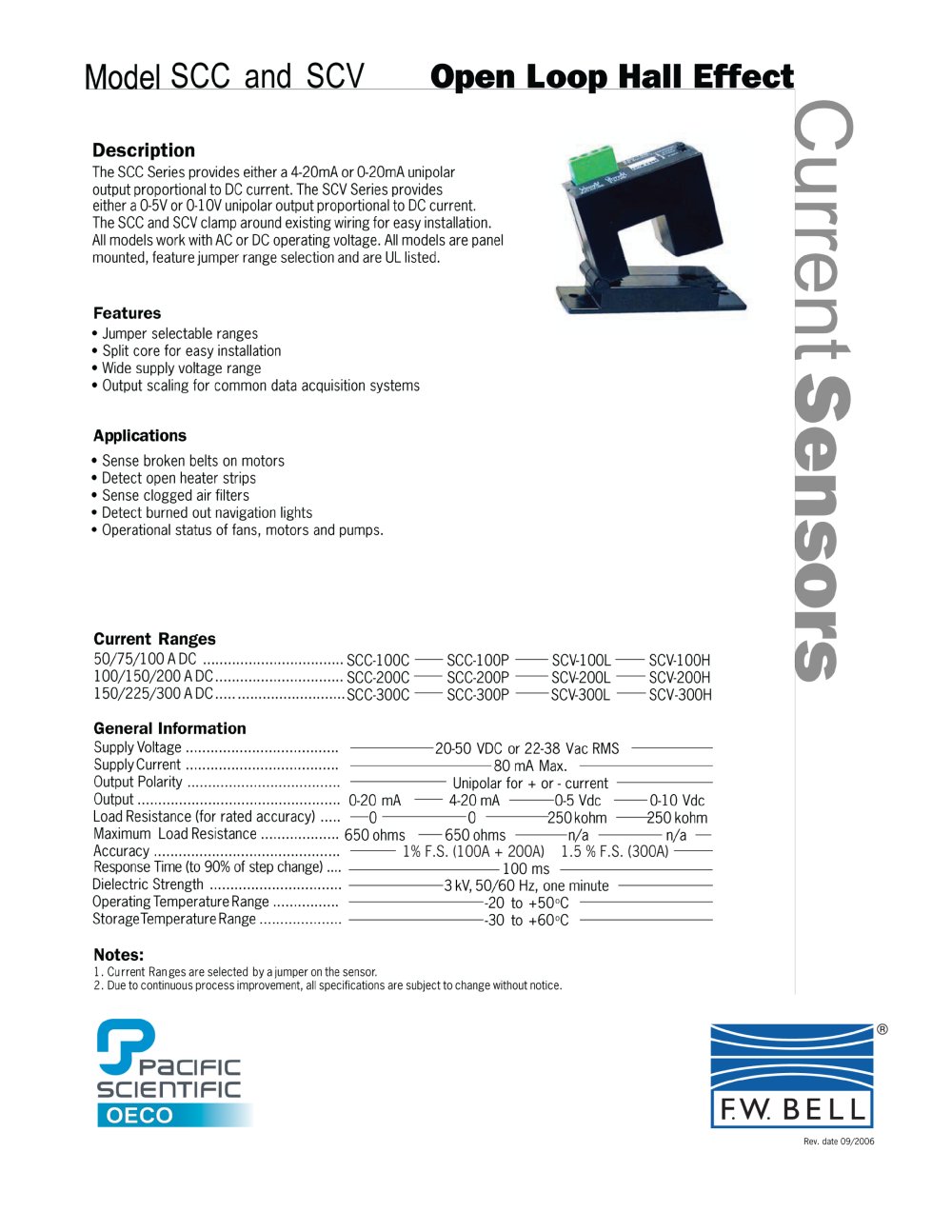

Model SCC and SCV Open Loop Hall Effect Description The SCC Séries provides either a 4-20mA or 0-20mA unipolar output proportional to DC current. The SCV Séries provicies either a 0-5V or 0-1OV unipolar output proportional to DC current. The SCC and SCV clamp around existing wiring for easy installation. AH models work with AC or DC operating voltage. AH models are panel mounted, feature jumper range sélection and are UL listed. Features • Jumper selectable ranges • Split core for easy installation • Wide supply voltage range • Output scaling for common data acquisition Systems Applications • Sensé broken belts on motors • Detect open heater strips • Sensé clogged air filters • Detect burned out navigation lights • Operational status of fans, motors and pumps. Current Ranges 50/75/100 A DC ..................................SCC-100C-SCC-100P-SCV-100L-SCV-100H 100/150/200 A DC...............................SCC-200C-SCC-200P-SCV-200L-SCV-200H 150/225/300 A DC...............................SCC-300C - -SCC-300P-SCV-300L-SCV-300H General Information Supply Voltage..................................... -20-50 VDC or 22-38 Vac RMS - SupplyCurrent..................................... -80 mA Max. - Output Polarity..................................... -Unipolar for + or - current - Output................................................. 0-20 mA -4-20 mA -0-5 Vdc -0-10Vdc Load Résistance (for rated accuracy)..... —0 -0 -250kohm -250kohm Maximum Load Résistance................... 650 ohms —650 ohms -n/a -n/a — Accuracy............................................. -1% F.S. (100A + 200A) 1.5 % F.S. (300A)- Response Time (to 90% of step change)....-100 ms - Dielectric Strength................................-3 kVT 50/60 Hz, one minute - Operating Température Range................ --20 to+50°C - StorageTempérature Range....................--30 to +60°C - Notes: 1. Current Ranges are selected by a jumper on the sensor. 2. Due to continuous process improvement, ail spécifications are subject to change without notice. rp sciEirriFic Rev. date 09/2006
