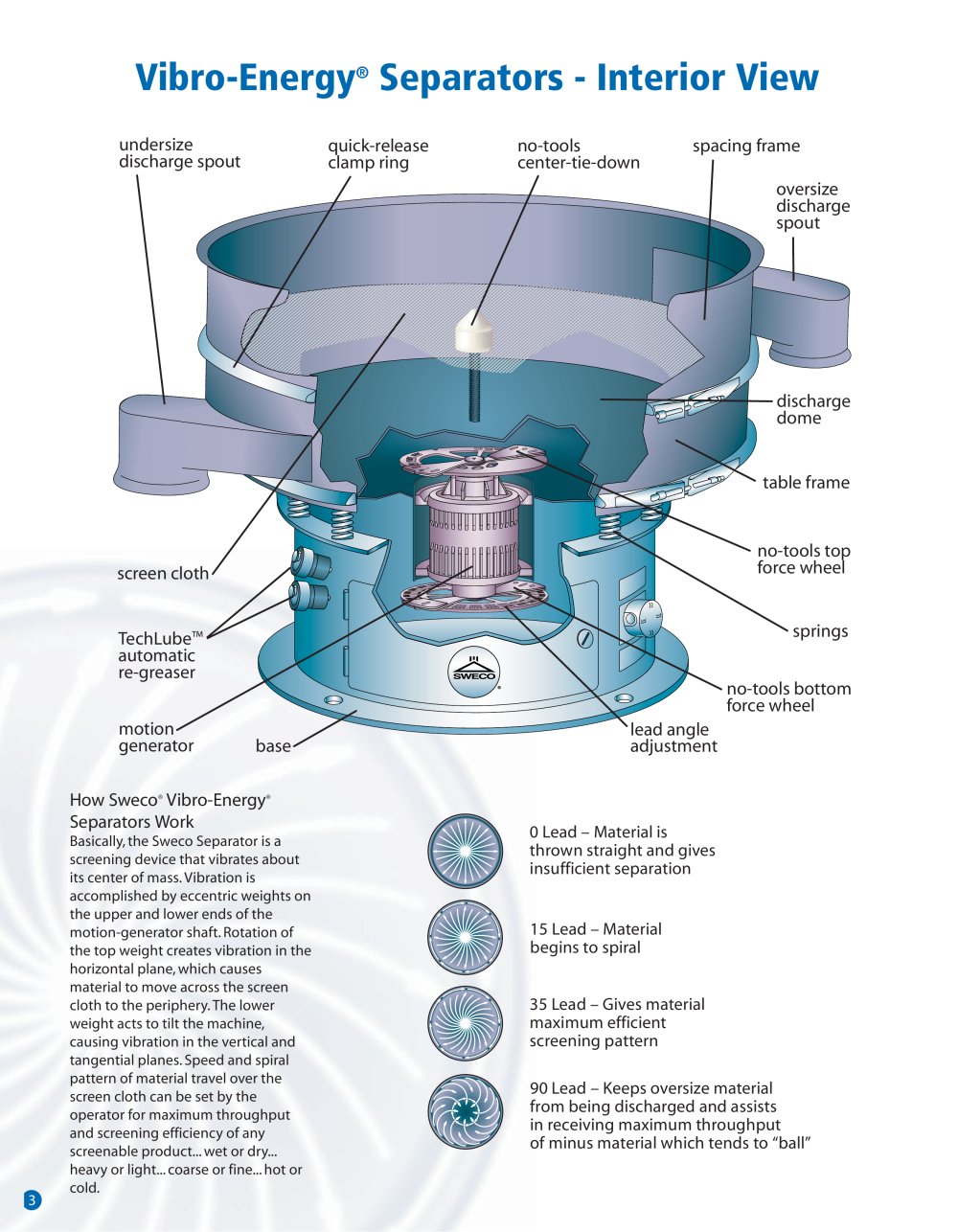

Vibro-Energy
® no-toolscenter-tie-down
screen clothTechLube
™ automaticre-greaser
quick-releaseclamp ringspacing frameundersizedischarge spout
dischargedome
motiongeneratorbase
oversizedischarge
spout
no-tools topforce wheeltable framespringsno-tools bottomforce wheellead angleadjustment
How Sweco
® Vibro-Energy
® Separators Work
Basically, the Sweco Separator is a
screening device that vibrates about
its center of mass. Vibration is
accomplished by eccentric weights on
the upper and lower ends of the
motion-generator shaft. Rotation of
the top weight creates vibration in the
horizontal plane, which causes
material to move across the screen
cloth to the periphery. The lower
weight acts to tilt the machine,
causing vibration in the vertical and
tangential planes. Speed and spiral
pattern of material travel over the
screen cloth can be set by the
operator for maximum throughput
and screening efficiency of any
screenable product... wet or dry...
heavy or light... coarse or fine... hot or
cold. 0 Lead – Material isthrown straight and gives
insufficient separation 15 Lead – Materialbegins to spiral 35 Lead – Gives materialmaximum efficient
screening pattern 90 Lead – Keeps oversize materialfrom being discharged and assists
in receiving maximum throughput
of minus material which tends to “ball”
3
